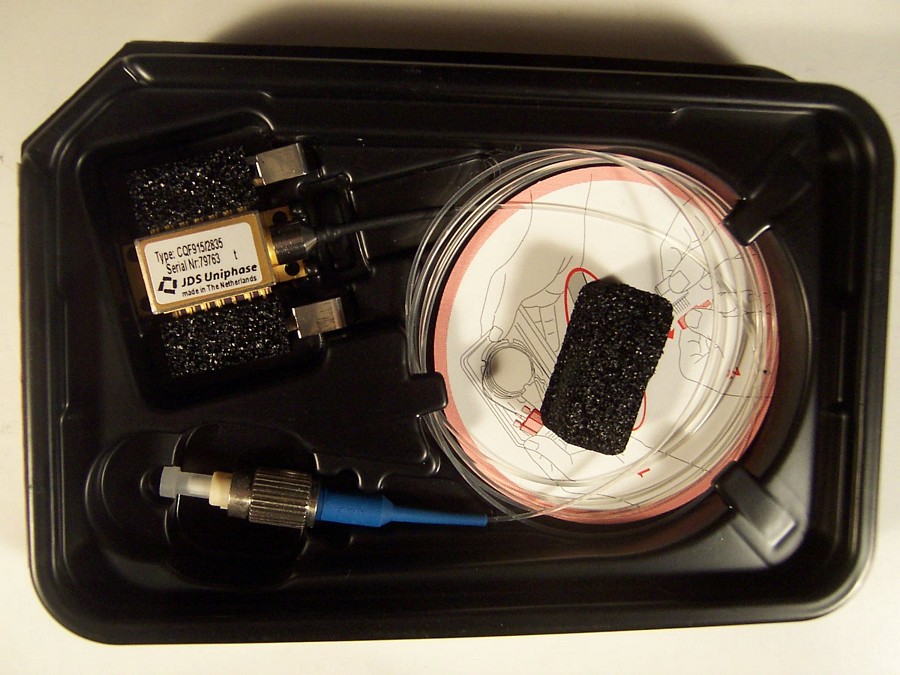

1547.094nm, 1551.044 or 1551.129nm, 1554.329 or 1554.41nm, 1557.117 or 1557.657nm 14-pin DFB laser. 10dBm peak. JDS model: CQF915/28xx

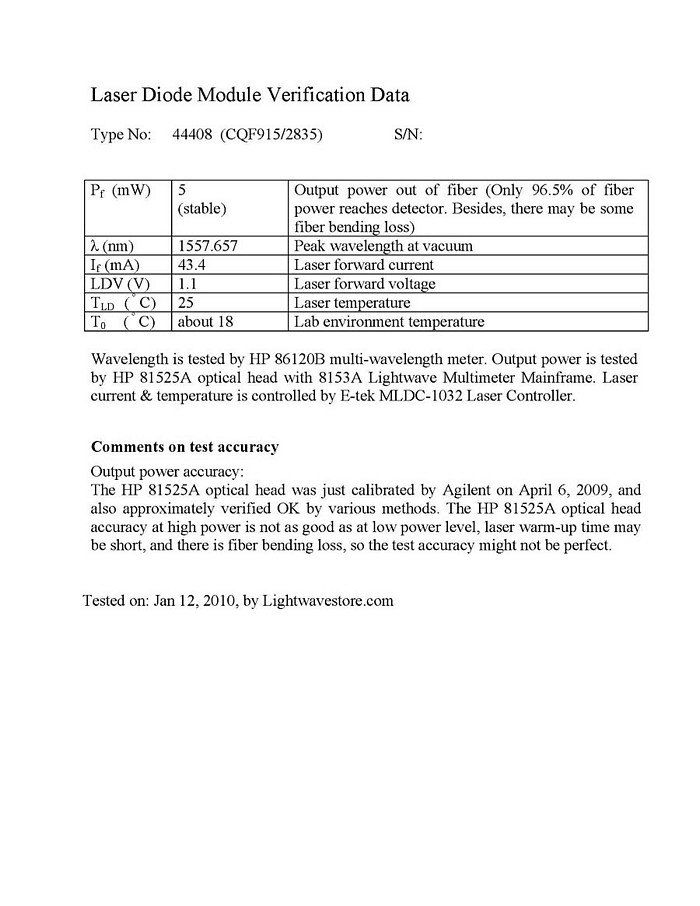

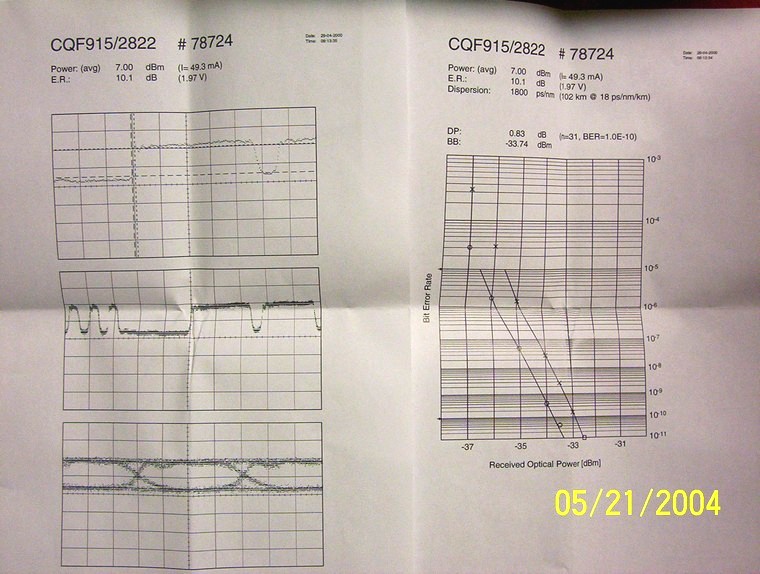

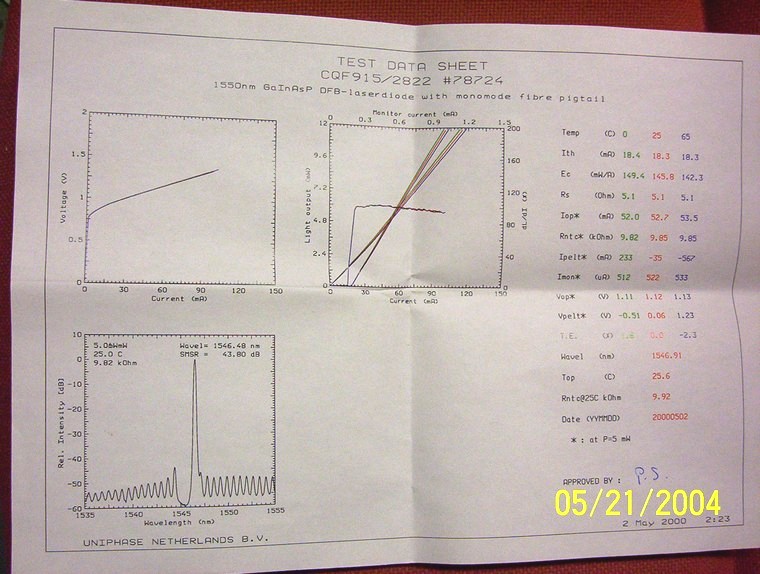

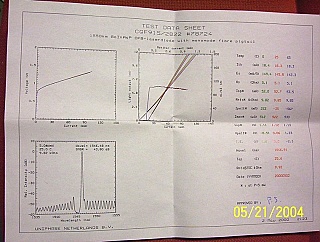

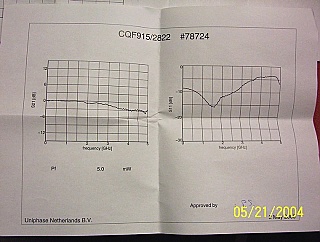

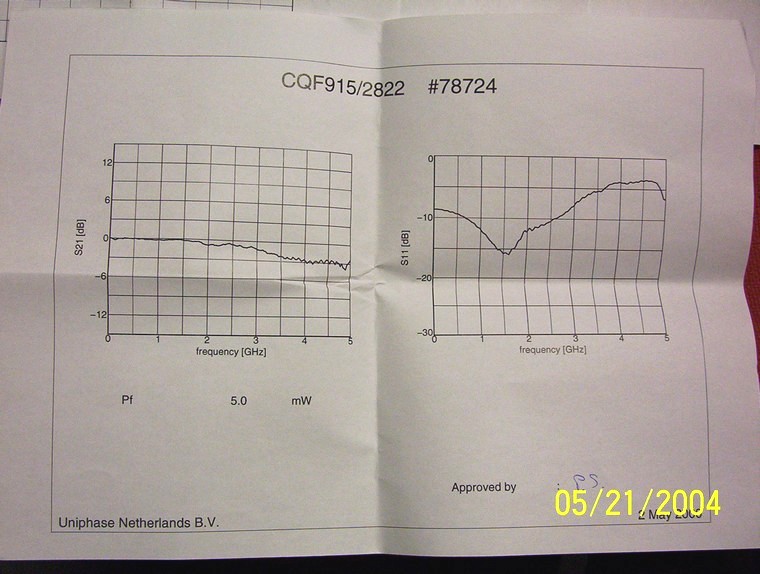

10dBm peak, 7dBm average. With FC/PC fiber connector. Model: CQ915/28xx is equivalent to CFQ915-208/xxx. Data sheet should be same as the pdf link below which is for almost-same model CQF915/208. The only difference between these two models: CQF915/208 is made in USA, CQF915/28xx is made in Netherland.The 3rd, 4th, 5th photos of manufacture test data are for the sold sample CQ915/28 22, are not actually for this CQ915/28 27 sample. Only difference is wavelength.Direct modulation. For 100km WDM/DWDM transmission. WDM/DWDM lasers with wavelengths over 1530-1560nm C-band available at 100GHz-spacing. You may change temperature to tune the wavelength to fit ITU grid.Available wavelength and qty on Oct. 11, 2012:1554.329nm or 1554.41nm, CQ915/2831, qty=2, $1901557.117nm or 1557.657, CQ915/2835, qty=2 (one sample marked "44408" would be equivalent to CQF918/2835, see our test result at last photo below). $180Actual available wavelength, qty, and price will show up after you click “Choose wavelength” menu at the ”Options” section below.

Similar-model PDF datasheet 19 kB

CONDITION:

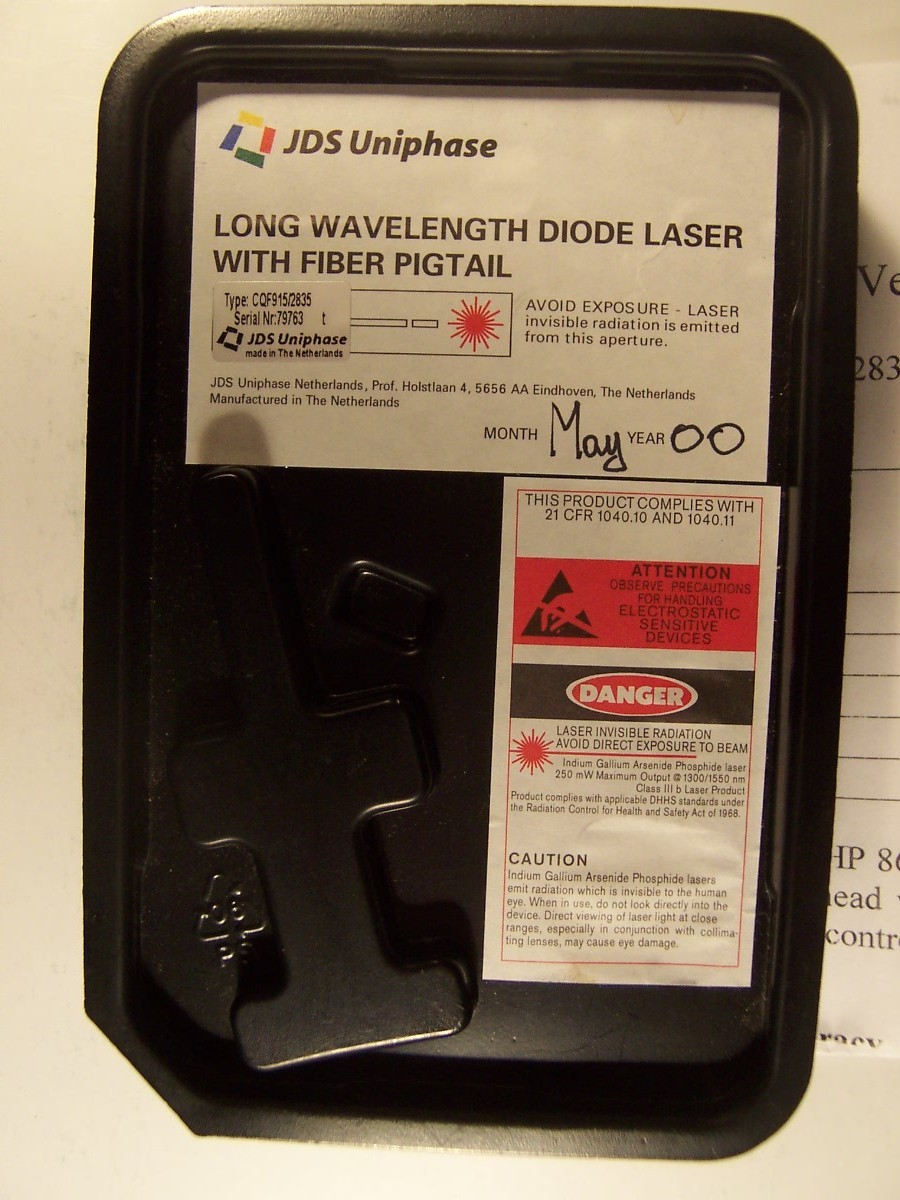

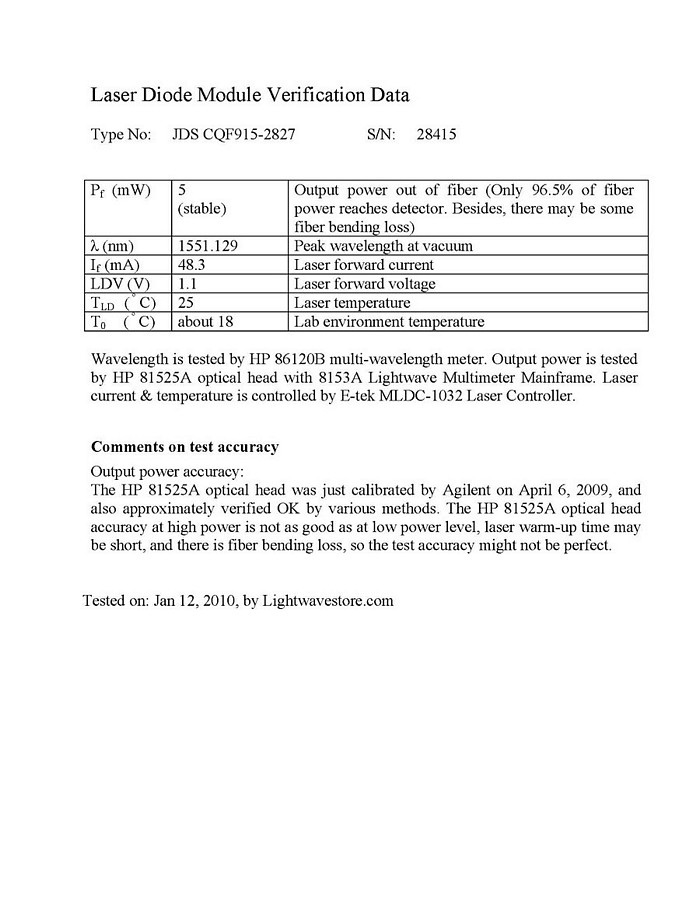

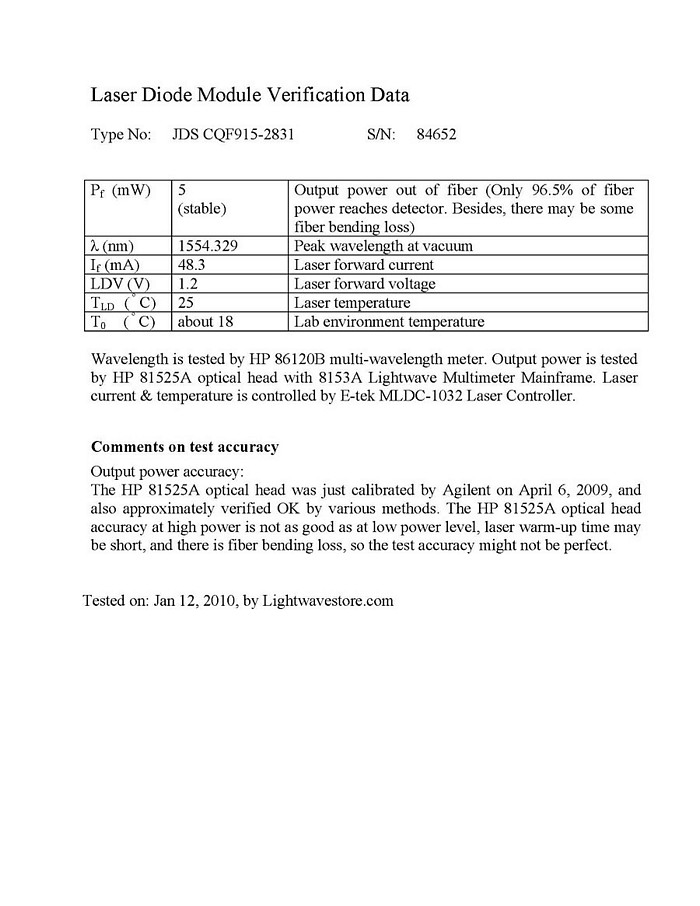

new in original product case without manufacturer test sheet. It is tested good at our lab at CW 5mW (we were too busy to try 10mW at that time), see our test result at the label of last 7 photos below, tested wavelength is at 25 C degree temperature. The The 3rd, 4th, 5th photos of manufacture test data are for the sold sample CQ915/28 22, are not actually for this CQ915/28 27 sample. Only difference is wavelength.

DIM Weight

0.2500 kg

Store Part No.

OSC-LDS-C-001FA

Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal	Discount
From $500	2 %
From $750	3 %
From $1000	4 %
From $1250	5 %
From $1500	6 %
From $1750	7 %
From $2000	8 %
From $2500	9 %
From $3000	10 %

Choose P/N and wavelength
1557.117nm or 1557.657, CQ915/2835, 1554.329nm or 1554.41nm, CQ915/2831, 1551.044nm or 1551.129nm, CQ915/2827, 1547.094nm, CQ915/2823
