1549.3nm or 1550.92nm 2mW isolated DFB Laser, With MU fiber connector. Lucent/Agere model: D2526Y, D2526G, or D2526T

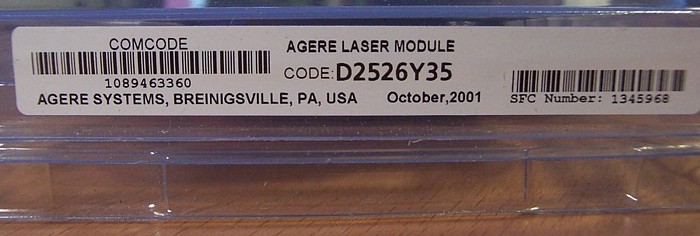

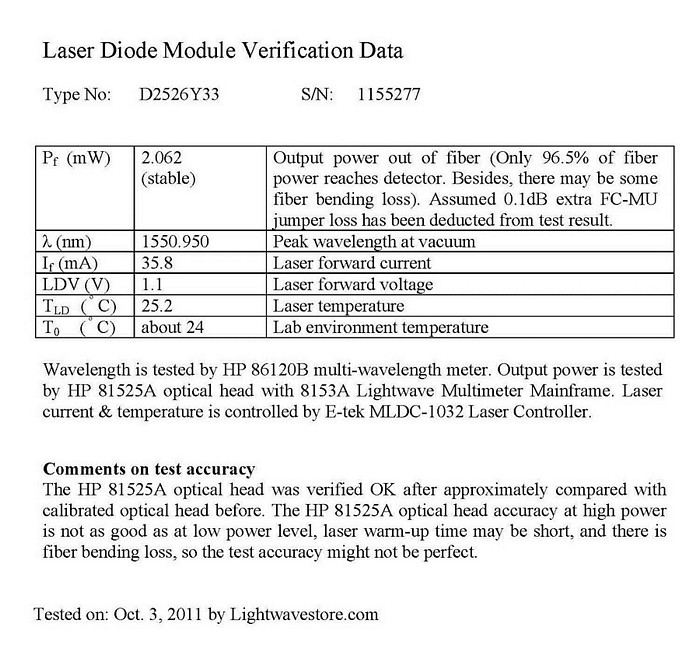

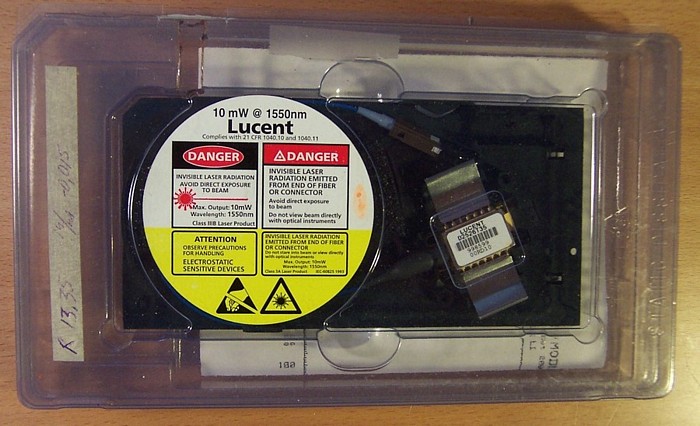

For 2.5Gb long-haul transmission. 14-pin butterfly module. Fiber connectors are MU type for all D2526Y, D2526G, and D2526T models. We cannot tell the difference between D2526Y, D2526G, and D2526T from manufacture test data. Normally (H) of D2526H means ST fiber connector. (Y) means MU connector, (G) and (T) means FC/PC connector, (S) means LC connector. It seems the manufacturer changed connector type from other types to MU for customer special requirement. Both D2526Y, D2526G, and D2526T samples are tested very good and very stable at our lab, see our test results at last 4 photos below, which match manufacture test data very well. See manufacture test data at the last 4 pdf links below. Current actual available qty for certain wavelength will be displayed below after you select (Choose P/N and peak wavelength) menu under Options section below (price may be different from each other). Available wavelengths and qty on Oct. 3, 2011: Wavelength (nm), Part Number, Maker, Qty 1550.92, D2526Y33, AGERE, 20 1549.32, D2526Y35, AGERE, 20 1550.92, D2526G33, Lucent, 5 1549.32, D2526T35, Lucent, 1

PDF datasheet 19.6 kB
Manufacturer test data of sample 1 19.6 kB
Manufacturer test data of sample 2 19.6 kB
Manufacturer test data of sample 3 19.6 kB
Manufacturer test data of sample 4 19.6 kB
