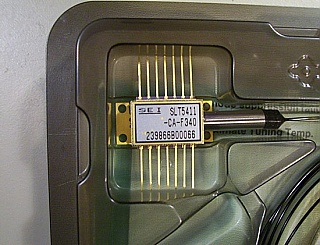

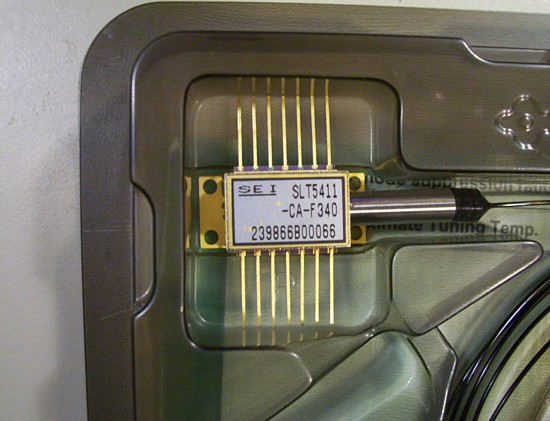

1550.12nm 10mW 14-pin butterfly DFB laser module. SEI model: SLT5411-CA-F340.
Next image
Zoom image

1550.12nm 10mW 14-pin butterfly DFB laser module. SEI model: SLT5411-CA-F340.


Not rated yet
PMF with SC/PC connector(PMF verified by fiber scope). 10mW CW Light Source for DWDM System with external modulation. Built-in TEC, Thermistor, Monitor PIN PD and Optical Isolator.The test sheets in the photos below are only for sold samples. Without actual test sheets.
Out of stock
  • US$229.00
Add a different product to compare
    CONDITION:

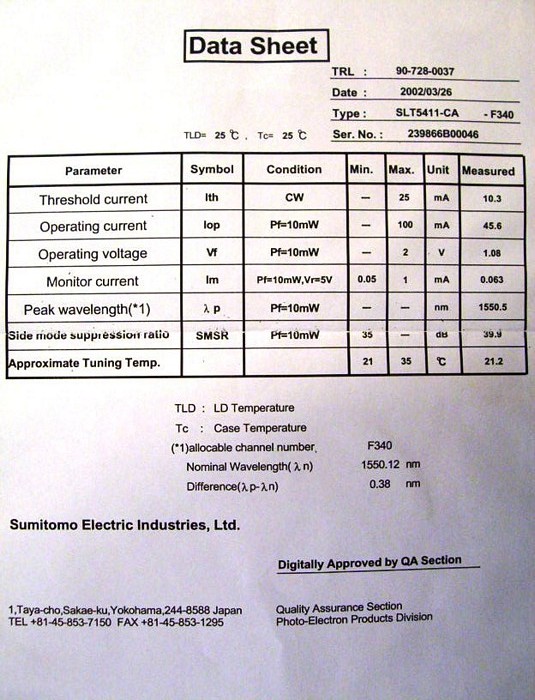

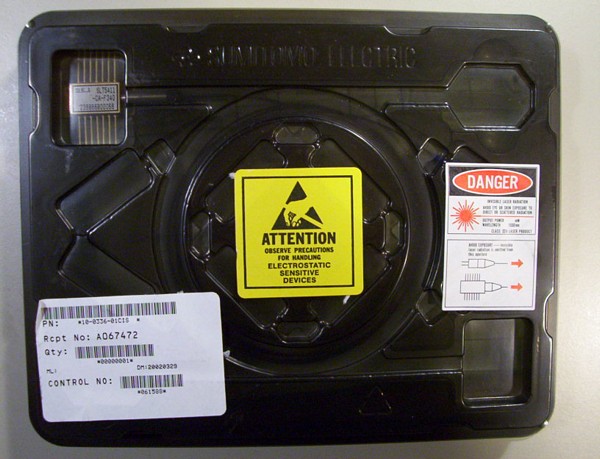

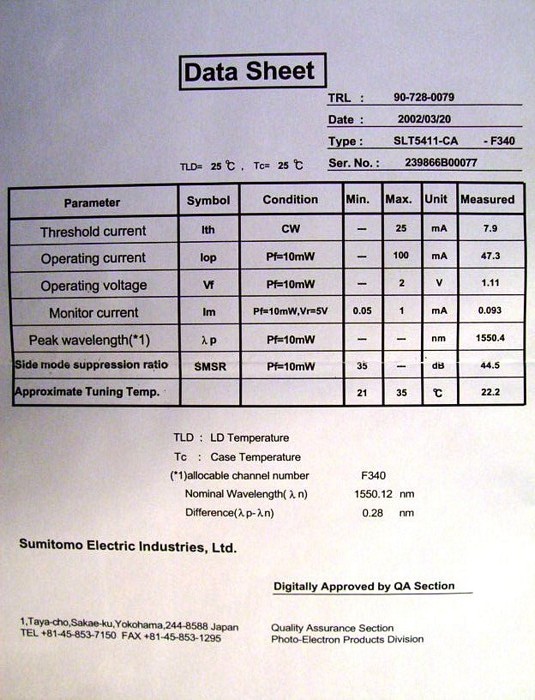

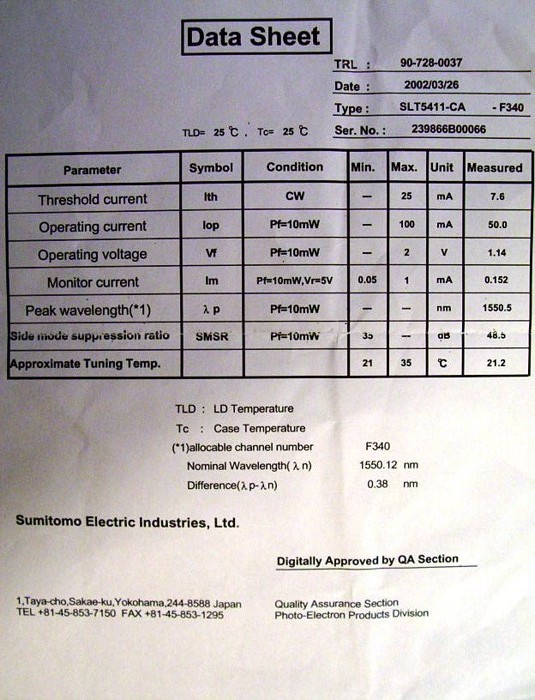

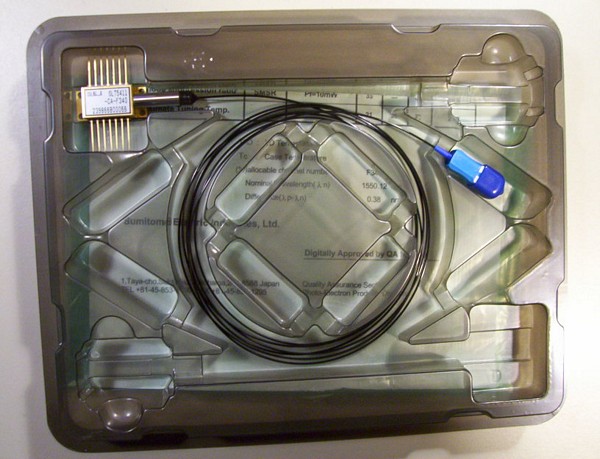

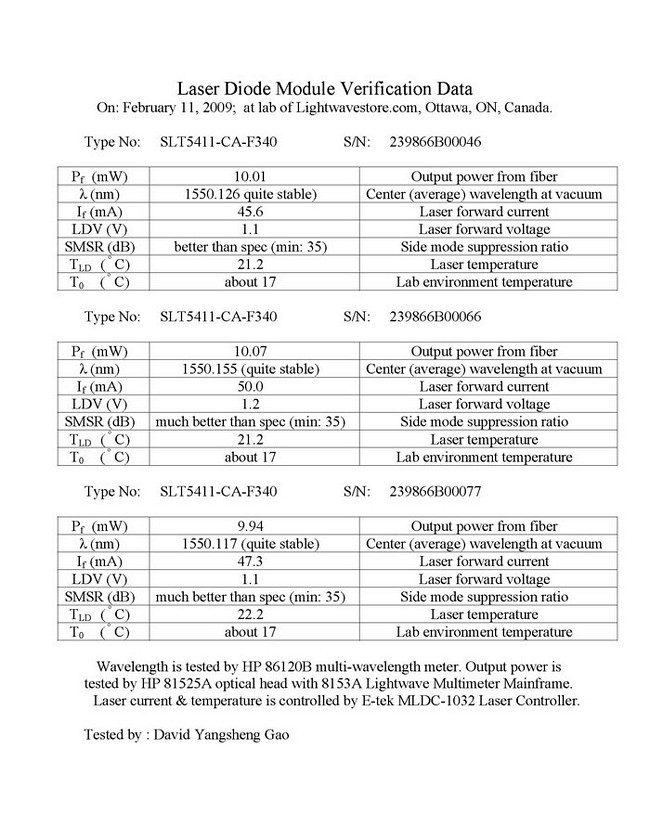

    new in original product case. Without actual test sheets. The samples with test sheets have been sold. We tested 3 samples at our lab, as shown at last photo below, they all match manufacture test sheets very well.

  • DIM Weight
    0.4000 kg
  • Store Part No.
    OSC-LDPM-C-015D
  • Manufacturers
    • Manufacturer
      Sumitomo
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
