1550.65nm 14-pin DFB laser. 10dBm peak. JDS model: CQF915/2827
Next image
Zoom image

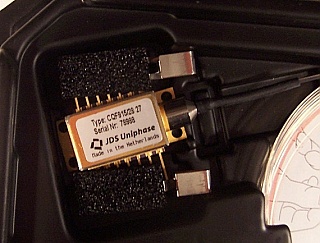

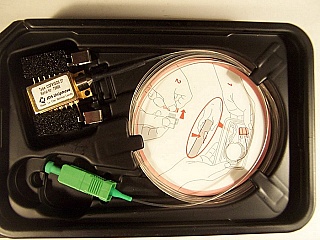

1550.65nm 14-pin DFB laser. 10dBm peak. JDS model: CQF915/2827


Not rated yet
10dBm peak, 7dBm average. With SC/APC fiber connector. Model: CQ915/28 27 is equivalent to CFQ915-208/335, with same wavelength of 1550.92nm in specification. Data sheet should be same as the pdf link below which is for almost-same model CQF915/208. The only difference between these two models: CQF915/208 is made in USA, CQF915/28xx is made in Netherland.The last three photos of manufacture test data are for the sold sample CQ915/28 22, are not actually for this CQ915/28 27 sample. Only difference is wavelength.Direct modulation. For 100km WDM/DWDM transmission. WDM/DWDM lasers with wavelengths over 1530-1560nm C-band available at 100GHz-spacing. You may change temperature to tune the wavelength to fit ITU grid.
Out of stock
  • US$255.00
Add a different product to compare
    CONDITION:
    new in original product case without manufacturer test sheet. It is tested good at our lab, see our test result at the label of 3rd photo below, tested wavelength is around 1550.65nm at 25 C degree temperature. The last three photos of manufacture test data are for the sold sample CQ915/28 22, are not actually for this CQ915/28 27 sample. Only difference is wavelength.

  • DIM Weight
    0.2500 kg
  • Store Part No.
    OSC-LDS-C-001E
  • Manufacturers
    • Manufacturer
      jds
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
