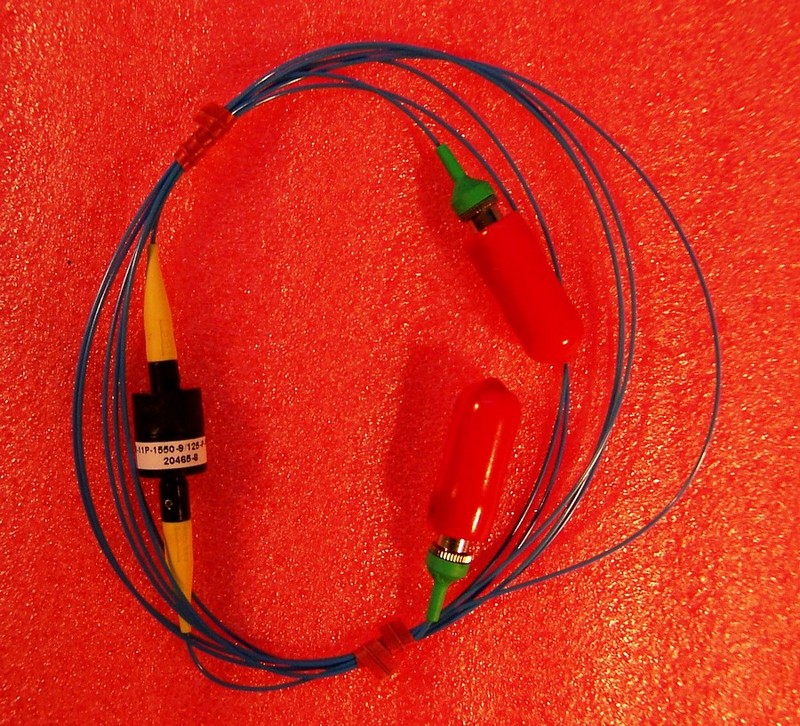

1550nm Fiber Optic Faraday Rotator. With two FC/APC PMF cnnectors. Oz Optics model: FOR-11P-1550-9/125-P-P-40-3A3A-1-1,1
Next image
Zoom image

1550nm Fiber Optic Faraday Rotator. With two FC/APC PMF cnnectors. Oz Optics model: FOR-11P-1550-9/125-P-P-40-3A3A-1-1,1


Not rated yet

With 900um-buffered PMF, slow axes of input and output were aligned against each other.

Features
• Singlemode,multimode and polarization maintaining versions available
• Wide range of center wavelengths
• Low loss
• Low back reflection
• Compact housing

Applications
• Fiber lasers
• Interferometers sensors
• Amplifiers
• Circulators

Product Description
Faraday rotators change the polarization state of light traveling through it. The output polarization state is rotated by 45 degrees with respect to the input polarization. When combined with a mirror, the reflected light is rotated by another 45 degrees, resulting in a 90 degree rotation. In addition, the polarization handedness is reversed by the mirror. This results in a reflected polarization that is orthogonal to the original polarization. This is useful when used in interferometers, because polarization changes through the fiber are cancelled out on the return journey.

In stock (Only 1 left in stock)
  • US$235.00
Qty:
Add a different product to compare
    CONDITION:

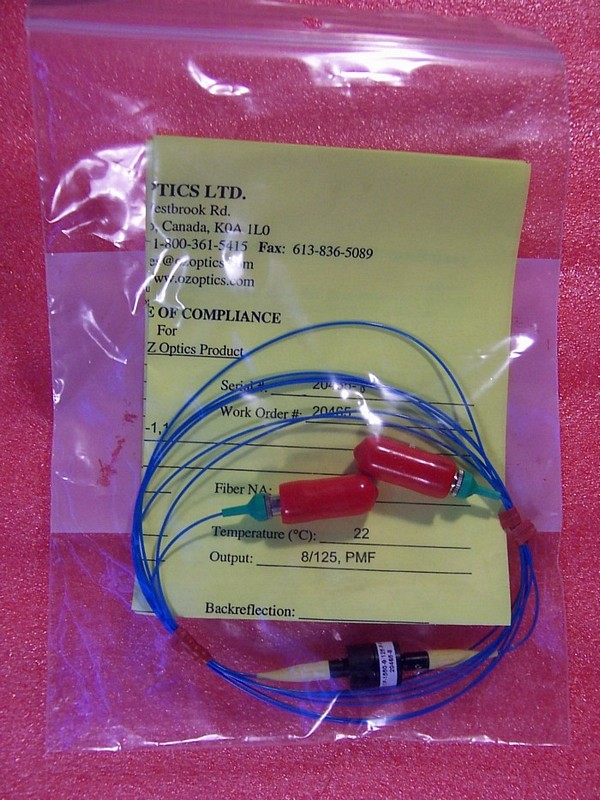

    New in original product case. With actual test sheet (See last pdf link above)


  • DIM Weight
    0.2500 kg
  • Store Part No.
    OFC-POL-350C
  • Manufacturers
    • Manufacturer
      OZ
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
