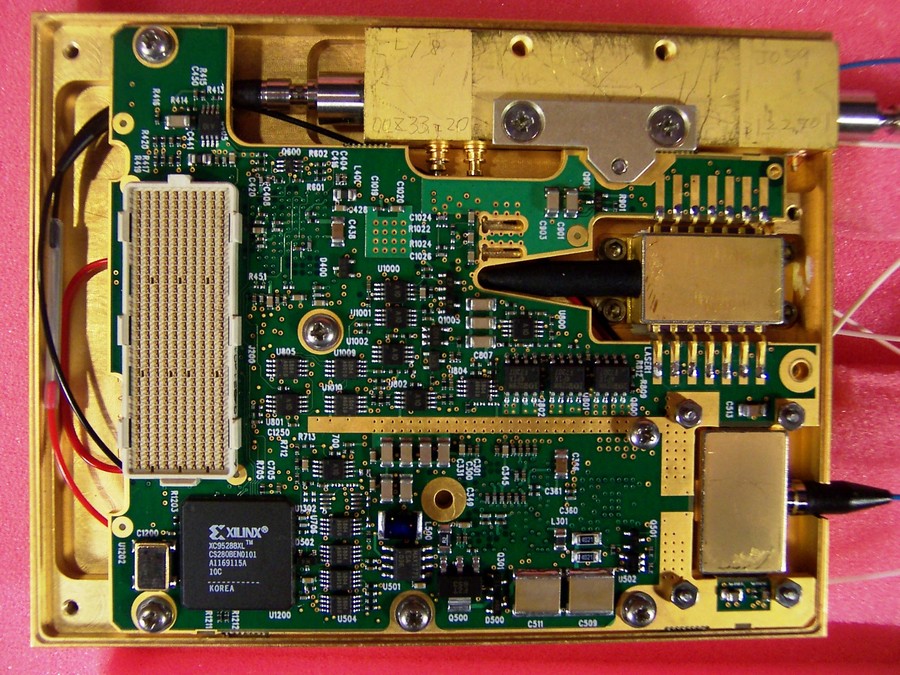

With dual-drive 10Gb modulator(it may be similar to JDS DDMZ modulator, see 2nd pdf link), PMF CW laser (We very believe it is 20mW laser, since this transponder output specification >3dBm. It would be same as or similar to JDS model: CQF975/508, see 3rd pdf link), and 10Gb receiver. See 5th photo. We do not know the P/N of these devices, but they would be similar to the parts in OMS-TRx-1550-040C (except receiver type). We can remove these parts from the transceiver module by desoldering machine with low-melting point solder, and sell separately upon request.

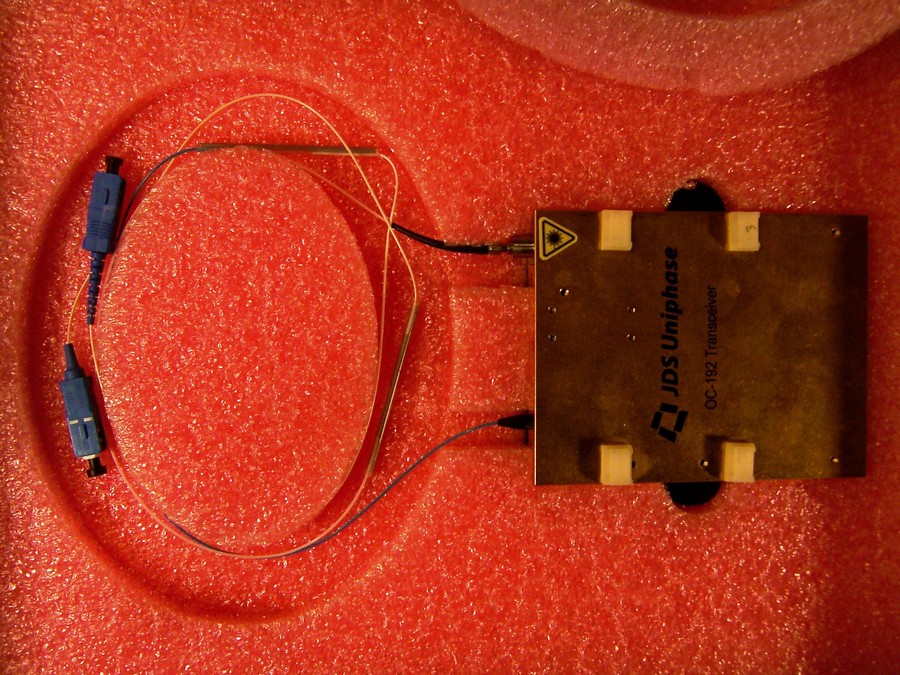

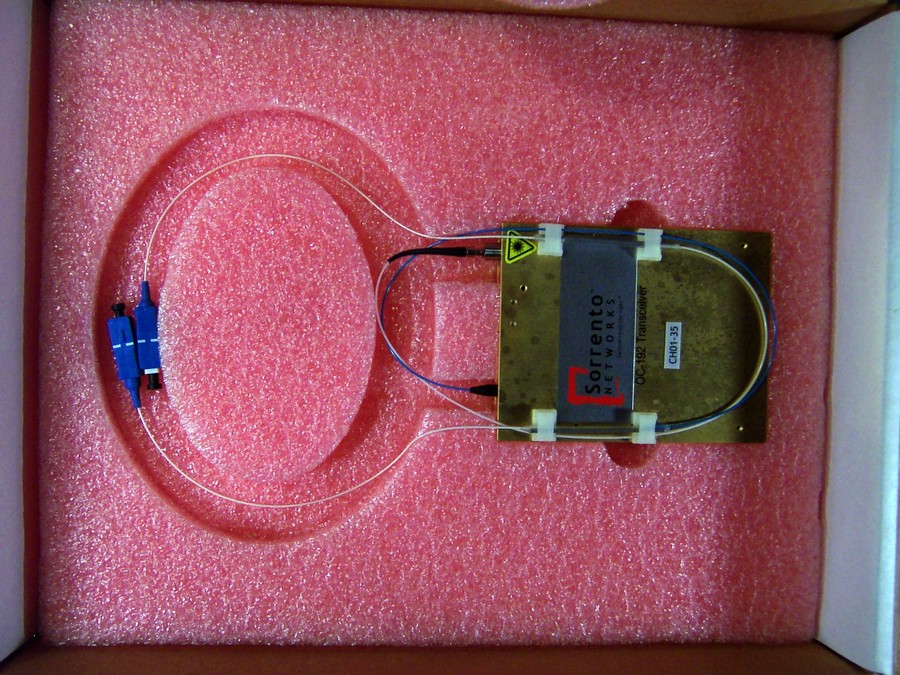

With 2 SC/PC connectors. It is made for Sorrento Networks.

General description:

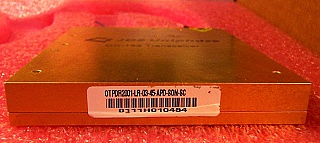

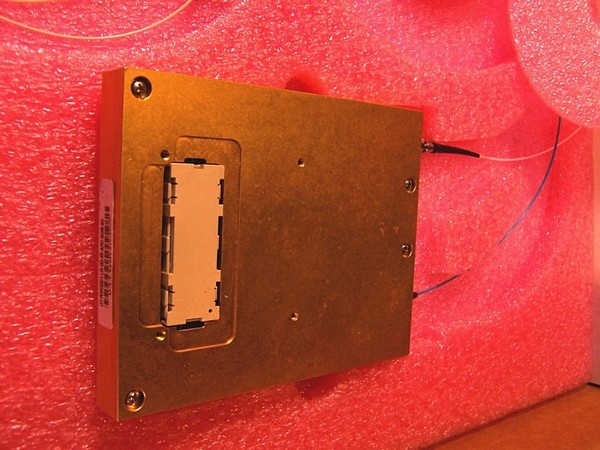

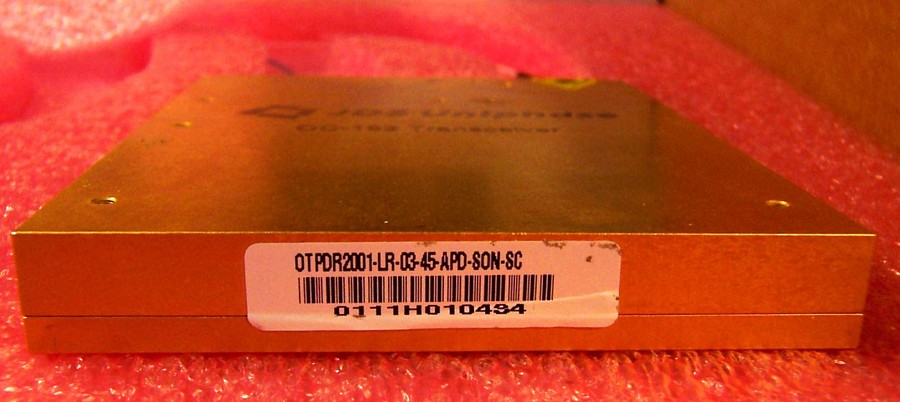

The OTPDR2001-LR is a mechanically compliant 300 pin MSA, SONET OC-192/GR-1377 transceiver/transponder. The transceiver/transponder uses a LiNbO3 modulator and a CW laser. The modules are available with 0, 3, or 7 dBm of optical output power. The features of the transceiver/transponder include integrated electrical mux (performs parallel electrical to serial optical signal conversion), and a demux that performs a serial optical to parallel electrical conversion. The transceiver/transponder is available with wavelengths on the ITU grid (200, 100, and 50 GHz spacing), as well as an integrated high sensitivity PIN or APD receiver. The unit is fully compliant to OIF 99.102.8 specifications. The long reach module has one of the smallest standard form factor packages in the industry, (3.5 x 4.5 x 0.53 inches), and has the identical form factor as its short, intermediate and extended reach counterparts.

Key Features
_ Mechanically compliant with the 300 pin multisource agreement (MSA)
_ SONET OC-192 / GR-1377 compliant
_ Link budgets up to 30 dB
_ Integrated 10 Gb/s optical transmitter and receiver with dual rate 16-channel mux/demux
_ Receiver sensitivity: APD -24 dBm optical input power(at BER = 10-12), PIN –14 dBm optical input power (at BER = 10-12)
_ No DC power sequencing required
_ Low power dissipation
_ Available in FEC rate and 10 G ethernet versions
