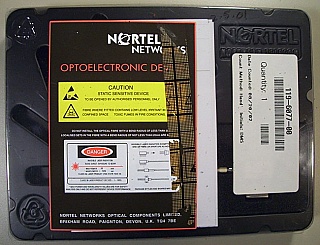

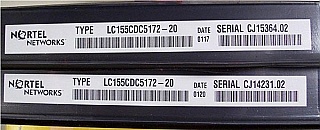

1551.72nm 20mW 14-pin butterfly DFB laser module. Nortel model: LC155CDC5172-20.
Next image
Zoom image

1551.72nm 20mW 14-pin butterfly DFB laser module. Nortel model: LC155CDC5172-20.


Not rated yet
Nortel Continuous Wavelength (CW) Fixed Laser. 900um-buffered PMF pigtail, with FC/PC fiber connector (PMF is verified in our lab). This type of 20mW CW laser was used in in Nortel OPTERA OC-192 100GHz(or 50GHz)-spacing DWDM long-haul transmission system products with external modulation around 2000. Incorporating a Fabry-Perot etalon and two monitor photodiodes, the CW laser may be “locked” to the ITU grid and wavelength can be maintained to within +/-20pm over temperature and life. See datasheet in the pdf link below (Nortel laser department was sold to Bookham). See pin-out at pdf datasheet link, it is not standard pin-out.
Out of stock
  • US$350.00
Add a different product to compare
    CONDITION:

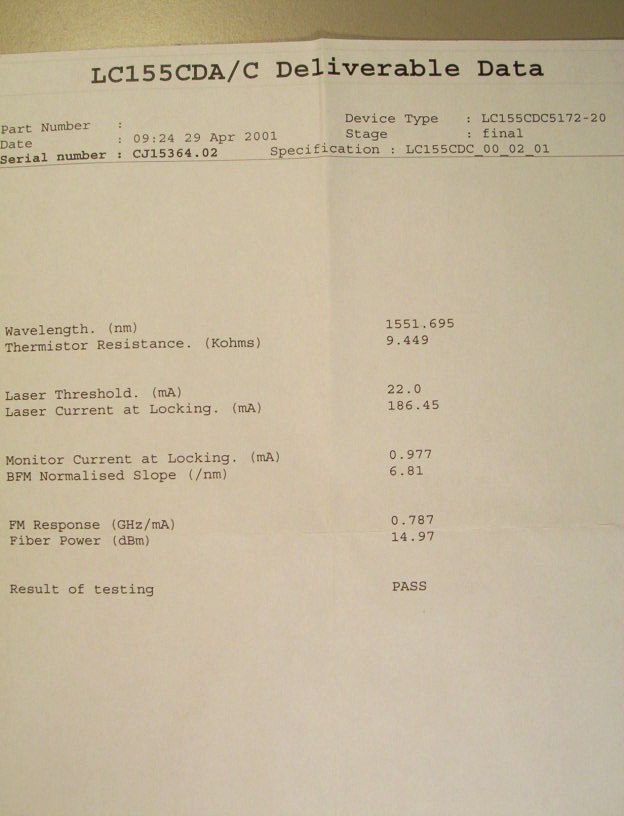

    new in original product case. With test sheet

  • DIM Weight
    0.4000 kg
  • Store Part No.
    OSC-LDPM-C-023D
  • Manufacturers
    • Manufacturer
      Nortel
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
