1556.79 >50mW 14-pin butterfly DFB laser module. JDS model: cqf938/50


Not rated yet
Tested wavelengths of two laser samples at our lab : 1556.79 (see last 2 photos) (another one with 1556.08nm was sold) . 900um-buffered PMF pigtail, with standard 2.5mml ferrule. >50mW CW Light Source for long-haul system with external modulation. Built-in TEC, Thermistor, Monitor PIN PD and Optical Isolator. There is an article about how to use this laser in the 3rd pdf link.
Out of stock
  • US$710.00
Add a different product to compare
    CONDITION:

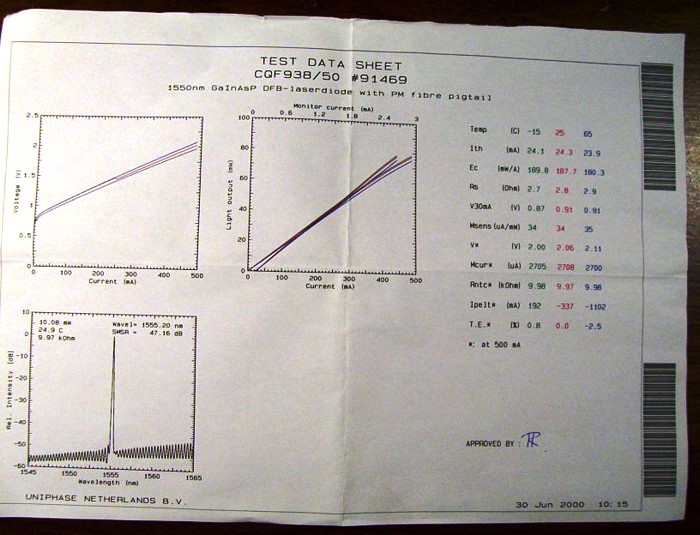

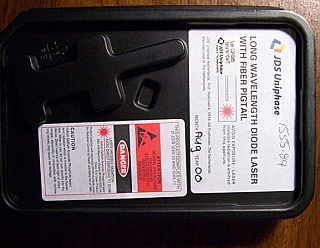

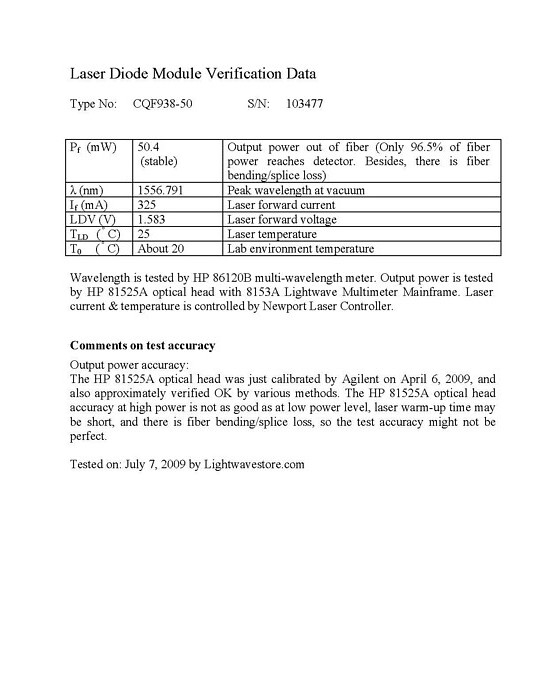

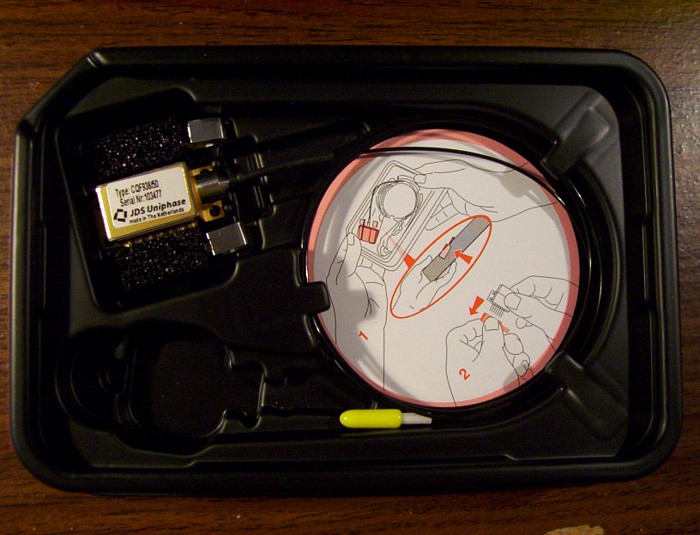

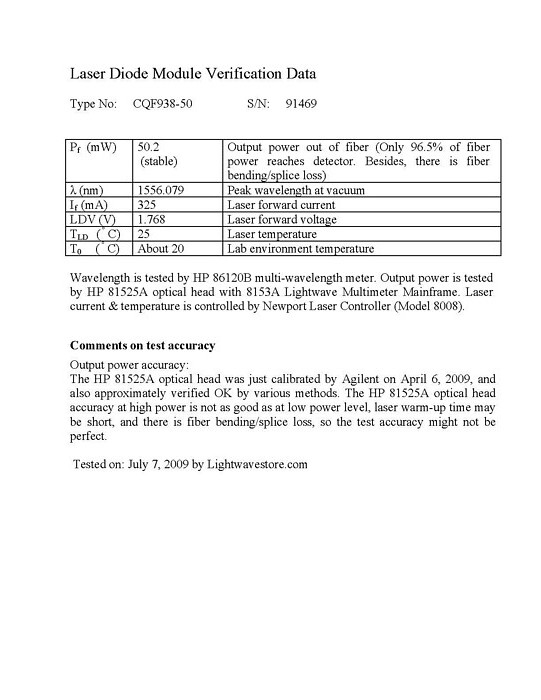

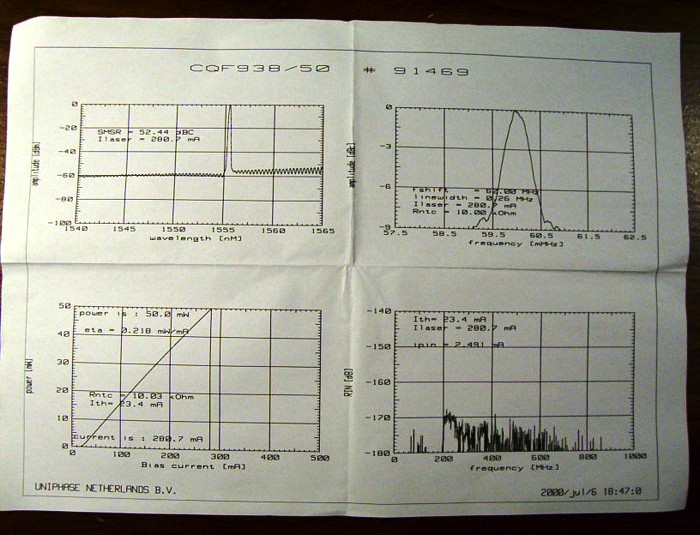

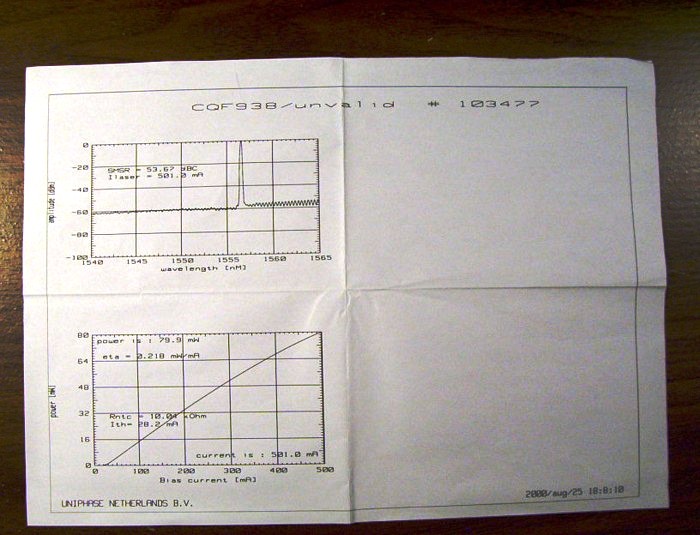

    unused in original product case, with actual manufacture test sheet. Tested very good at our lab, see our test reports at last two photos.

  • DIM Weight
    0.2500 kg
  • Store Part No.
    OSC-LDPM-C-022D
  • Manufacturers
    • Manufacturer
      jds
