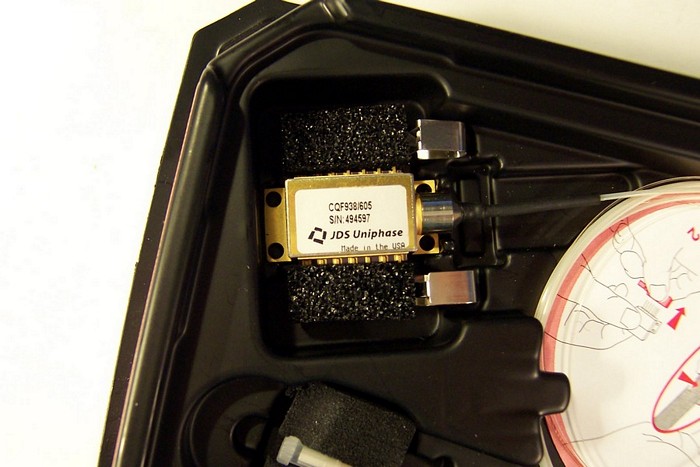

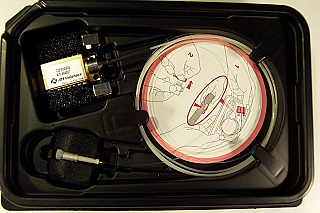

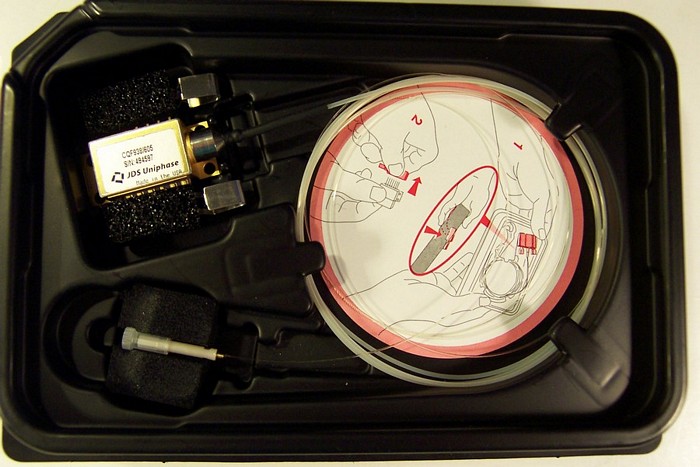

1558.06nm 14-pin butterfly DFB laser module, Pop=63mW. Short leads version. JDS model: CQF938/605.
Next image
Zoom image

1558.06nm 14-pin butterfly DFB laser module, Pop=63mW. Short leads version. JDS model: CQF938/605.


Not rated yet

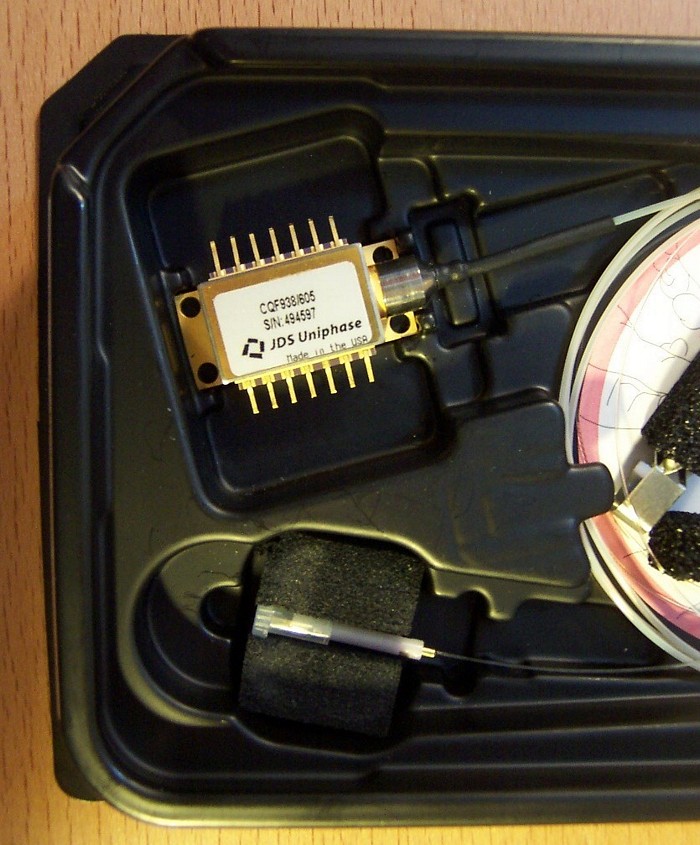

Tested center wavelength: 1558.060nm at 63mW. Lasing wavelength in specification: min: 1547nm, typical: 1555nm, max: 1560nm. 63mW operating output power.JDS model: CQF938/605 is short-leads version (While standard CQF938/600 is long leads vesion), see 3rd photo below, but it can still fit E-tek 14-pin butterfly laser mount (14 leads are too short to fit Newport 744 laser mount). See pdf datasheet link below for more info.900um-buffered fiber near laser body. 400um-coating PMF near fiber ferrule(400um-coating is sample verified in our lab), terminated with 2.5mm PMF ferrule. See pdf datasheet link below for more info.
Out of stock
  • US$760.00
Add a different product to compare
    CONDITION:

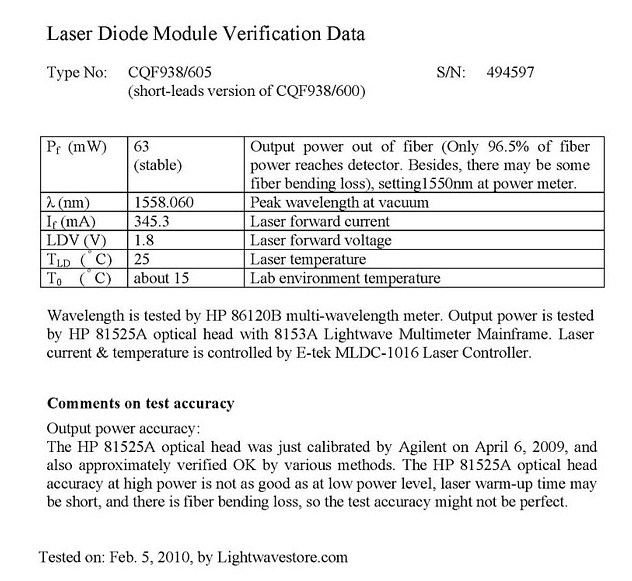

    new in product pack without test data. Tested good at our lab, as shown at last photo below .

  • DIM Weight
    0.2500 kg
  • Store Part No.
    OSC-LDPM-C-421C
