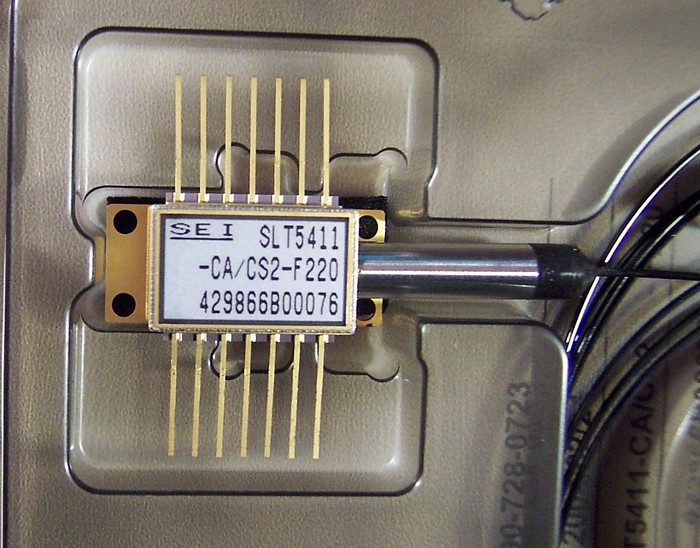

1559.3nm/1559.79nm 10mW 14-pin butterfly DFB laser module. SEI model: SLT5411-CA/CS2-F220
Next image
Zoom image

1559.3nm/1559.79nm 10mW 14-pin butterfly DFB laser module. SEI model: SLT5411-CA/CS2-F220


Not rated yet

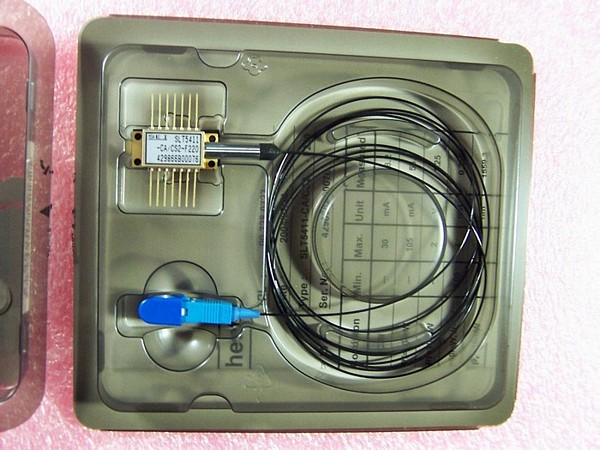

PMF with SC/PC connector(PMF verified by fiber scoped).  10mW CW Light Source for DWDM System with external modulation. . Built-in TEC, Thermistor, Monitor PIN PD and Optical Isolator.

Nominal wavelength is 1559.79nm. For this sample, actual tested wavelength in manufacture test data is 1559.3nm at 25 C. To reach nominal wavelength 1559.79nm, you need increase temperature to 29.9 C.

Out of stock
  • US$250.00
Add a different product to compare
    CONDITION:

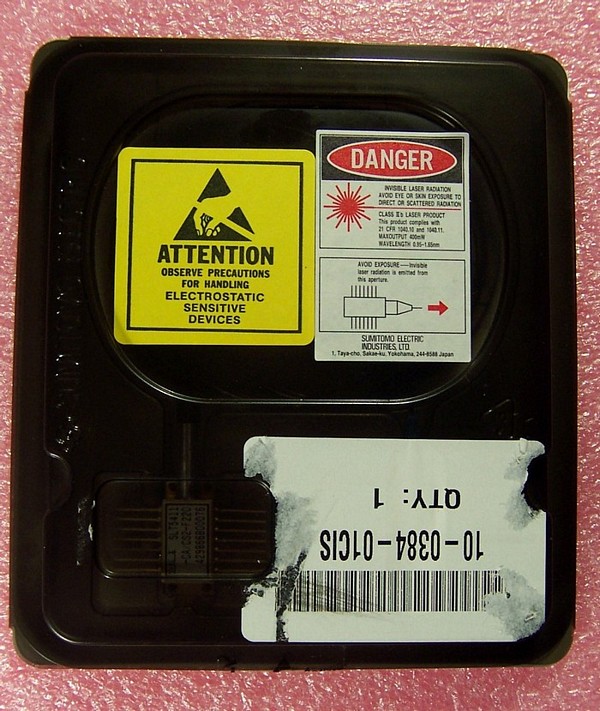

    New in original product pack. With actual manufacture test data, as shown at last pdf link above


  • DIM Weight
    0.2500 kg
  • Store Part No.
    OSC-LDPM-C-015J
  • Manufacturers
    • Manufacturer
      Sumitomo
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
