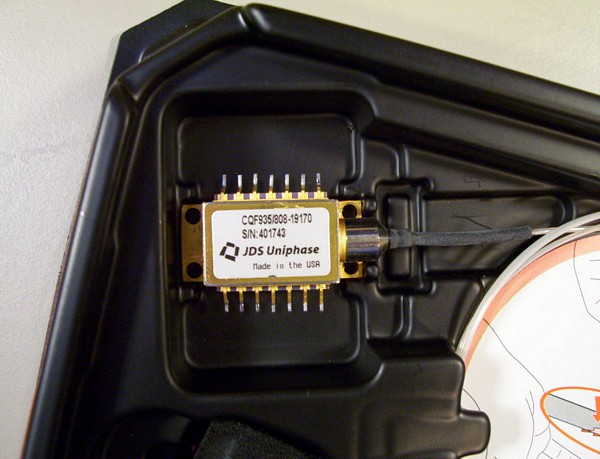

1563.86nm DWDM 14-pin butterfly DFB laser modules, Pop=50mW. JDS model: CQF935/808-19170.

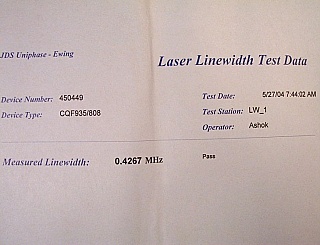

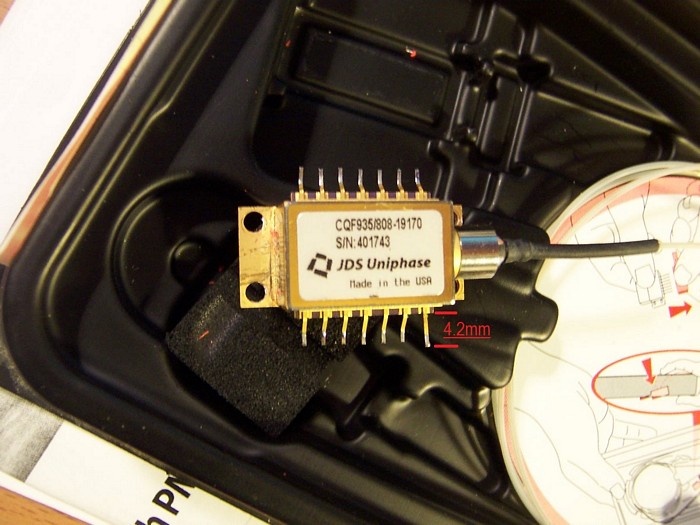

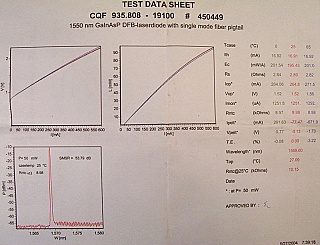

Center wavelength: Center wavelength: 1563.86nmSee pdf datasheet link below for more info.900um-buffered fiber near laser body. 400um-coating PMF near fiber ferrule(400um-coating is verified in our lab), terminated with 1.25mm PMF ferrule (panda PMF is verified by fiber scope in our lab). Warning: The test sheets below of last two photos are only from different wavelength sample.Leads are a little bent, since laser was removed from PCB by previous user. We straightened one lead, measured lend length is 4.2mm, as shown between the two red lines at 4th photo below. It is shorter than the leads length in pdf datasheet ( about 7.5mm ).Note: It is terminated with 1.25mm PMF ferrule (without full connector). We cannot add PMF fiber connector by fusion splice.

PDF datasheet 17.7 kB

Manufacturers
- Manufacturer
  jds
