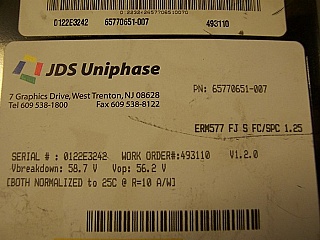

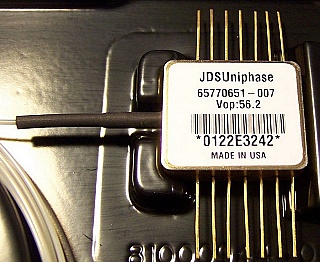

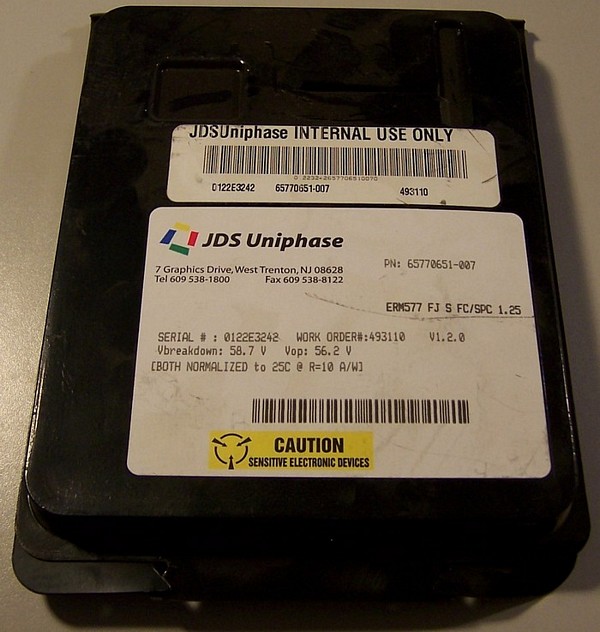

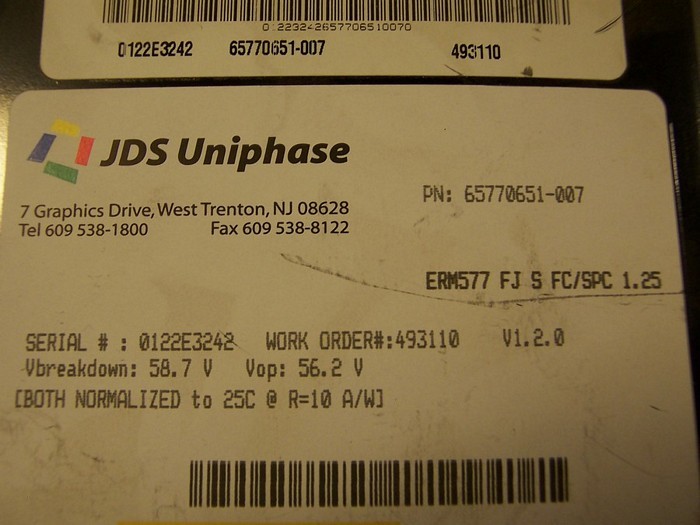

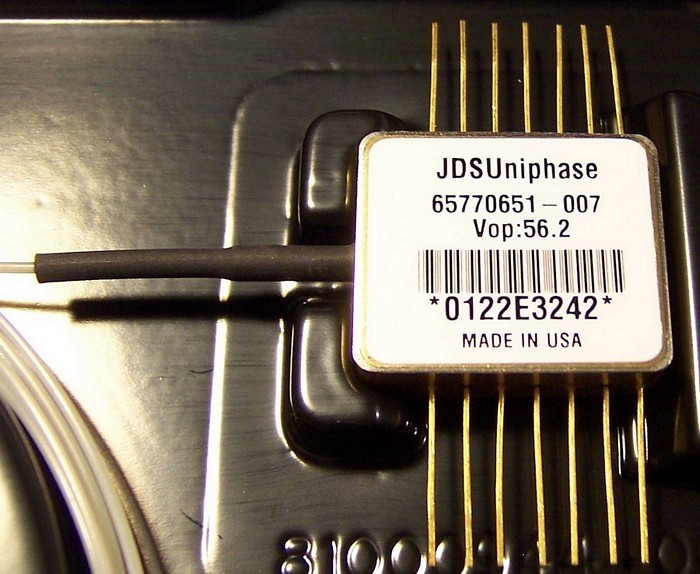

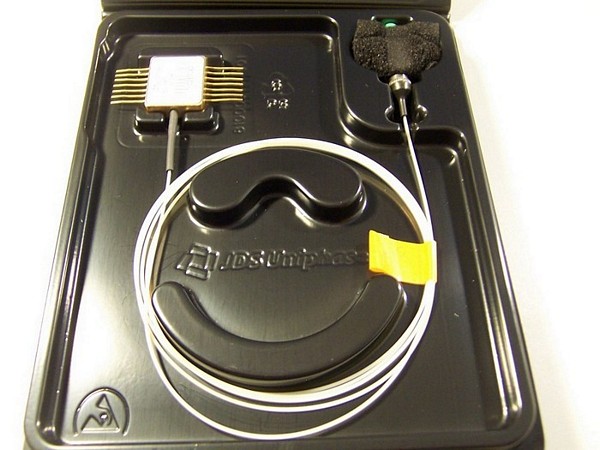

2.5Gb high-gain APD/Preamp receiver, JDS model: ERM577 FJ S FC/SPC 1.25. P/N:65770651-007. With FC/SPC fiber connector

FC/SPC fiber connector is compatible to FC/PC, FC/UPC. SM fiber with 900um loose tube.

EPITAXX ERM 577 series are high gain, high bandwidth, differential output, Avalanche Photodiode (APD) receivers with GaAs transimpedance amplifiers. The high gain of the receivers provides system designers with a large output at low optical power levels. Also, the differential output can be used for added gain or
for signal monitoring.

Key Features

Electro-optical
• InGaAs photodiode with Transimpedance Amplifiers
• High gain: 50,000 V/W typical
• High dynamic range: 31 dB typical
• Low dark current: 10 nA typical

Packaging
• 14-pin butterfly with single mode 900 ?m loose jacketed fiber pigtail
or
AMG package with single mode 900 um loose jacketed fiber pigtail
• Both packages available with LC, SC or FC connectors

Applications
• High sensitivity digital receivers
• Long haul SONET/SDH receivers

PDF datasheet 20.9 kB
