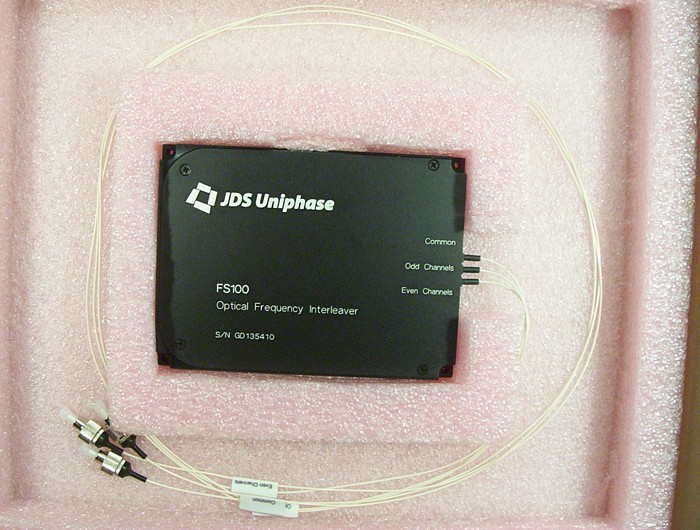

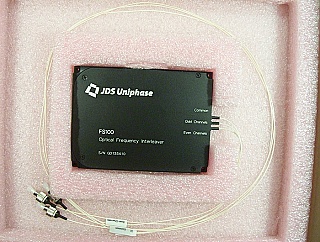

200GHz-to-100GHz C-band interleaver. JDS model: FS100. with RTD-based internal TEC. Operating at 70.9 C degree temperature
Next image
Zoom image

200GHz-to-100GHz C-band interleaver. JDS model: FS100. with RTD-based internal TEC. Operating at 70.9 C degree temperature


Not rated yet

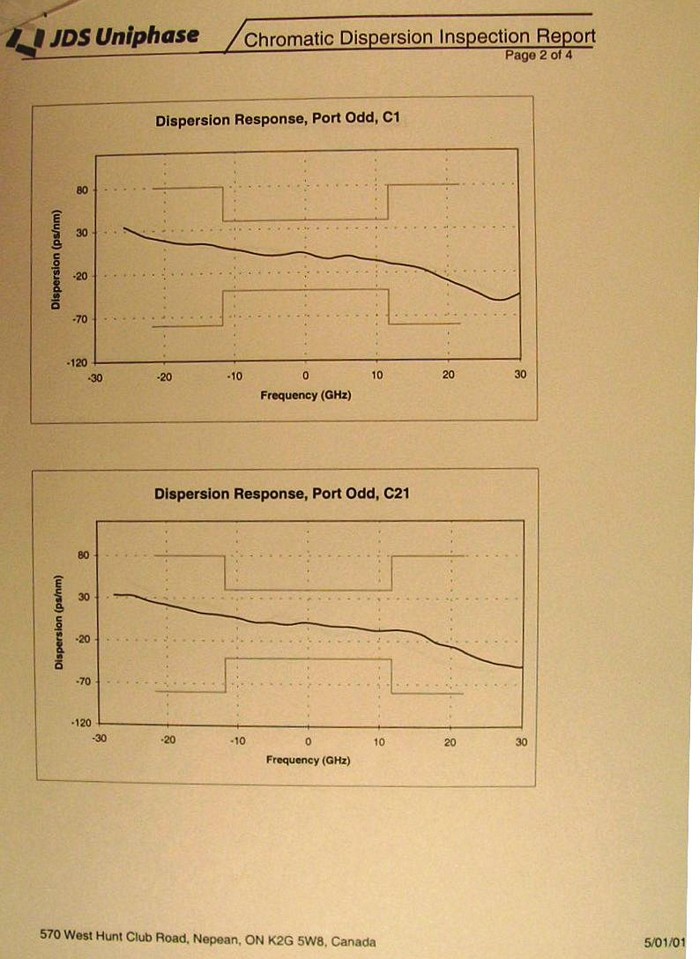

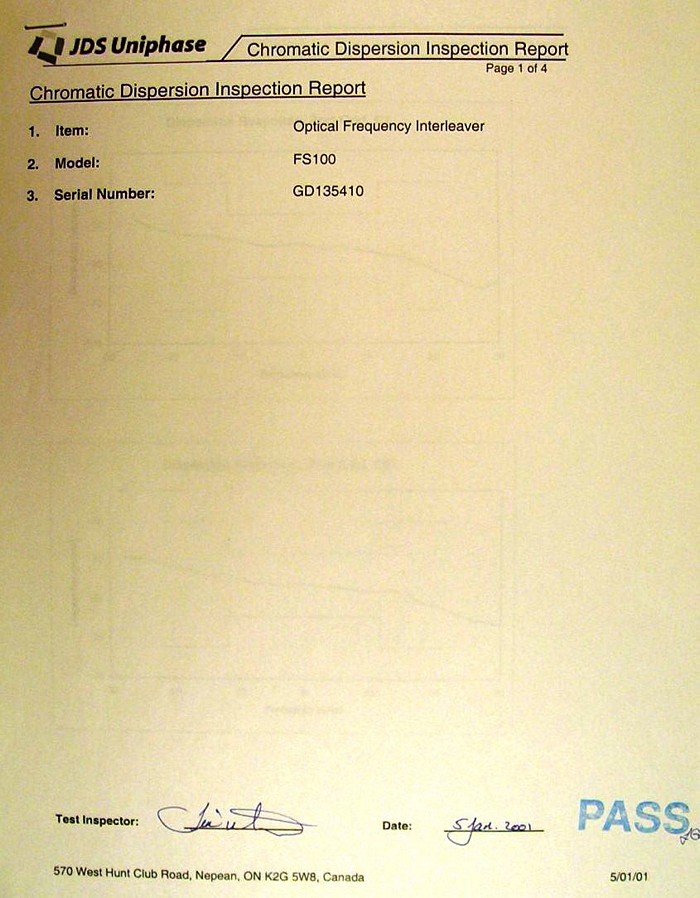

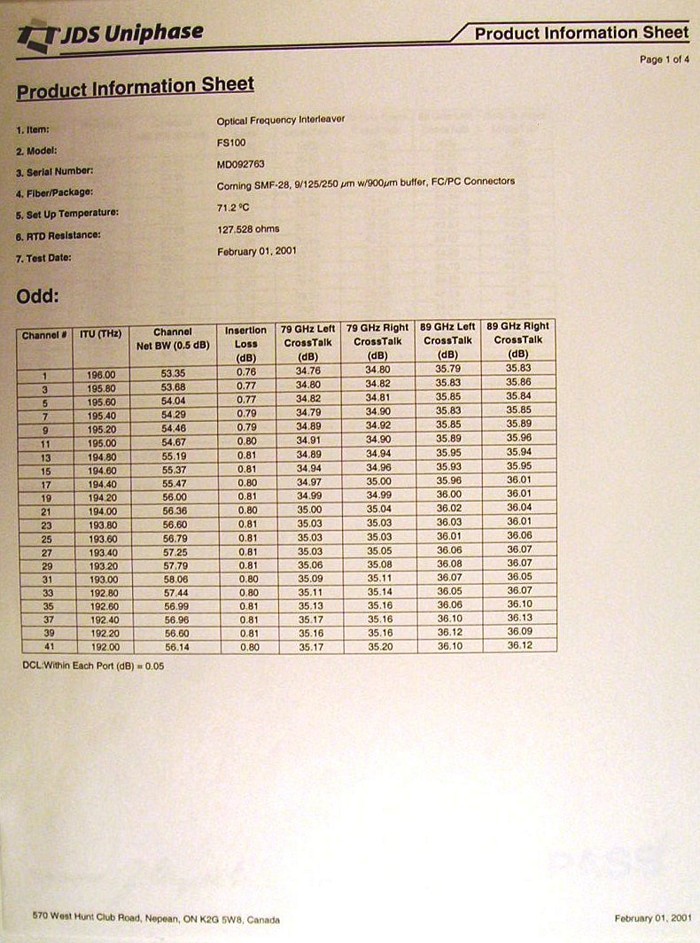

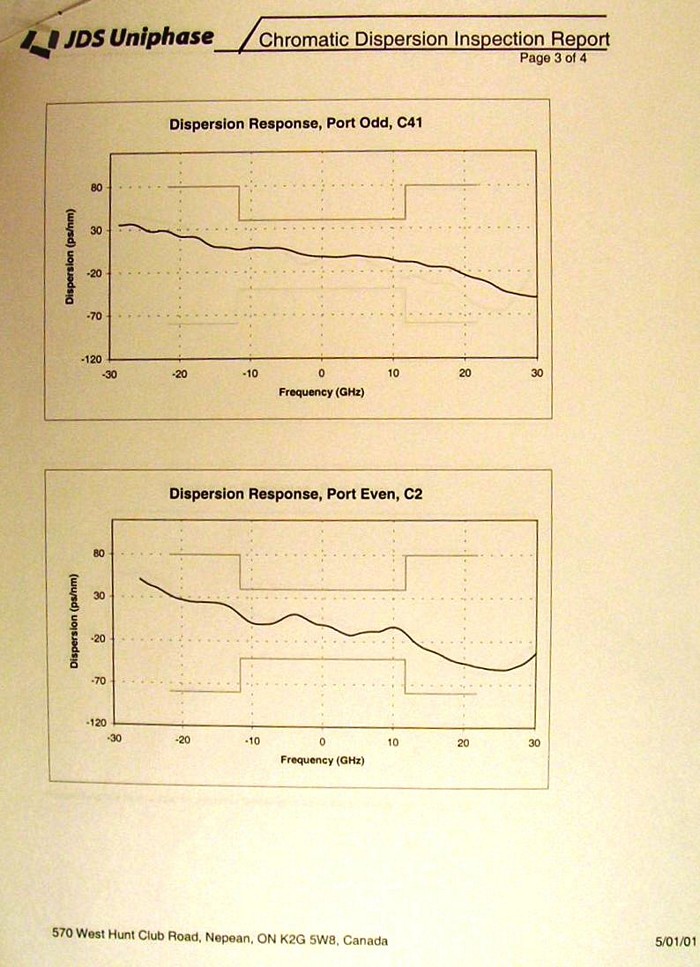

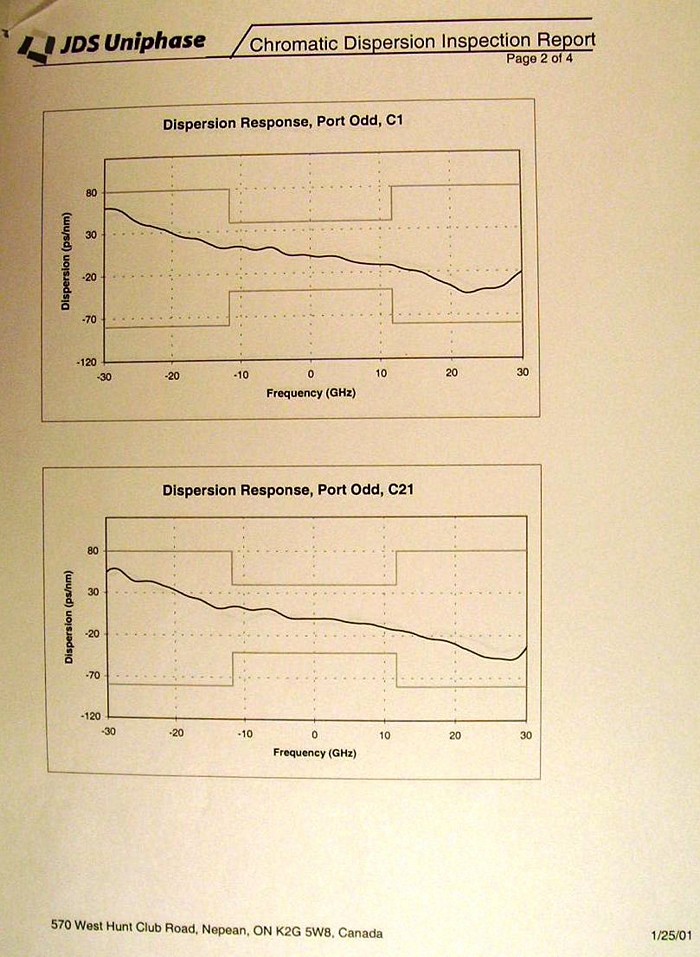

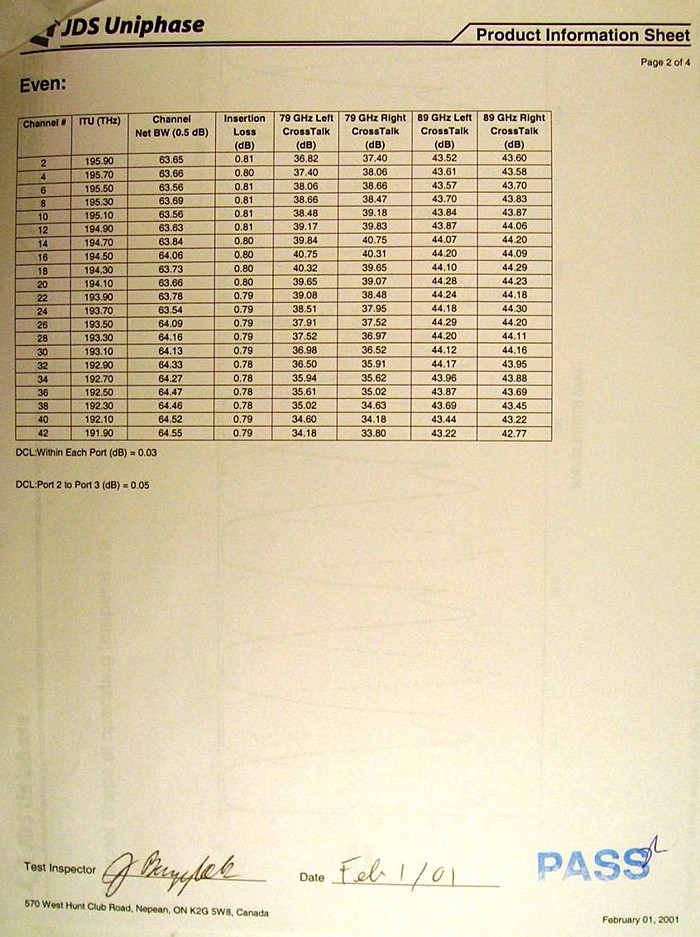

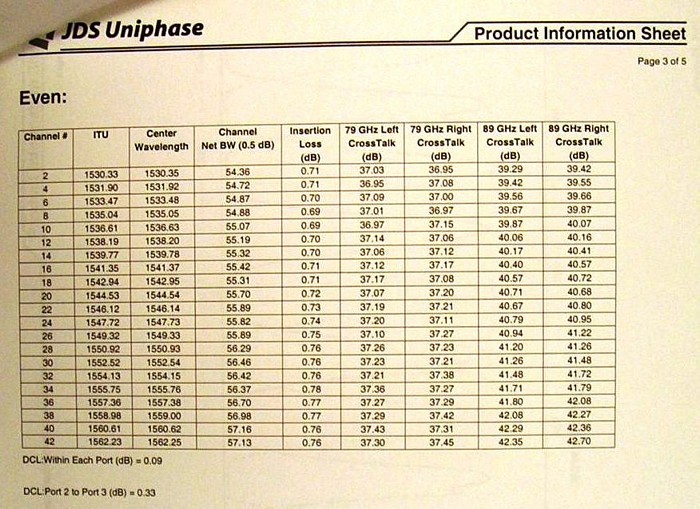

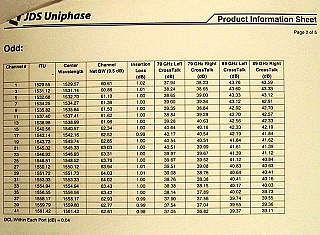

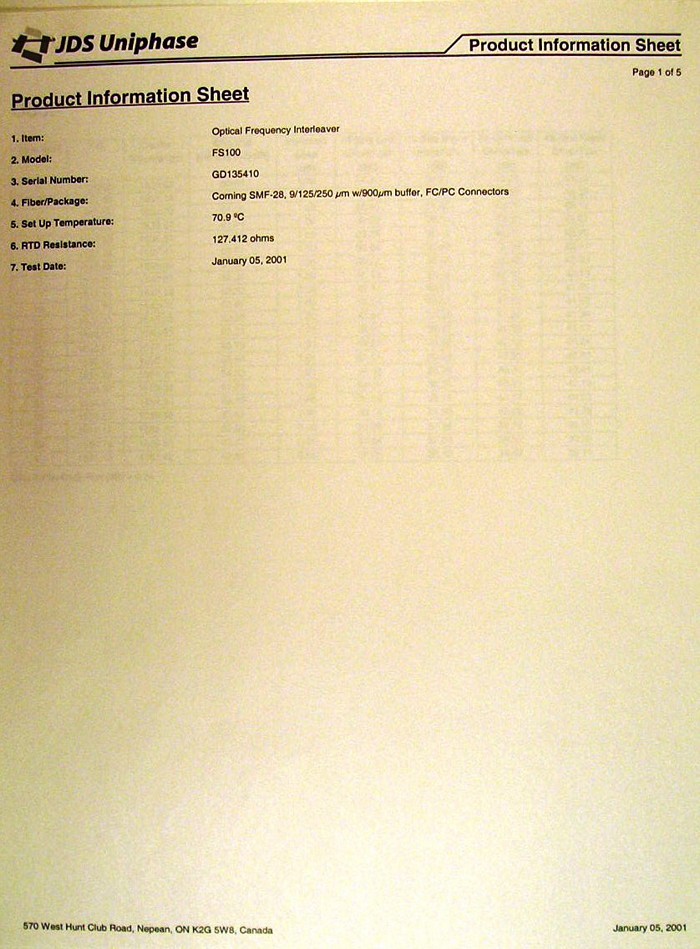

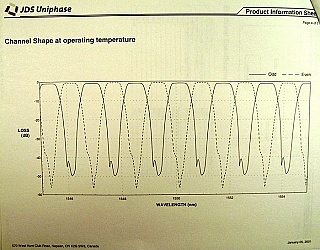

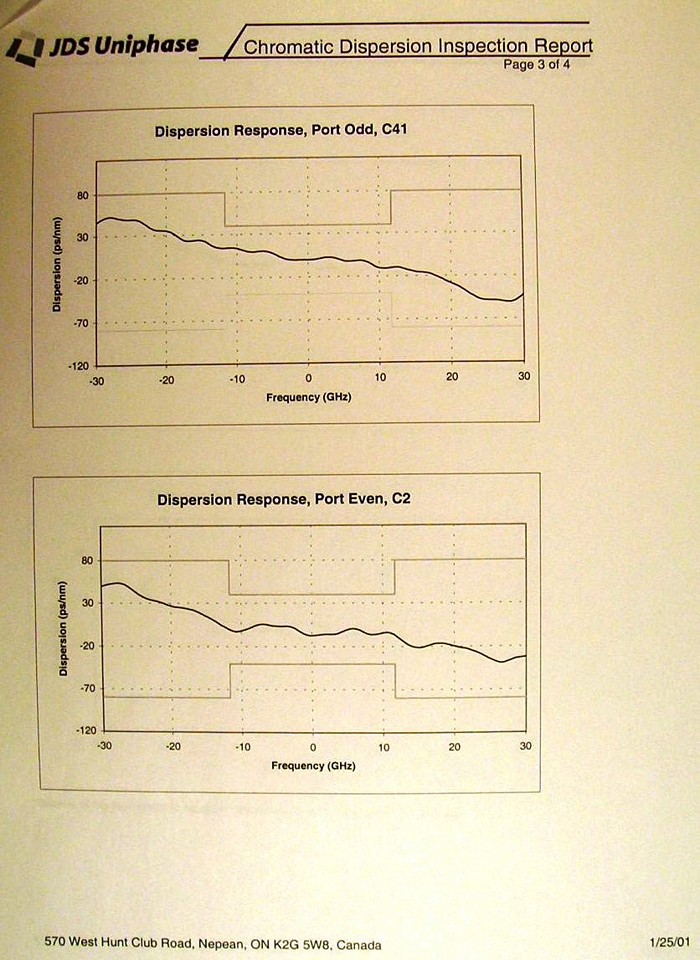

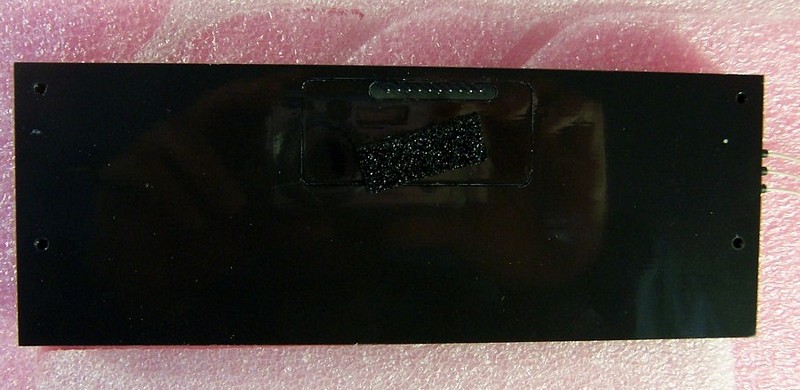

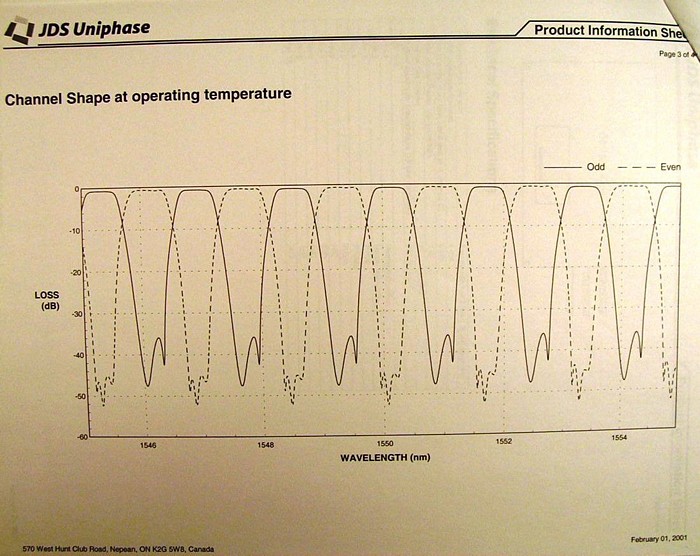

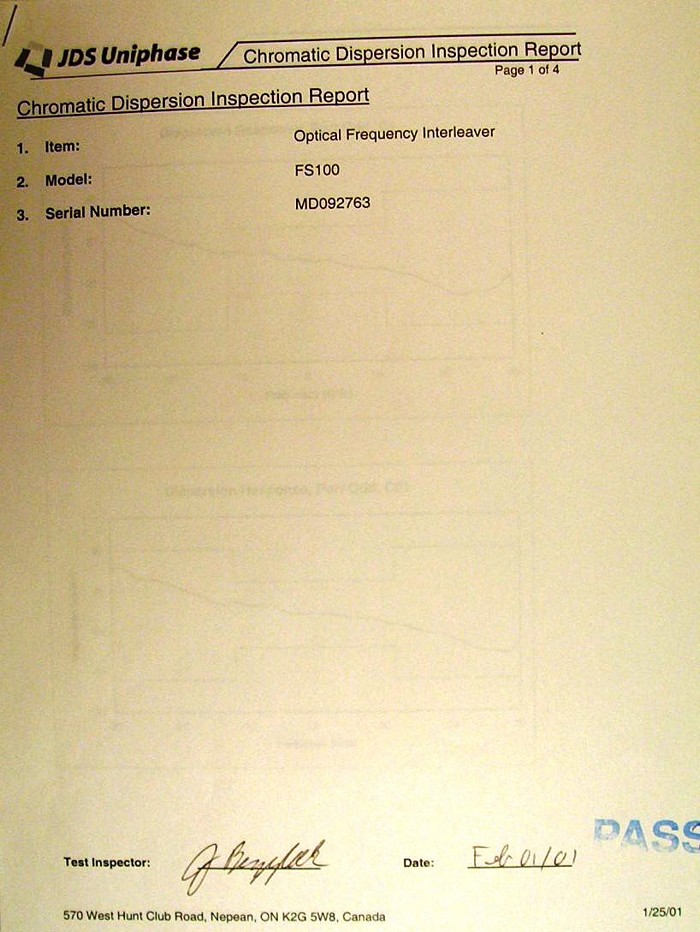

200GHz-to-100GHz C-band interleaver. With FC/PC connectors. See photos belows from actual module for more info. With pinout info on test sheet.

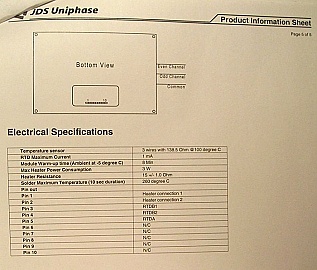

We verified that Pin3: RTDB1 and Pin4: RTDB2 are internally connected. So the pinout is same as the pdf link below. Basically you need connect two heater pins and two RTD tempearture-sensor pins to your temperature controller (many types of temperature controllers support RTD temperature sensor). Then you can easily set interleaver to required temperature (70.9 C).

In stock (Only 3 left in stock)
  • US$460.00
Qty:
Add a different product to compare
    CONDITION:

    New in original product box with actual test sheet.


  • DIM Weight
    1.3000 kg
  • Store Part No.
    FFC-INTL-051C
  • Manufacturers
    • Manufacturer
      jds
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
