25.26km SMF-28 bare fiber spool, with one SC/PC connector

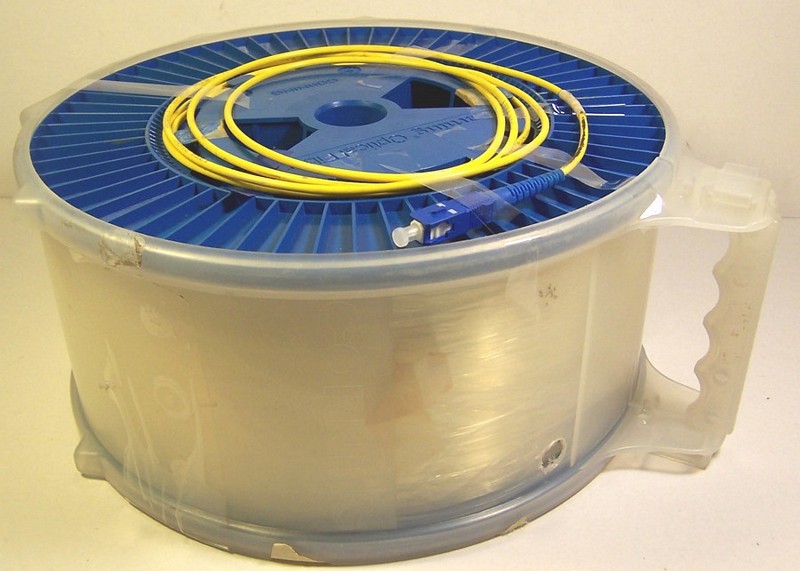

With hard plastic cover over the fiber roll, and there is handle on the plastic cover, so you can easily move the spool around your lab. Both internal end and external end connectors of fiber spool are accessible. With one SC/PC fiber connector in 3mm cable at internal end. You can add a connector by fusion splce by yourself. Or you can ask us to add connector by fusion splice with $20 extra cost at Add fiber connector to optical fiber module by fusion-Splice.

See year 2002 datasheet in 1st pdf link and year 2000 datasheet in 2nd pdf link below.

PDF datasheet 21 kB
Similar-model PDF datasheet 21 kB

CONDITION:

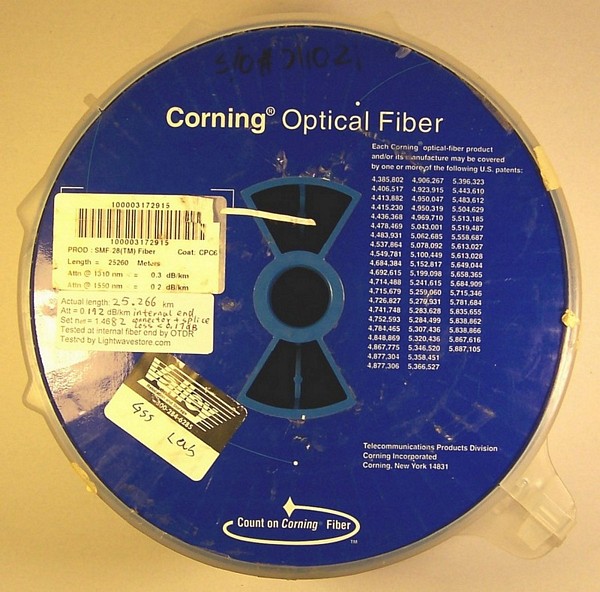

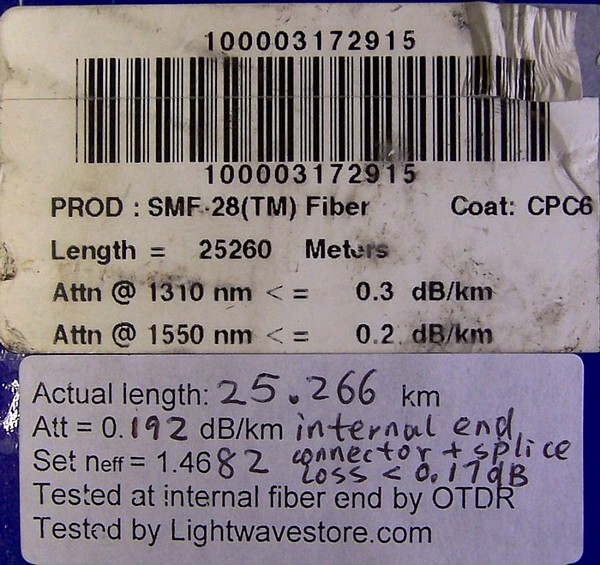

Good cosmetic condition. Fiber roll is in good condition. With hard plastic cover and handle. Fiber attenuation by OTDR is tested good (0.192dB/km at 1550nm) at our lab. The fiber length is measured as 25.266km. In another OTDR test, we cascaded another SMF-28 spool, tested connector plus splice loss of internal fiber end is <0.17dB. All our test result is shown at the label of last photo.

DIM Weight

3.5000 kg

Store Part No.

FSC-SMF-SPOOL-169U

Manufacturers
- Manufacturer
  Corning
