25km Lucent truewave-RS fiber spool. Fiber is cut at spool internal end, so you cannot use it for transmission test.
Next image
Zoom image

25km Lucent truewave-RS fiber spool. Fiber is cut at spool internal end, so you cannot use it for transmission test.


Not rated yet

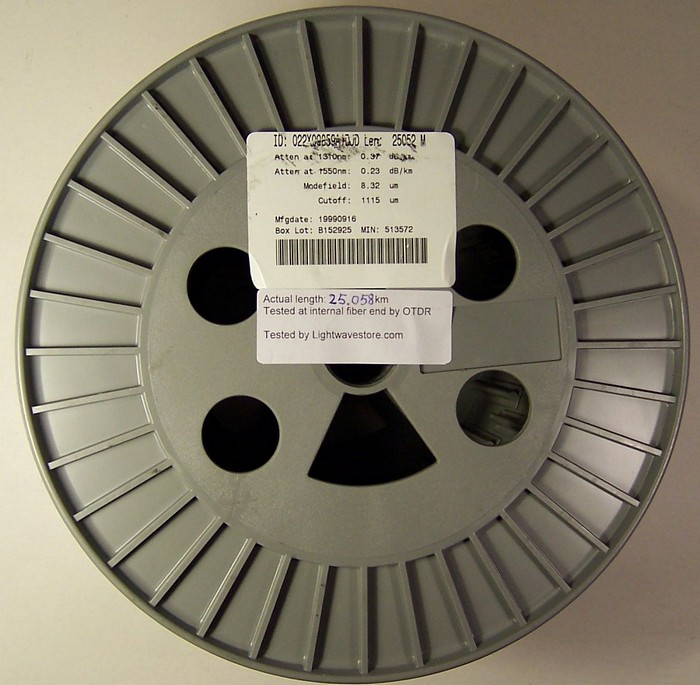

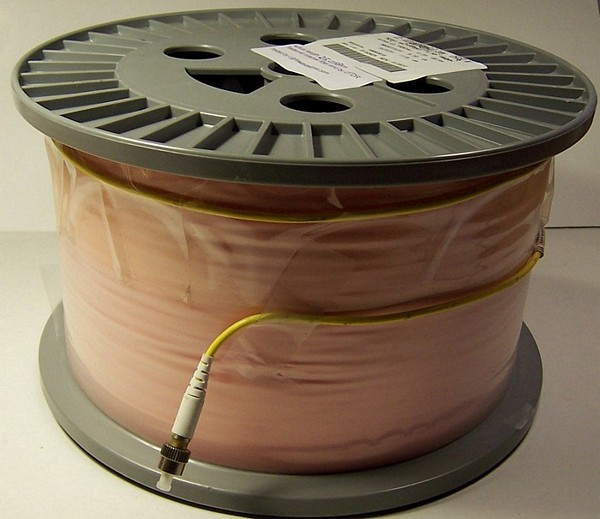

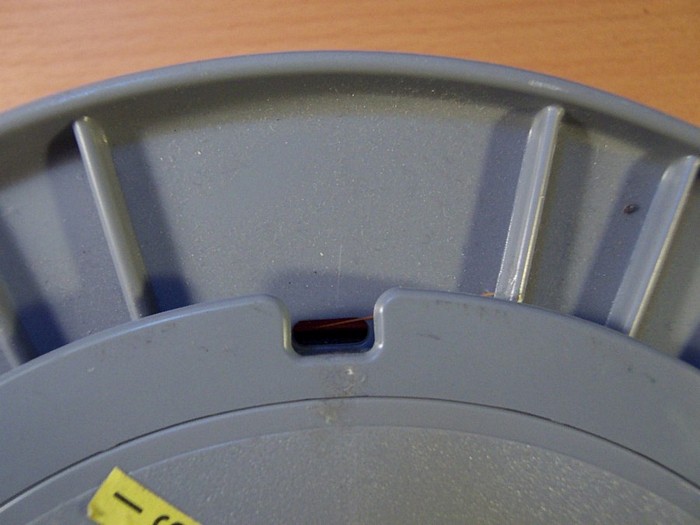

Truewave Reduced Slope (TWRS) fiber. Fiber is cut and not accessible at spool internal end (see last photo below), so you cannot use it for transmission test. With one fiber FC/PC connector only at the external spool end. See year 1998 datasheet in 1st pdf link and year 2003 datasheet in 2nd pdf link below.
Out of stock
  • US$250.00
Add a different product to compare
    CONDITION:
    We believe the fiber is unused at the external end since the fiber coil is covered by original plastic film, but the spool internal end is not accessible. Length is tested as 20.058km by OTDR approximately at our lab, matching original length, and attenuation trace looks good in OTDR test, effective refractive index 1.470 at 1.55um for truewave fiber is applied in OTDR test.

  • DIM Weight
    3.9000 kg
  • Store Part No.
    FSC-NZDSF-SPOOL-010E
  • Manufacturers
    • Manufacturer
      Lucent
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
