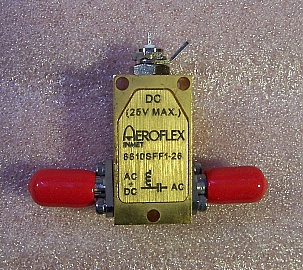

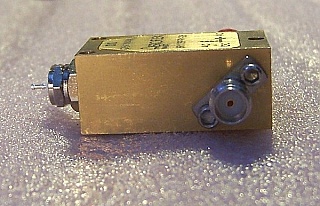

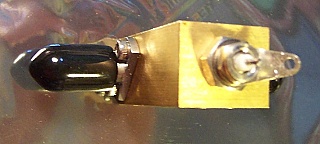

26.5GHz wideband Bias Tee. Aeroflex-Inmet model: 8810SFF1-26
Next image
Zoom image

26.5GHz wideband Bias Tee. Aeroflex-Inmet model: 8810SFF1-26


Not rated yet
Frequency range: 50KHz - 26.5GHz. Two RF ports are female SMA interface. DC port is solder post. See pdf link below for specification. 1.80:1 Max VSWR 1.5dB Insertion Loss at 50kHz to 18 GHz 3.0db Insertion Loss 18 GHz to 26.5 GHz 50 Ohm Impedance 25 Volt maximum DC Voltage 750 mA max DC Current less than 9ps typical rise time Passivated Stainless Steel Connections, Gold Plated Beryllium Copper Conductors, Gold Plated Brass Housing.
Out of stock
  • US$240.00
Add a different product to compare
    CONDITION:
    Looks brand new, except that DC port looks slightly soldered before. Without original manufacture packing. Tested capacitance on sample is 99.4 nF, inductance at DC port is 0.59 mH at our lab.

  • DIM Weight
    0.1000 kg
  • Store Part No.
    EIP-RFPARTS-054D
  • Manufacturers
    • Manufacturer
      Aeroflex
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
