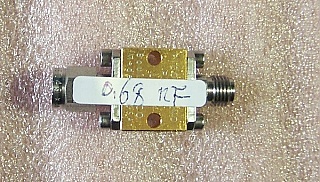

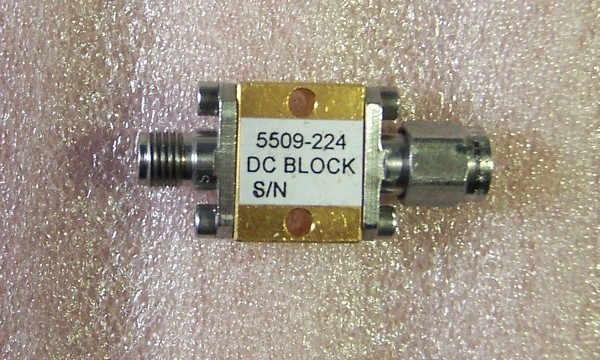

3MHz - 40GHz DC Block. Picosecond Pulse Labs model: 5509-224.
Next image
Zoom image

3MHz - 40GHz DC Block. Picosecond Pulse Labs model: 5509-224.


Not rated yet
Male to female SMA 2.92mm connector interface. 5509 DC block with 2.92mm connector can work up to 40GHz. We verified the connector type is 2.92mm rather than 2.4mm, based on this principle: 2.92mm is compactible with 3.5mm SMA (they can easily screw in with each other), not compatible with 2.4mm connector. Since tested capacitance is about 0.68 nF, so the low frequency 3dB-point is near 3MHz.
In stock (Only 1 left in stock)
  • US$280.00
Qty:
Add a different product to compare
    CONDITION:

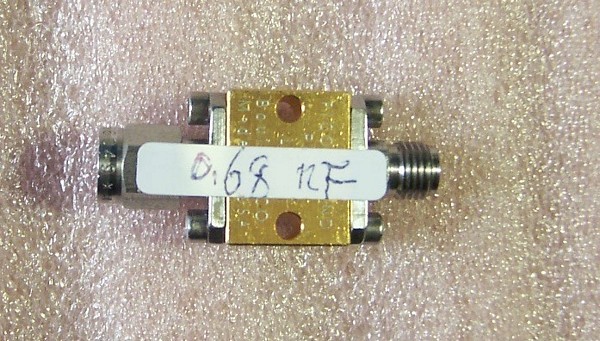

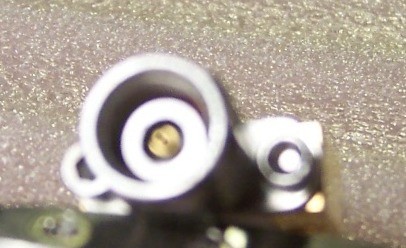

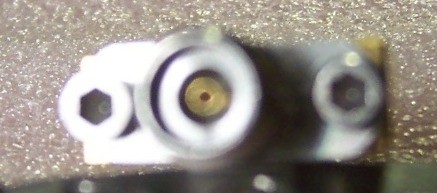

    very good cosmetic condition. Looking inside of male and famle adapter interface, they look very good (see last two photos below). Tested capacitance results on these four devices : about 0.68 nF at our lab.

  • DIM Weight
    0.0400 kg
  • Store Part No.
    EIP-RFPARTS-020F
  • Manufacturers
    • Manufacturer
      Picosecond
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
