40Gb/s optical electro-absorption (EA) modulator, for 1.55um C band. Model: OM5757C-CTM388. It comes with one 20mW 1554.94nm PMF laser, Fitel P/N: FOL15DCWB-A81-19280. It may be reserved for Mr. Z

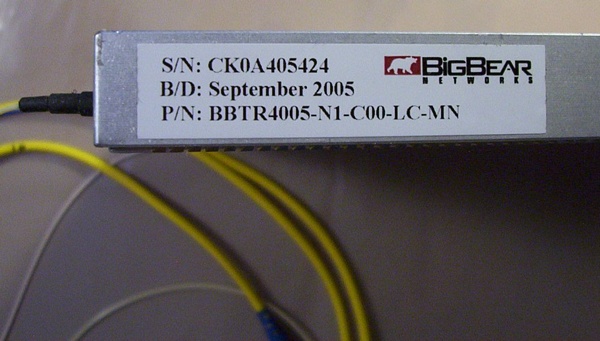

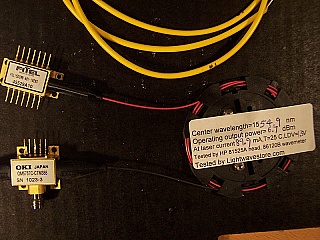

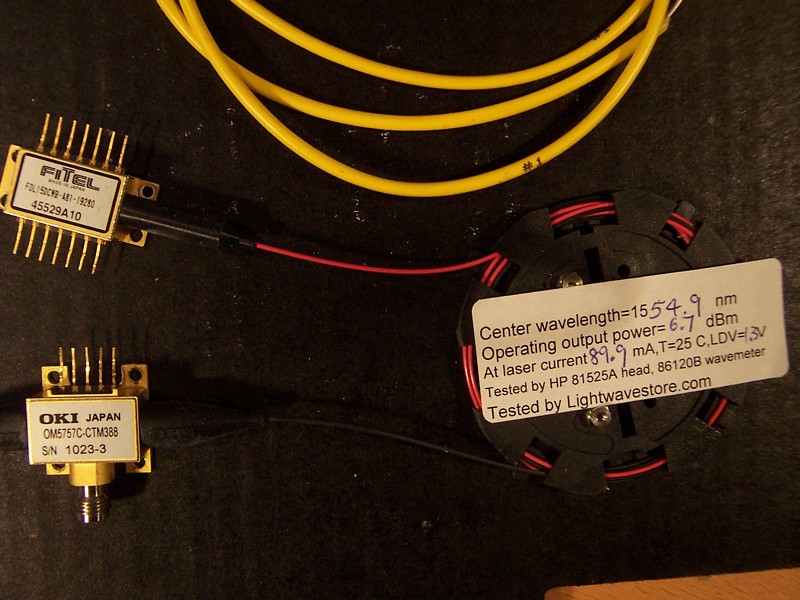

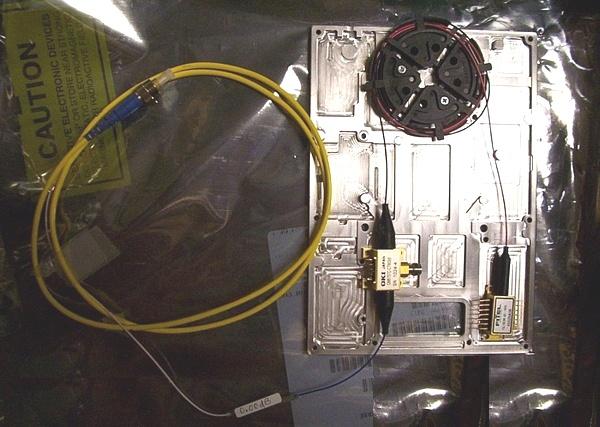

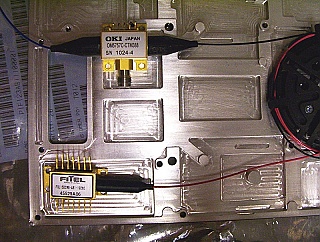

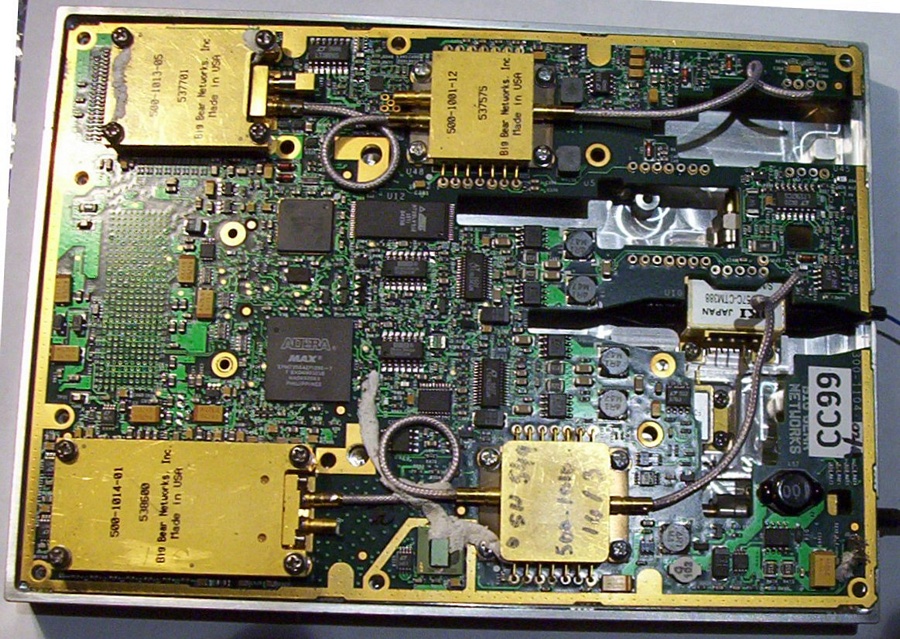

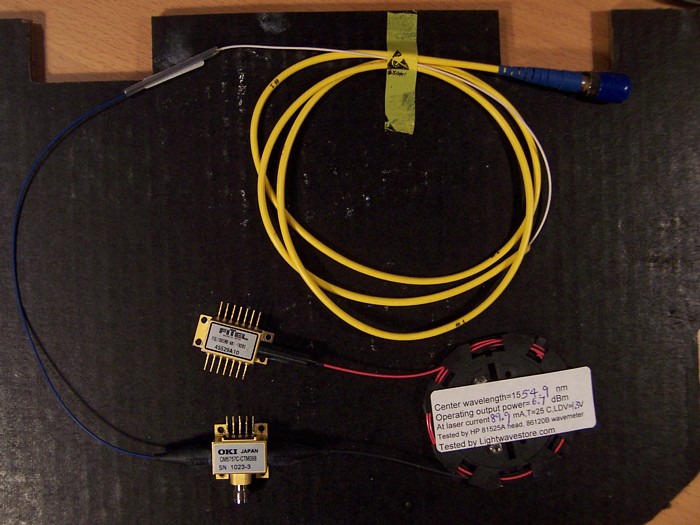

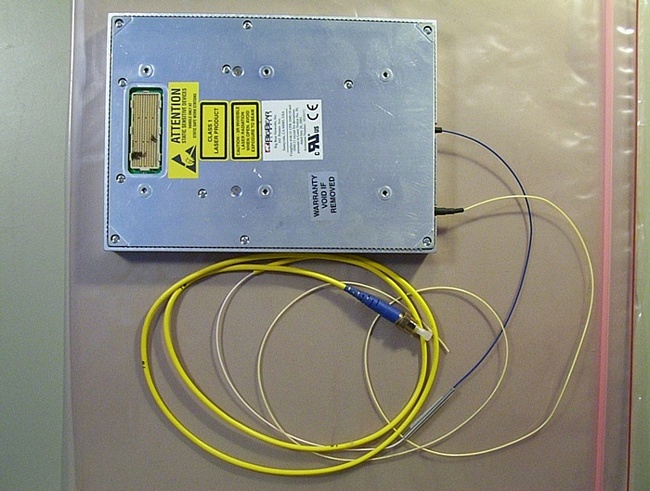

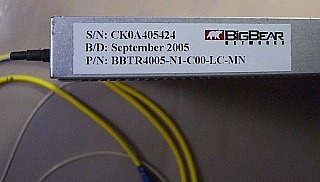

It may be reserved for Mr. Z. Please contact us before submit online order.The item for sale only includes laser and modulator, see actual item and our test result label only at the last two photos below ! Other photos are for other sold sold sample and test background.Full C operation. We normally do not sell the the EA modulator or laser separately, since these two devices share same PM fiber and we do not have PMF fusion splicer. This sale only includes EA modulator and laser module of 1st two photos. The butterfly socket of our laser mount is not incluided in this sale.See similar mode datasheet at 1st and 2nd pdf link below. See laser datasheet at last pdf link below. We removed it from 40Gb transponder module: BBTR4005, see last three photos below, and also see 40Gb transponder datasheet at the 3rd pdf link below.

CONDITION:

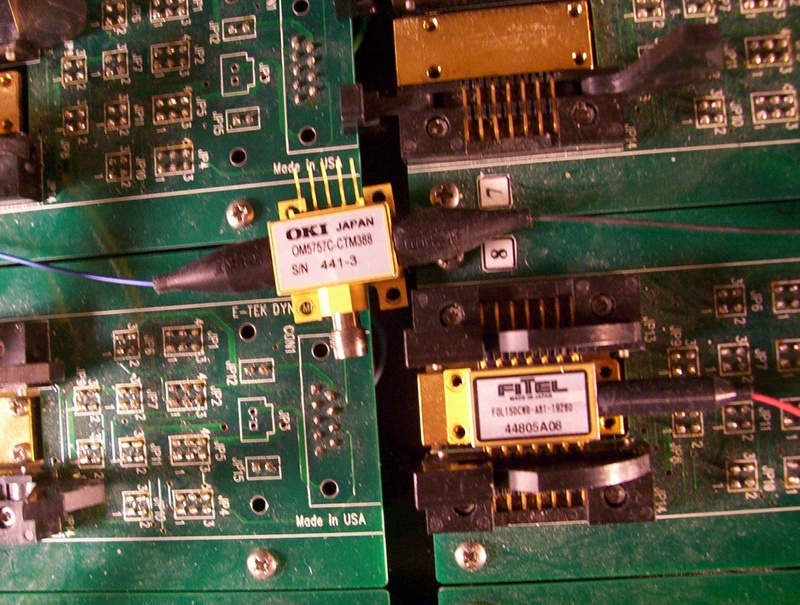

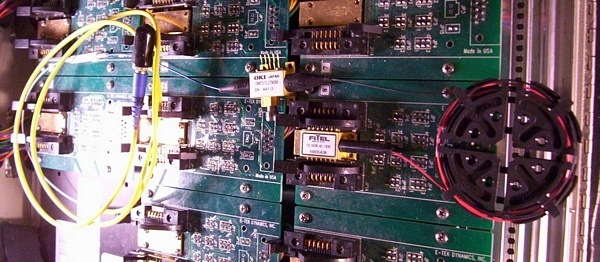

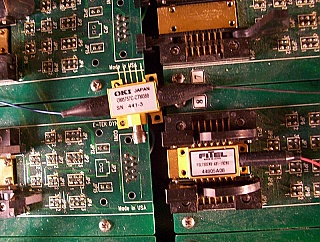

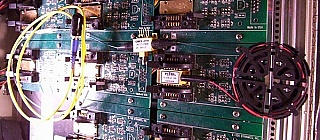

We removed it from 40Gb transponder module: BBTR4005, see last three photos below, and also see 40Gb transponder datasheet at the 3rd pdf link below. It has never been soldered. EAM output fiber is a little short, but we fusion-spliced with long SMF-28 fiber pigtail with FC/UPC connector with very low splice loss (normally 0.00dB-0.03dB). Laser is verified to send out expected optical power passing through the EA modulator, using laser mount/fixture (the 3rd and 4th photos). We will try to test at 20MHz modulation or even 1.3GHz later when we have time.

DIM Weight

1.0000 kg

Store Part No.

OSC-MOD-40Gb-400C

Manufacturers
- Manufacturer
  OKI
