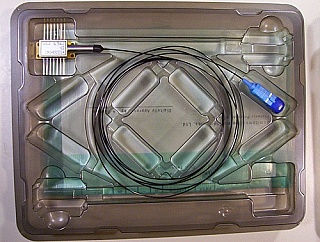

40mW 1552.xnm 14-pin butterfly DFB laser module. SEI model: SLT5411-CC. May be reserved for a Jananese buyer.
Next image
Zoom image

40mW 1552.xnm 14-pin butterfly DFB laser module. SEI model: SLT5411-CC. May be reserved for a Jananese buyer.


Not rated yet
It may be reserved for a Jananese buyer.PMF with SC/PC connector (PMF is verified by fiber scope). 40mW CW Light Source for DWDM System with external modulation. Built-in TEC, Thermistor, Monitor PIN PD and Optical Isolator. The peak wavelength is between 1547-1560nm in manufacturer specification, We checked test sheets of actual peak wavelengths of two lasers: 1552.1nm and 1552.7nm. Only these two lasers are for sale. Other 1553.xnm and 15547.xnm are reserved for our project only.PMF slow axis aligned at connector key, verified by fiber scope at our lab. It is telecom standard. Discount is available for medium-qty order.
Out of stock
  • US$550.00
Add a different product to compare
    CONDITION:

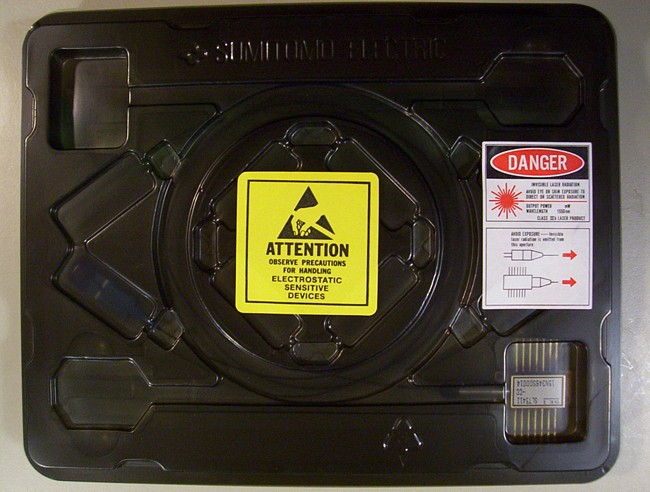

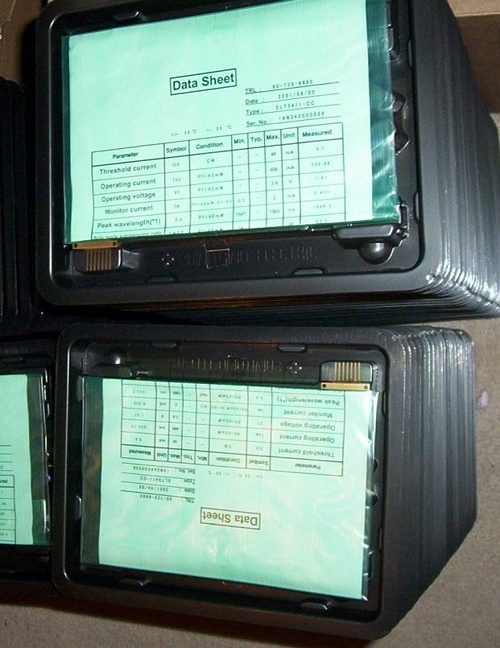

    new in original product case. With test sheet. Output and wavelength of many samples are tested very good at our lab.

  • DIM Weight
    0.4000 kg
  • Store Part No.
    OSC-LDPM-C-021D
  • Manufacturers
    • Manufacturer
      Sumitomo
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
