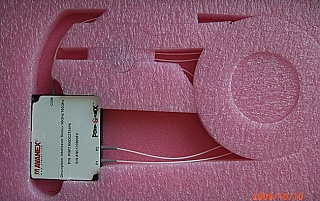

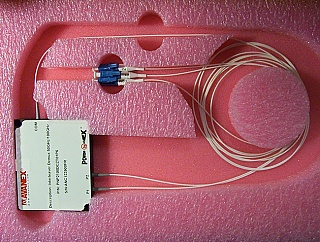

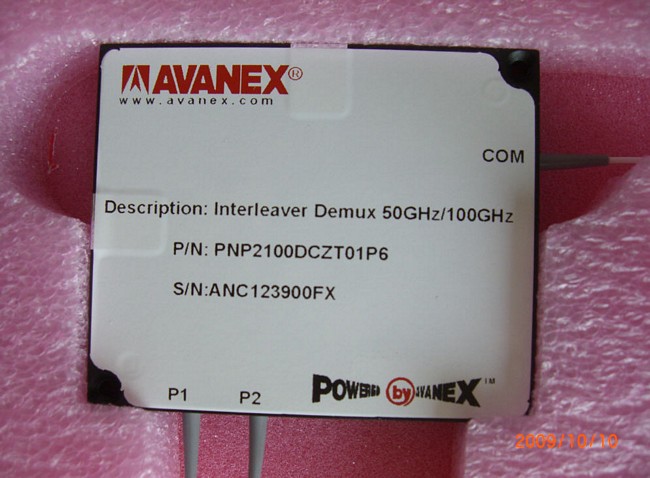

50/100GHz C-band interleaver. Passive module, not need TEC. Demux-type. Avanex Model: PNP2100DCZT01P6.

100GHz-to-50GHz C-band demux interleaver. Athermal package, so temperature controller is not required. With LC/PC connectors. Made in Oct. 2008. Bookham and Avanex Merge Into a New company -- Oclaro, see htm link below for Oclaro general specification. Due to its wide and flat passband feature, it should be also OK as mux-type interleaver.

CONDITION:

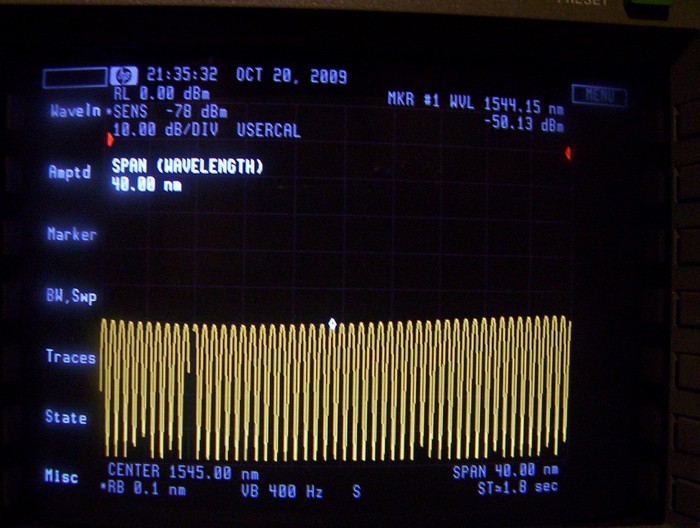

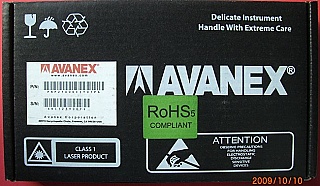

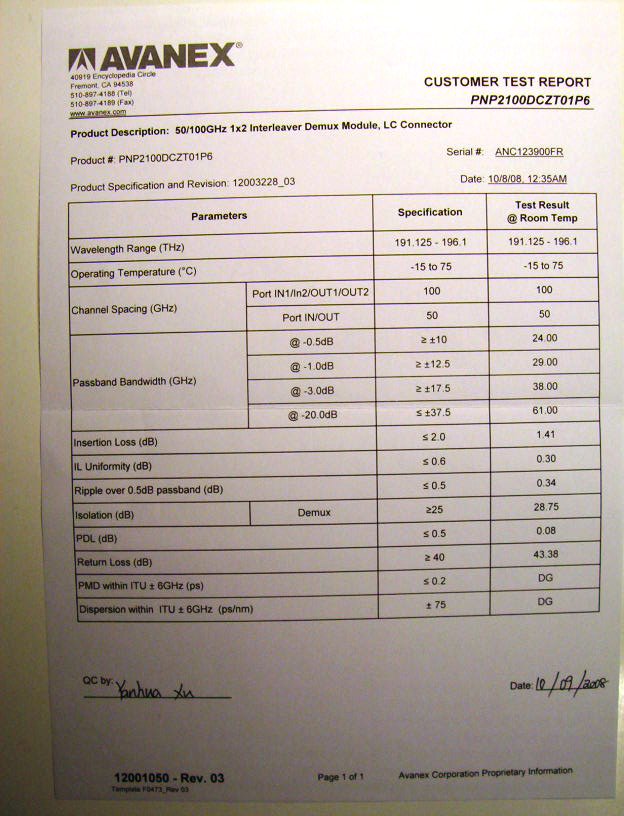

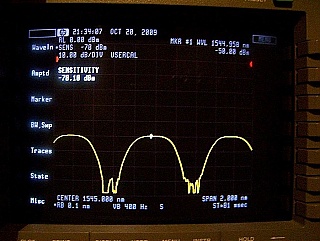

New in original product box with actual test sheet. Sample tested very good with OSA at 0.1nm RBW under broadband source at our lab, see spectrum at last two photos(commont port is input, port 2 is output), the passband looks flat-shape (Note: absolute wavelength of OSA is not fully calibrated). Estimated insertion loss in our test is about 1dB or slightly higher. P1 port output spectrum also looks OK in our test.

DIM Weight

1.2000 kg

Store Part No.

FFC-INTL-010C

PDF datasheet 18.6 kB
HTML datasheet 18.6 kB

Manufacturers
- Manufacturer
  Avanex
