50km Pure-Silica-core bare fiber spool, Ultra low loss. With two SC/PC connectors.

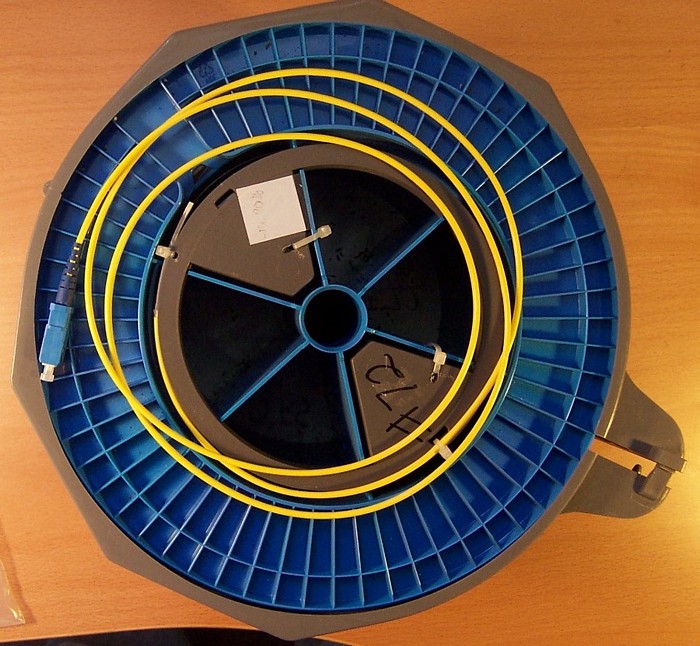

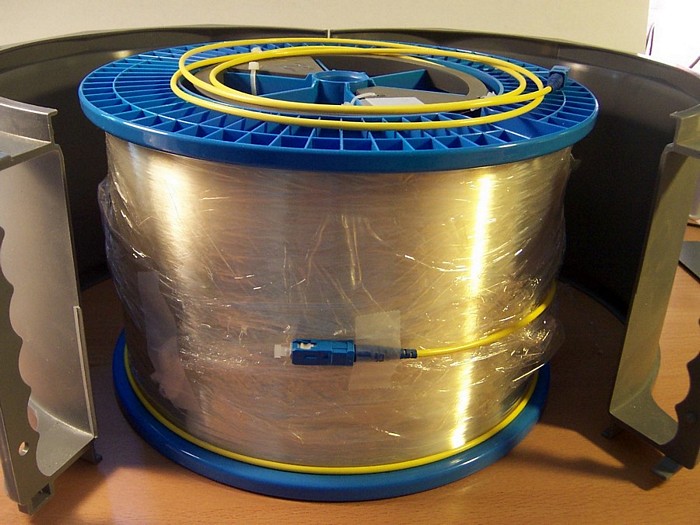

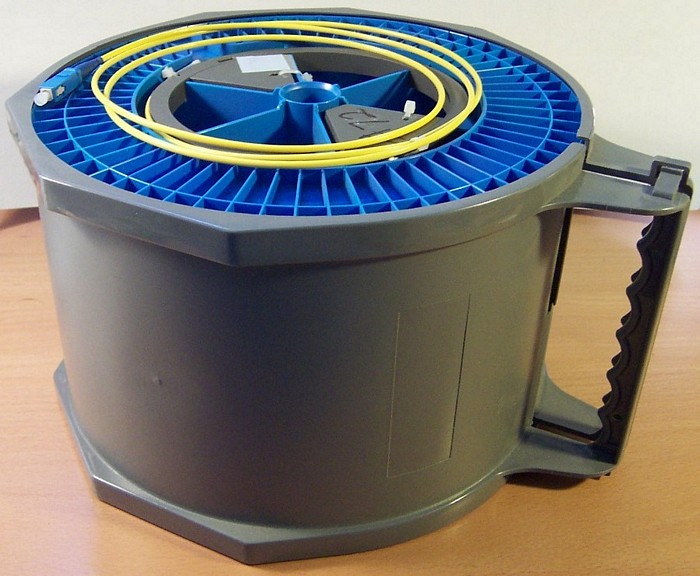

With hard plastic cover over the fiber roll, and there is handle on the plastic cover. Both internal end and external end connectors of fiber spool are accessible, so you can use it for optical transmission test. The spool is with SC/PC SM fiber connectors in 3mm-cable at both fiber ends. We can change connector type by fusion splice, and you need add $15 for each splice, see details at http://www.lightwavestore.com/store/product.php?productid=19062&cat=494&page=1

PDF datasheet 19.4 kB

CONDITION:

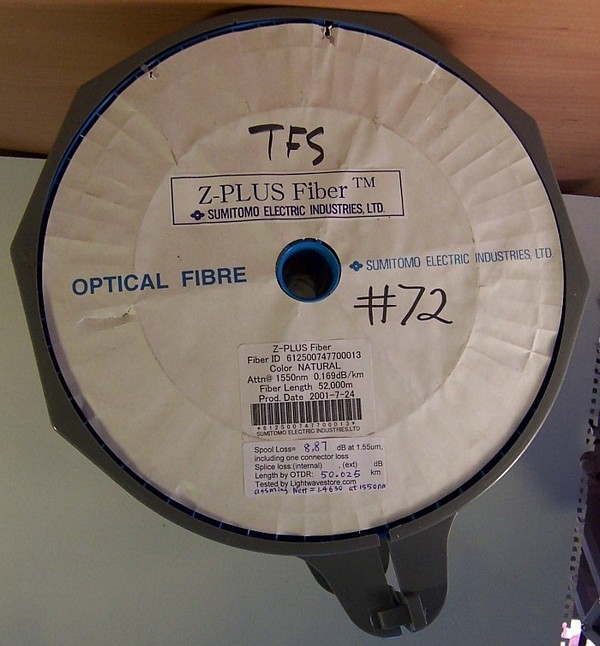

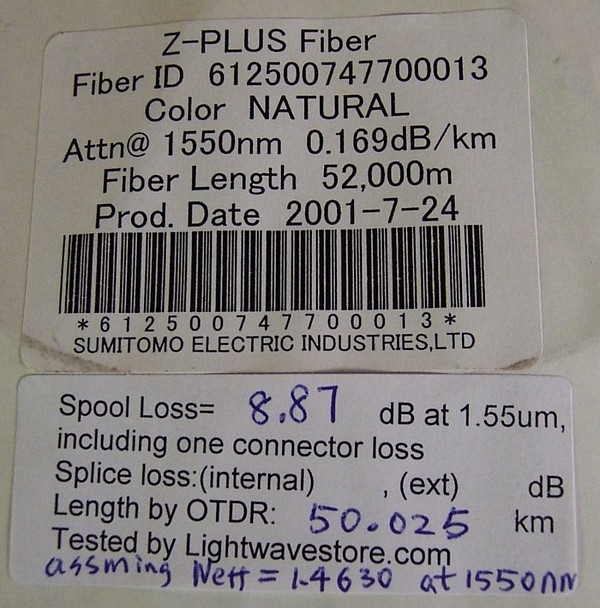

Excellent cosmetic condition. Fiber roll is neatly and closely winded on the drum. Fiber loss is verified very good and matches the product label well within test accuracy tolerance, as shown in the label of last photo below. Tested fiber length is from 50.025km by OTDR at our lab, which is within instrument accuracy, considering the factors of group index of refractive deviation (we set Neff as 1.4630) and extra fiber pigtail length spliced on each end of fiber spool. So we verified that fiber spool is in original full length 50km.

DIM Weight

7.4500 kg

Store Part No.

FSC-SMF-SPOOL-394C

Manufacturers
- Manufacturer
  Sumitomo
