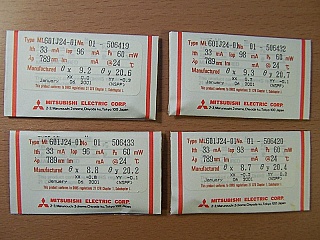

785nm 60mW AlGaAs semiconductor laser diode. Without fiber interface. Package: TO-18. Mitsubishi model: ML601J24-01

The Mitsubishi ML601J24-01 is an infrared laser diode with a wavelength around 785nm. It does not have a built in photo diode, therefore will need a driver circuit operating in automatic current control (ACC) mode. The case common pin is laser diode cathode. SPECIFICATIONS: Output Power: 60mW typical, 70mW maximum. Wavelength: 785nm typical, +/- 10nm Operating Voltage: 1.8 Volts typical Threshold Current: 40mA typical Operating Current: 95mA typical Monitor Current: No internal photodiode . Package: TO-18, 5.6mm diameter base. ML6XX24 is a high power AlGaAs semiconductor laser which provides a stable, single transverse mode oscillation with emission wavelength of 785nm and standard pulse output power of 95 mW. ML6XX24 is produced by a MOCVD crystal growth method which is excellent in mass production and characteristics uniformity. This is a high-performance, highly reliable, and lowoperation-current semiconductor laser. FEATURES • High pulse output (95mW) • Small astigmatic distance • Low operation current APPLICATION 8X CD-R/RW Drive

PDF datasheet 19.4 kB
