1322.42nm, or 1323.59nm, or 1343.76nm 12dBm (15.85mW) DFB analog laser module. 14-pin butterfly. Sumitomo P/N: SLV5410-QF/HL1-3xx. With SC/APC fiber connector. New
Next image
Zoom image

1322.42nm, or 1323.59nm, or 1343.76nm 12dBm (15.85mW) DFB analog laser module. 14-pin butterfly. Sumitomo P/N: SLV5410-QF/HL1-3xx. With SC/APC fiber connector. New


Not rated yet

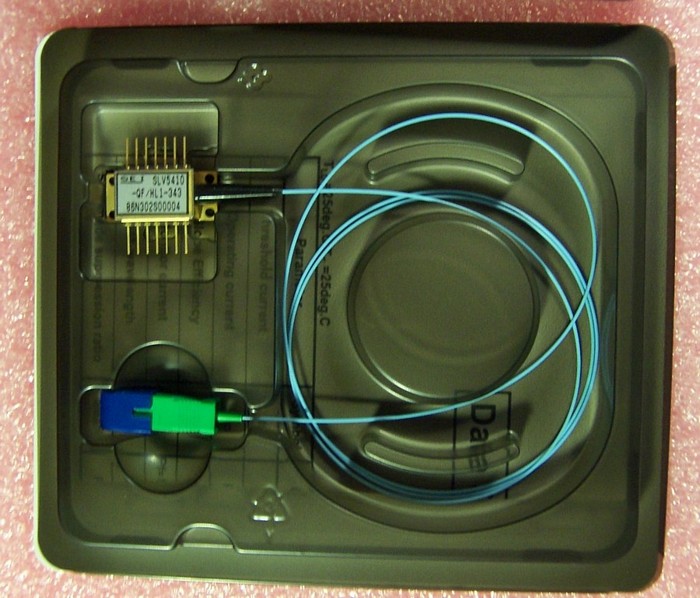

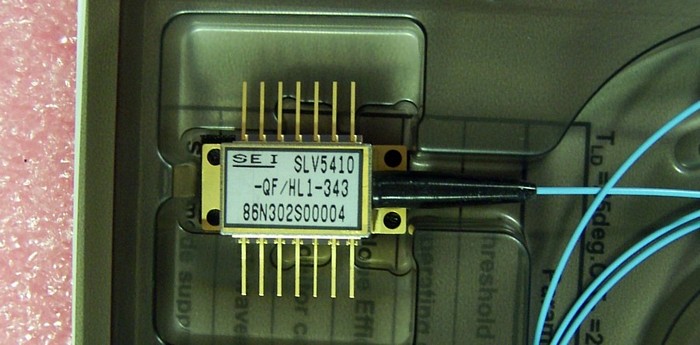

For analog CATV application. With SC/APC single-mode fiber connector, 900um-buffered fiber. SMF is verified under fiber scope at our lab. 14-pin butterfly package, straight leads.

The specification of 1st pdf link below only shows max output power 10dBm with SLV5410-QD (D-series). The manufacture test data (including major parameter specification) at last 3 pdf links below show output power is 12dBm for this SLV5410-QF model (F-series).

For P/N: SLV5410-QF/HL1-343, we have checked all manufacture test data of 19 samples, the actual wavelength data are from 1343.1 to 1344.2nm at 25 C temperature. To achieve nominal wavelength 1343.76nm, you can adjust temperature, as shown at "Manufacturer test data of sample 1", "Manufacturer test data of sample 2", "Manufacturer test data of sample 3" pdf links below.

For P/N: SLV5410-QF/HL1-322, we have checked all manufacture test data of 23 samples, the actual wavelength data are from 1321.7 to 1322.9nm at 25 C temperature. You can adjust temperature to achieve nominal wavelength 1322.42nm. See 3-sample manufacturer test data at "Manufacturer test data of sample 4" pdf link below.

For P/N: SLV5410-QF/HL1-323, we have checked all manufacture test data of 16 samples, the actual wavelength data are from 1322.9 to 1324.2nm at 25 C temperature. You can adjust temperature to achieve nominal wavelength 1323.59nm. See 3-sample manufacturer test data at last pdf link below.

Store Part No. Choose wavelength and P/N Qty Price Buy
OSC-LDS-A1300-100C0 1322.42nm, SLV5410-QF/HL1-322 11 US$266.00 + -
OSC-LDS-A1300-100C1 1323.59nm, SLV5410-QF/HL1-323 11 US$264.00 + -
OSC-LDS-A1300-100C2 1343.76nm, SLV5410-QF/HL1-343 12 US$247.00 + -
Add a different product to compare
  • DIM Weight
    0.2500 kg
  • Store Part No.
    OSC-LDS-A1300-100C0
CONDITION:

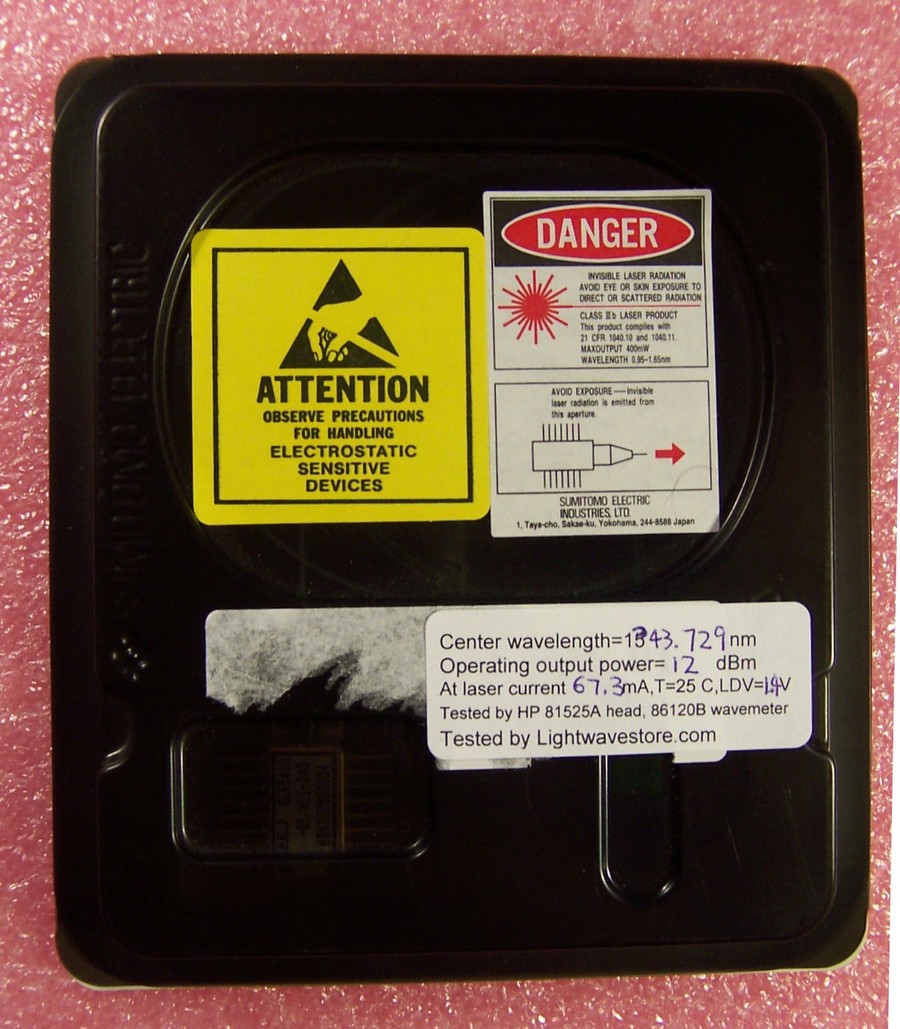

new in original product pack, with actual test data (see last 5 pdf links above). Sample tested well at our lab, see our test data at last photo.

  • Choose wavelength and P/N
    1343.76nm, SLV5410-QF/HL1-343, 1323.59nm, SLV5410-QF/HL1-323, 1322.42nm, SLV5410-QF/HL1-322
  • Manufacturers
    • Manufacturer
      Sumitomo
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
