9.303km SMF-28 bare fiber spool, with two FC/APC connectors.

We have added FC/APC SMF-28 fiber connectors at both fiber ends, by fusion-splice (connectors are top quality brand: Seikoh Giken made for JDS, with 900um buffer fiber). Both internal end and external end of fiber spool are accessible, so you can use this spool for optical transmission test. See year 2002 datasheet in 1st pdf link and year 2000 datasheet in 2nd pdf link below.

CONDITION:

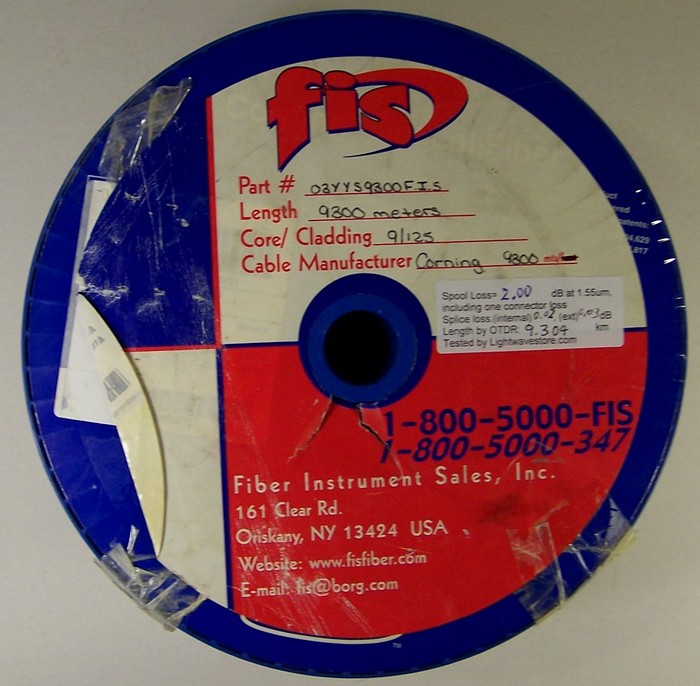

Fiber roll is in good condition. Fiber loss and fiber length are verified good and match the product label well within test accuracy, as shown at the label of last photo below. Original Corning product test data was covered by FIS label of original buyer, we peeled off FIS label, we can only see opposite side of Corning product test data, it shows: SMF-28(TM), CPC6, 9303 meter, Attn @ 1310 nm <= .340 dB/km, Attn @ 1550 nm <= . 212 dB/km.

DIM Weight

3.5000 kg

Store Part No.

FSC-SMF-SPOOL-053C

PDF datasheet 21.1 kB
Similar-model PDF datasheet 21.1 kB

Manufacturers
- Manufacturer
  Corning
