970-985nm 110mW kink-free pump laser with FBG stabilizer. JDS product code: SDLO-26-8000-110-TE

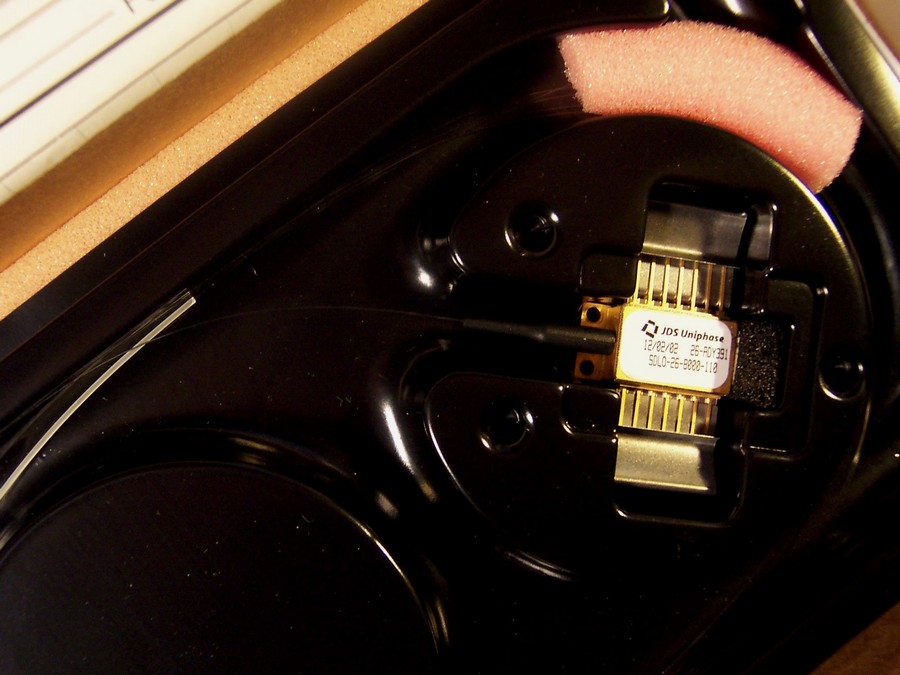

Kink-free power > 110mW, operating power : 100mW. Peak wavelength: min: 970nm, max: 985nm. 250um-coating bare fiber pigtail without connector. There is about 1-inch long FBG with 900um tube on the fiber, see the 2nd photo below. The JDSU 2600 Series of 980 nm pump modules utilizes a planar construction with chip on subcarrier. The high power JDSU laser chip is hermetically sealed in a low-profile, epoxy-free and flux-free 14-pin butterfly package, fitted with a thermistor, thermoelectric cooler, and monitor diode. The module meets the stringent requirements of the telecommunications industry, including Telcordia™ GR-468-CORE for hermetic 980 nm pump modules. The 2600 Series pump module uses fiber Bragg grating stabilization to “lock” the emission wavelength and provides a noise-free narrowband spectrum, even under changes in temperature, drive current, and optical feedback.Wavelength selection is available for applications requiring the highest performance in spectrum control with the highest powers available. Key Features High kink-free powers to 180 mW Low-profile, epoxy-free, and flux-free 14-PIN butterfly planar package Fiber Bragg grating stabilization Wavelength selection available Integrated thermoelectric cooler, thermistor, and monitor diode High dynamic range Excellent low power stability Applications Dense wavelength division multiplexing (DWDM) EDFAs for small package designs High bit rate, high channel count EDFAs CATV distribution Compliance Telcordia GR-468-CORE

PDF datasheet 20.5 kB
PDF user guide 20.5 kB
Manufacturer test data of sample 1 20.5 kB

Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal	Discount
From $500	2 %
From $750	3 %
From $1000	4 %
From $1250	5 %
From $1500	6 %
From $1750	7 %
From $2000	8 %
From $2500	9 %
From $3000	10 %

Choose sample
Without manufacture test data, With manufacture test data in last pdf link
