974nm pump laser with FBG stabilizer with PMF.  >400mW kink-free output power. Most of samples with kink-free power test data >600mW, so you may use them over 545mW. Oclaro or II-VI model: LC96A74P-20R. Brand new products directly from manufacturer.
Next image
Zoom image

974nm pump laser with FBG stabilizer with PMF. >400mW kink-free output power. Most of samples with kink-free power test data >600mW, so you may use them over 545mW. Oclaro or II-VI model: LC96A74P-20R. Brand new products directly from manufacturer.


Not rated yet

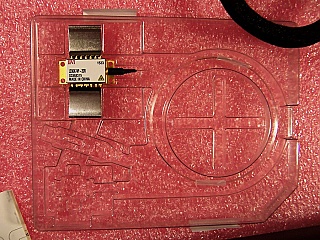

You can get 10% discount if you buy 8pc, 5% discount if buy 4pc. They are same as store product code OSC-PUMP-980-034E, but price is classified by kink-free power test data. 250um-coating bare PM fiber pigtail without connector. See sample manufacture test data at the last 5 pdf links below. See datasheet at 1st two pdf links below (1st one is from Oclaro website, 2nd one from manufacturer email). For LC96A74P, now the manufacturer is II-VI Corporation from Germany, who purchased the product line from Oclaro in 2014. Actual products were made in July, 2015 with brand name "II-VI" (as shown at last 4 photos below, see test data at sample-4 and sample-5 pdf links below) or made in Sept. 2014 with brand name "Oclaro"(as shown at 1st 3 photos below, see test data at sample-1 sample-2, and sample-3 pdf links below). There were 4pc with "II-VI" and 4pc with "Oclaro" when we receive these products. The LC96P series pump module utilises a Fiber Bragg Grating design for enhanced wavelength and power stability performance. This product has been designed to ensure superior wavelength locking over drive current, temperature and optical feedback changes. For this Oclaro model: LC96A74P-20R, kink-free output power of actual test data is normally much larger than 400mW (see three samples in last 3 pdf links below), so customers can use them at much higher than 365mW in their actual system products. For example, manufacturer confirms that "If the LC96A74P-20R sample meets a minimum kink free power of 500mW, at a drive current of 950mA or less, then they can be operated at 455mW over life. There are no additional ageing considerations to take in to account due to the pump being used at a higher power." This thumb of rule is quite accepted by EDFA makers, especially for Oclaro LC96 pump lasers. Kink-free power test data of all our samples are at least 996mA, so max operating power can be chosen around 950mA(also about 10% margin for current). For the PM fiber performance and fusion: PMF over SMF on 980nm pump laser has better spectrum stability and SMSR performance. So PM fiber is better than SM fiber usually, especially at high power, but it is not so huge. As for 980nm, the pump power will shift to signal power finally, so the difference could be neglected. For the fusion between PM fiber and SM fiber, PMF splicer is better. SMF splicer is still ok, you need choose special splice program or you make your own program. The key is, you should choose the right splicing type: cladding alignment. So the thin core will insert into the thick core totally.
This item is out of stock
  • US$550.00
Add a different product to compare
    CONDITION:
    new in original product case, with actual manufacture test sheet (see last 5 pdf links above, the sample-4 pdf link includes 2-page for 2-samples). Brand new products directly from manufacturer. Update on 2016: 3 new samples: 619mW at 996mA, 620mW at 996mA, 631mW at 997mA (all with brand name II-VI) have been tested matching manufacture test data P(mW) vs I(mA) well at our lab (our tested power result is 4% under-estimated due to 4% reflection at the end of fiber).

  • DIM Weight
    0.3900 kg
  • Store Part No.
    OSC-PUMP-980-034F1
  • Choose Kink-free power of test data

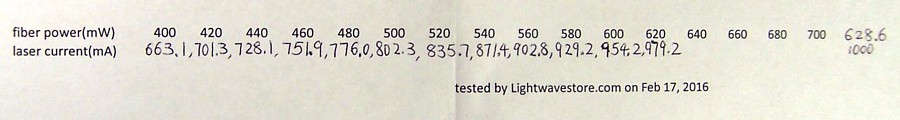

    790mW at 1202mA (with brand name Oclaro), 784mW at 1192mA (with brand name Oclaro), 779mW at 1202mA (with brand name Oclaro), 730mW at 1119mA (with brand name Oclaro), 717mW at 1068mA (with brand name Oclaro), 631mW at 997mA (with brand name II-VI)(tested good, see our test result at photo 9 below), 620mW at 996mA (with brand name II-VI)(tested good, see our test result at photo 8 below), 619mW at 996mA (with brand name II-VI), 616mW at 996mA (with brand name II-VI), 597mW at 1024mA
  • Manufacturers
    • Manufacturer
      Oclaro
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
