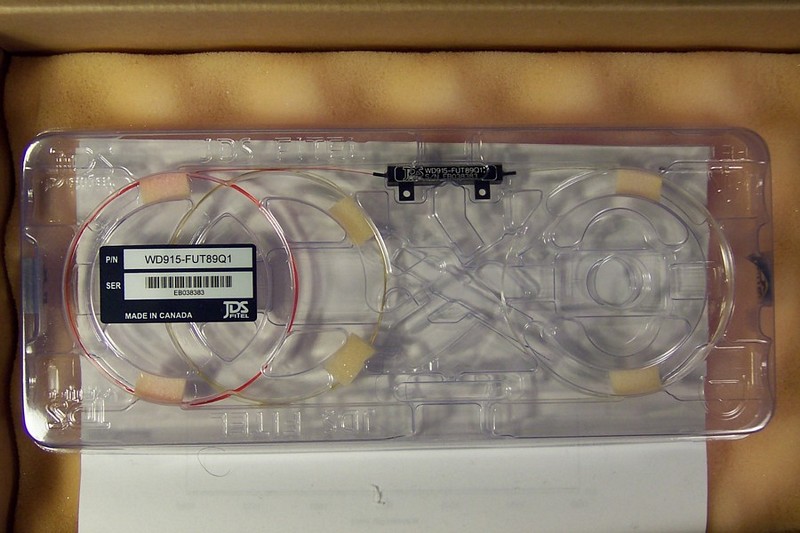

980/1550nm wideband WDM combiner, very high isolation, JDS P/N: WD915-FUT89Q1


Not rated yet
(965-995)nm / (1520-1580)nm wideband WDM coupler (is also called pump-signal combiner). It seems offer higher isolation than other models, though loss may be a little higher than other models. Must-have component for 980nm-laser-based EDFA/EDWA 1.55um optical fiber amplifier.

With 250um fiber pigtails, no connectors. CS980 fiber at pump port. See the 1st pdf link below for general datasheet.
Out of stock
  • US$33.00
Add a different product to compare
    CONDITION:

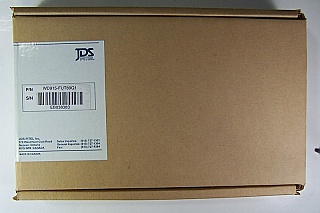

    new in original product pack, with manufactue test sheet, see last pdf link above. To save shipping cost, we will remove the original paper box (see lat photo below) in shipping.

  • DIM Weight
    0.2600 kg
  • Store Part No.
    OFC-WDM-CP-110C
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Manufacturers
    • Manufacturer
      jds
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
