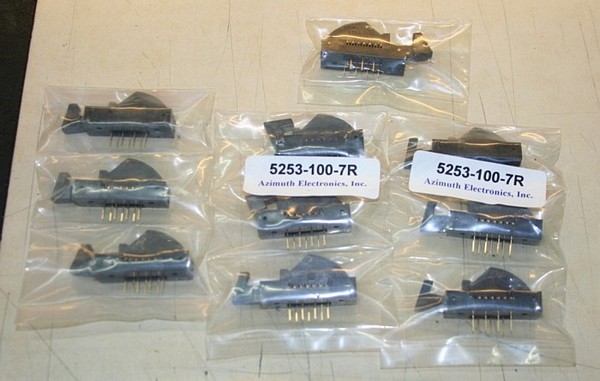

A pair of 7-pin butterfly terminal/socket with clamp, to make 14-pin butterfly laser mount. Azimuth P/N: 5253-100-7-S and P/N: 5253-100-7-R

A pair of 7-pin butterfly terminal/socket with clamp, to make 14-pin butterfly laser mount. Azimuth P/N: 5253-100-7-S and P/N: 5253-100-7-R

It is same or similar to as the socket used in Newport 740 series and ILX LDM 4980 series 14-pin butterfly laser mounts (see last 2 pdf links below), you may be able to replace the sockets of Newport or ILX laser mount. There are three different pin version/profiles 5253-100-7-S/R, 5253-100-7-S1/R1, 5253-100-7-S2/R2, you have to check your PCB of laser mount to figure out which version fits your PCB. Price is for one pair of 7-pin terminal/socket only.

Manufacturers
- Manufacturer
  Azimuth
