AMP Corelink mechanic splice for SMF & MMF fiber
Next image
Zoom image

AMP Corelink mechanic splice for SMF & MMF fiber


Not rated yet

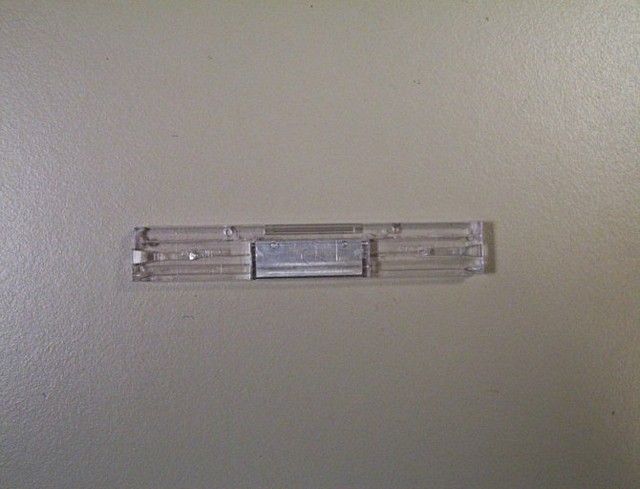

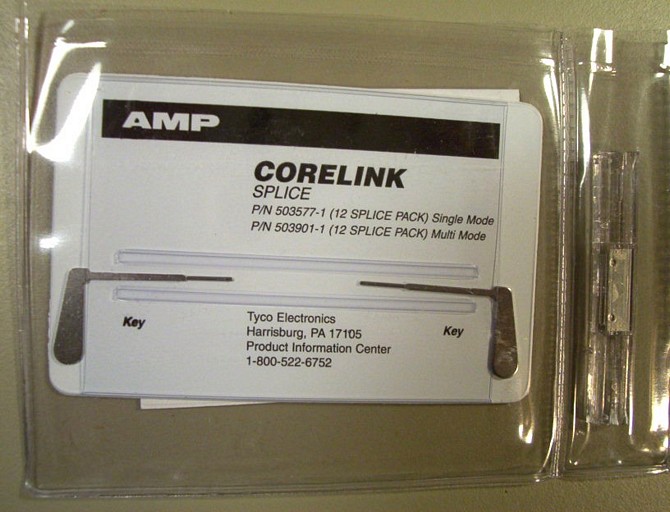

Price is for one mechanical splice. Two assembly splice keys will be provided if you buy a set of 12 splices, also including instruction sheet. The Corlink splice is an easy-to-use, high performance mechanical splice for 125 um cladding singlemode and multimode fibers. Its unique clamping mechanism is activated with a simple key, no other tooling is required. The transparent material allows the crafts person to both see and feel the fiber position. CORELINK is re-mateable - either fiber can be removed and replaced in the splice at any time. Index matching gel is preloaded in the splice alignment channel (This is verified in our lab). Retail price >$14.6 Description from FIS website: The AMP Corelink provides an average splice loss of .15dB on 125µm fiber with an average installation time of 30 seconds. One splice style accepts 250µm to 900µm coating. Two assembly splice keys are provided with set of 12 splices. The 1st pdf datasheet indicates that Corelink splice for single-mode fiber is clear (splice for multimode fiber is blue color). Our splice is clear (see photo below), so it is for single-mode fiber. Furthermore, I was told "for sure that they were bought for SMF". Since multi-mode fiber has same 125um-cladding, 250um-coating, and applicable 900um buffer as single-mode fiber, and much larger fiber core size, so splice for single-mode fiber can also work for multi-mode fiber (technically even better). See specification in 1st and 3rd pdf links below. For more details, search 503577-1 at http://catalog.tycoelectronics.com
Out of stock
  • US$4.00
Add a different product to compare
    CONDITION:
    new in original bag

  • DIM Weight
    0.0100 kg
  • Store Part No.
    OLTP-FIB-PREP-004C
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Manufacturers
    • Manufacturer
      AMP
