APD photodetector for both 1.55um/1.3um. The fiber pigtail is about 15.5cm or 21.5cm. Removed from JDS kit. 'Sell as is', no return.
Next image
Zoom image

APD photodetector for both 1.55um/1.3um. The fiber pigtail is about 15.5cm or 21.5cm. Removed from JDS kit. 'Sell as is', no return.


Not rated yet

This sale only incudes one APD detector. The 900um-buffered fiber pigtail is about 15.5cm or 21.5cm long.

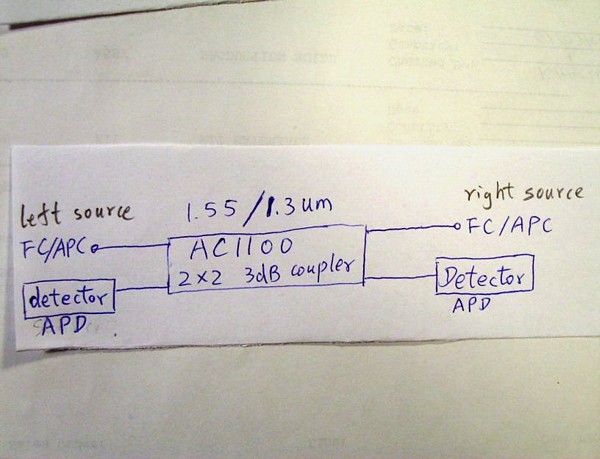

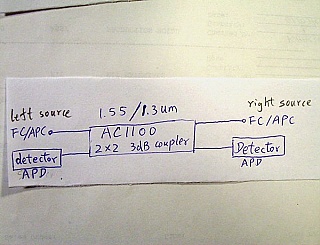

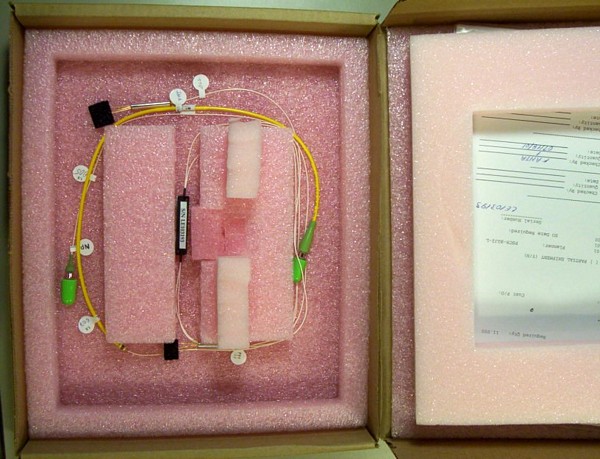

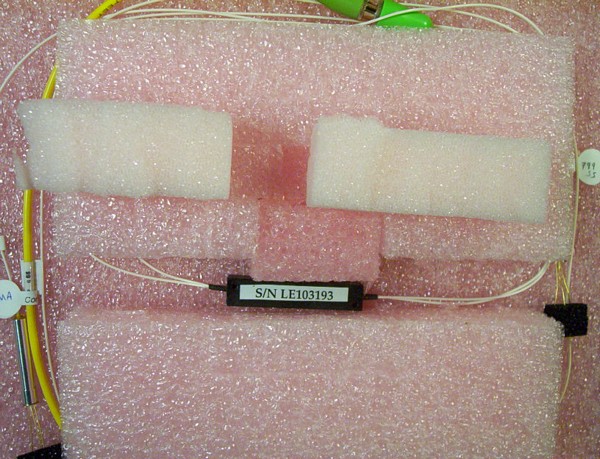

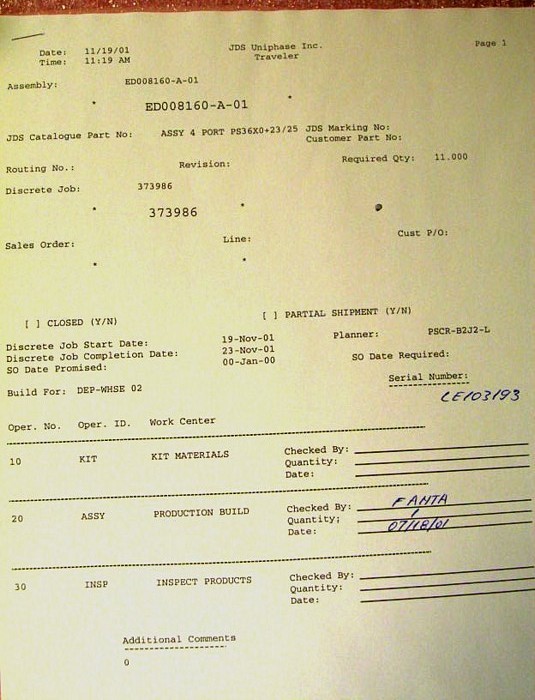

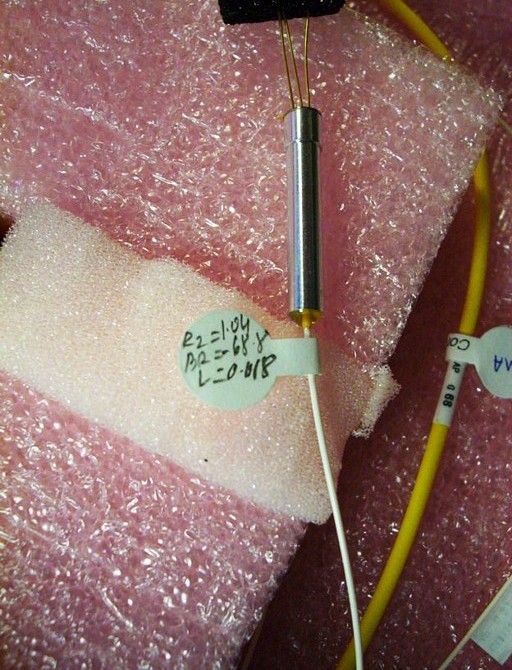

The kit in photos includes two APD detectors. The whole kit is: JDS Catalogue Part No: ASSY 4 PORT PS30X0+23/25, it seems parts of PDL multimeter, see last pdf link below as reference. The diagram below is written by us.  The first two photos are for the test data of APD detector (responsivity, breakdown voltage, dark current).  The kit also includes 50%/50% 2x2 coupler at both 1.31/1.55um, JDS model: AC1100, with 2 FC/APC connectors. See splitter loss at last line of test sheet.  The splitter will be removed and sold as different store product code: OFC-CPM2x2-050C.

We will not ship with original box.

In stock (Only 4 left in stock)
  • US$30.00
Qty:
Add a different product to compare
    CONDITION:

    unused, with small test data label on the detector body. Sell as is, no return.


  • DIM Weight
    0.2500 kg
  • Store Part No.
    ODC-APD-005C
