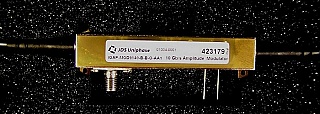

C-band and L-band 10Gb/s optical digital intensity modulator. Zero chirp. JDS P/N: IOAP-MOD9140-B-B-0-AA1.
Next image
Zoom image

C-band and L-band 10Gb/s optical digital intensity modulator. Zero chirp. JDS P/N: IOAP-MOD9140-B-B-0-AA1.


Not rated yet

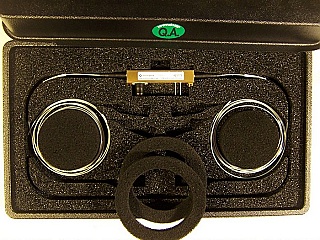

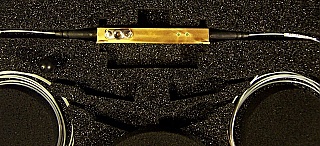

OC192 10 Gb/s Amplitude Modulator. The 10Gb/s modulator has been designed specifically to exceed the requirements of OC192. Supplied in a hermetic package, qualified to Telcordia™ GR-468-CORE, this product assures high reliability and performance at all times.

900um-buffered fiber without fiber connectors.
Input fiber: Fujikura SM-15-P-8/125-UV/UV-400
Output fiber: Corning SMF-28 or Fujikura SM-15-P-8/125-UV/UV-400

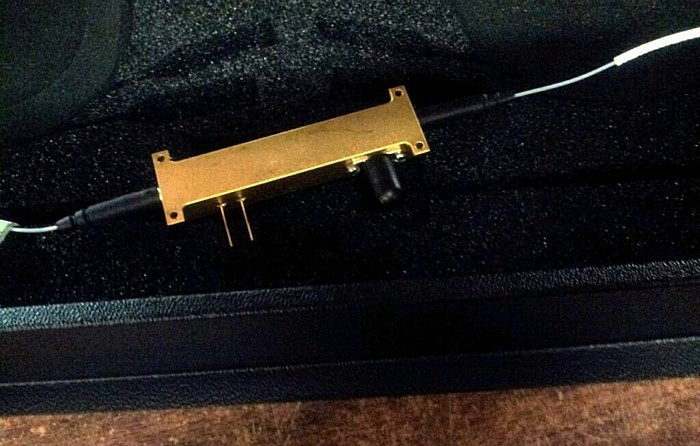

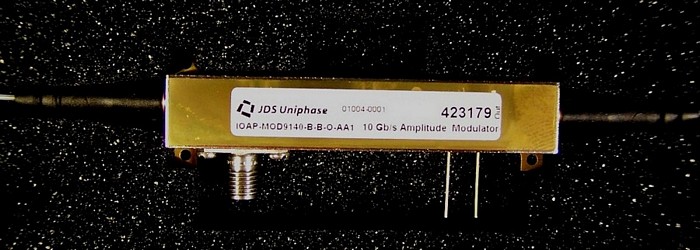

We have figured out: Left fiber near RF port is PMF input, Right fiber near DC port is SMF output.  Left pin of DC port is GND case, right pin is bias voltage (near output fiber).

Packaging
RF Connection: Anritsu K-Connector2 (SMA-compatible)
DC Ground Pins: DC feedthroughs

FEATURES
• Zero-chirp versions for optimum link design
• True hermetic, qualified to Telcordia™ GR-468-CORE
• Separate DC bias electrode for long-term stability & reliability
• Low drive voltage for ease of use with wide range of commercially available drivers
• High on/off extinction ratio
• Polarization maintaining fiber version available on output for RZ modulation schemes

APPLICATIONS
• Ideal for OC192 C-band & L-band applications

Out of stock
  • US$210.00
Add a different product to compare
    CONDITION:

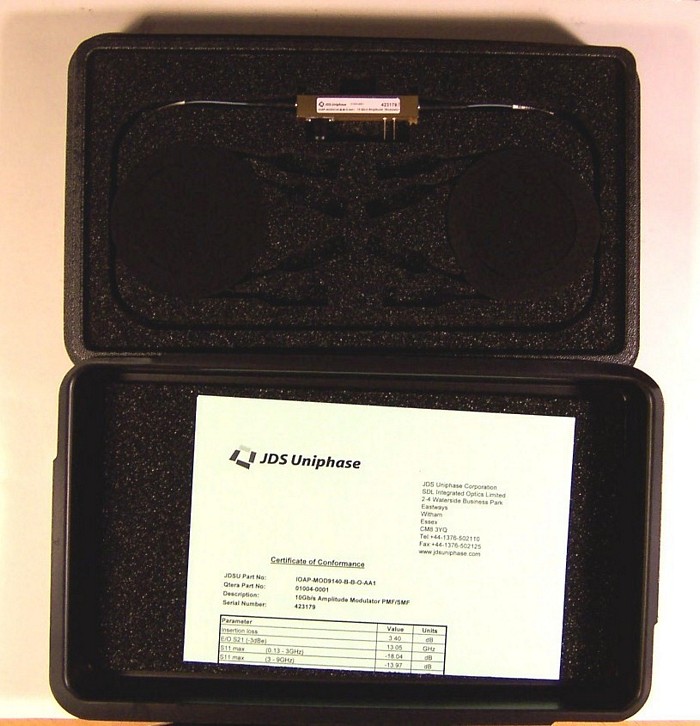

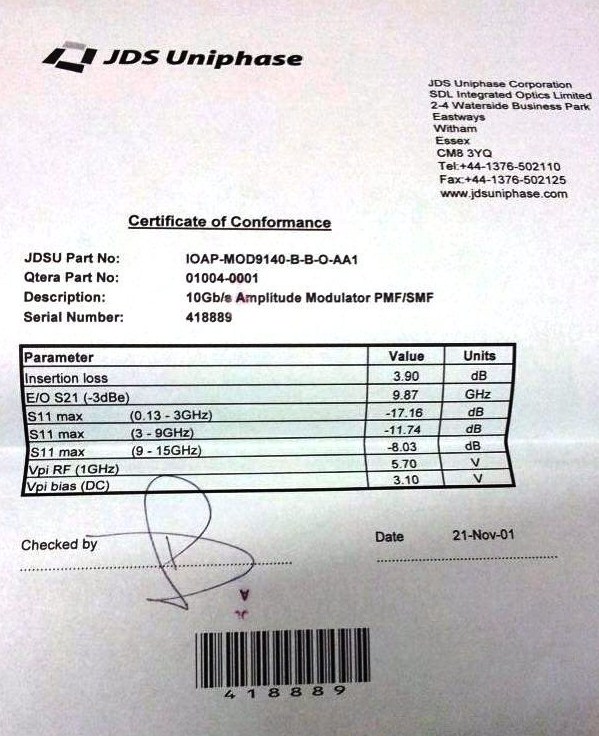

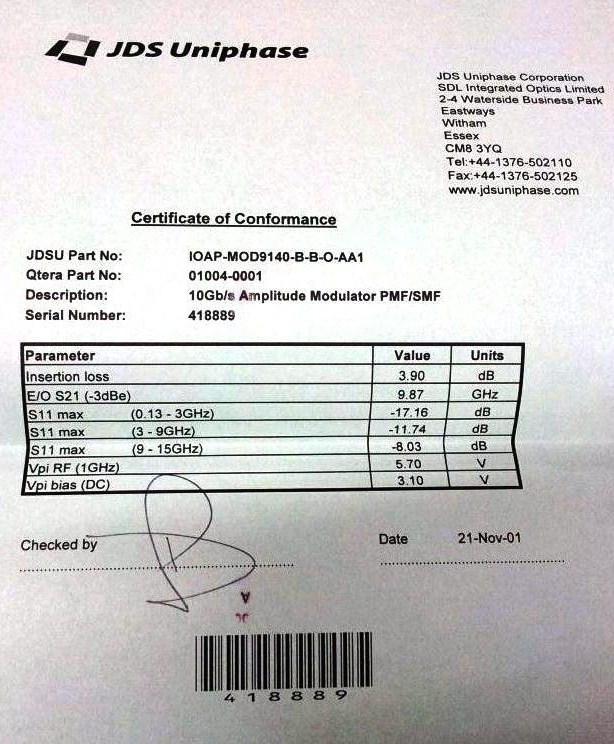

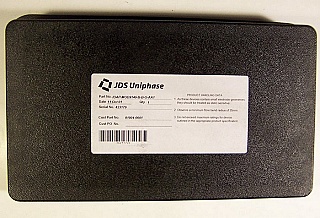

    new in original product packing, with actual manufacture test data. Sample has been tested functionally well at both low frequency and higher frequency 10GHz at our lab (though we did not make full test). Modulator driver MTC5515, PP-10G receiver, HP 54120B scope, and HP 8673A signal generator were used in this test.


  • DIM Weight
    0.8300 kg
  • Store Part No.
    OSC-MOD-10Gb-060C
  • Manufacturers
    • Manufacturer
      jds
