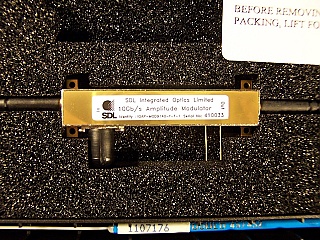

C-band and L-band 10Gb/s optical digital intensity modulator. Zero chirp. With 3 FC/PC fiber connectors, 1% tap. JDS P/N: IOAP-MOD9140-F-F-1.

OC192 10 Gb/s Amplitude Modulator. The 10Gb/s modulator has been designed specifically to exceed the requirements of OC192. Supplied in a hermetic package, qualified to Telcordia™ GR-468-CORE, this product assures high reliability and performance at all times.

900um-buffered fiber With 3 FC/PC fiber connectors, and 1% tap. Input fiber: Fujikura SM-15-P-8/125-UV/UV-400 Output fibers: Corning SMF-28

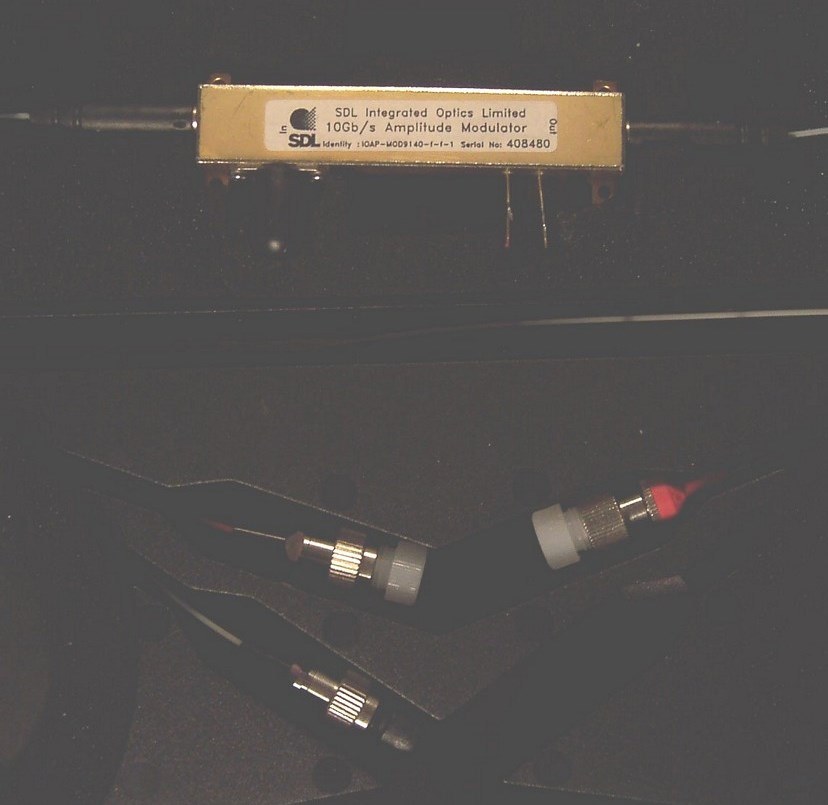

We have checked that the fiber connector with red rubber boot is with panda image under scope and the PM fiber connector key is aligned at slow axis.

Packaging

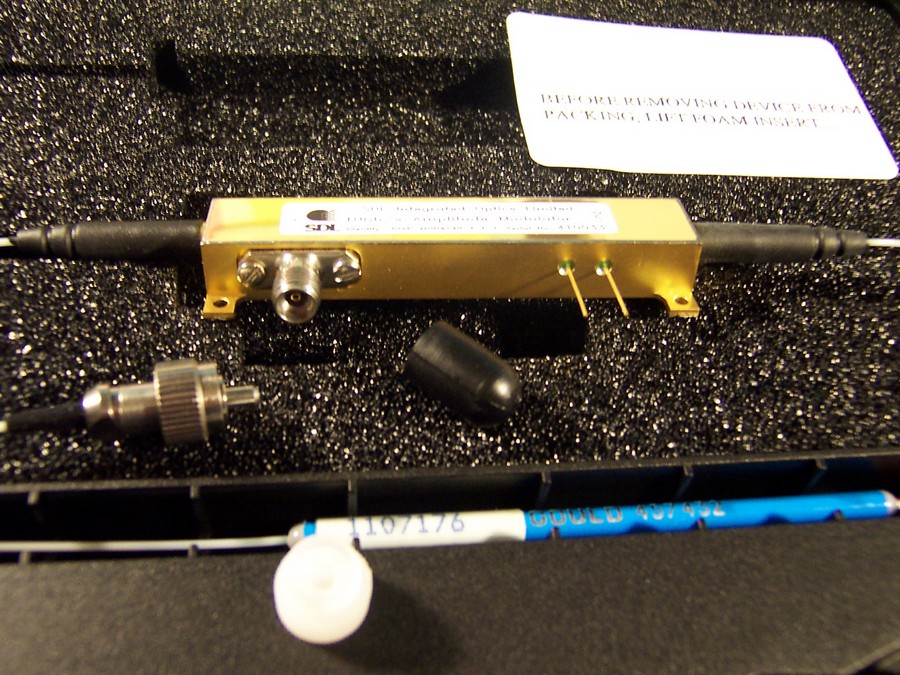

• RF Connection: Anritsu K-Connector2 (SMA-compatible)
• DC Ground Pins: DC feedthroughs

FEATURES
• Zero-chirp versions for optimum link design
• True hermetic, qualified to Telcordia™ GR-468-CORE
• Separate DC bias electrode for long-term stability & reliability
• Low drive voltage for ease of use with wide range of commercially available drivers
• High on/off extinction ratio
• Polarization maintaining fiber version available on output for RZ modulation schemes APPLICATIONS
• Ideal for OC192 C-band & L-band applications

Store Part No.	Choose sample	Qty	Price	Buy
OSC-MOD-10Gb-061C1	New in original product packing	0	US$240.00	Out of stock
OSC-MOD-10Gb-061C2	Sample 3: Unused but with slightly different packing	0	US$225.00	Out of stock

PDF datasheet 21.3 kB
Manufacturer test data of sample 1 21.3 kB
Manufacturer test data of sample 2 21.3 kB
Manufacturer test data of sample 3 21.3 kB
Manufacturer test data of sample 4 21.3 kB
Manufacturer test data of sample 5 21.3 kB

CONDITION:

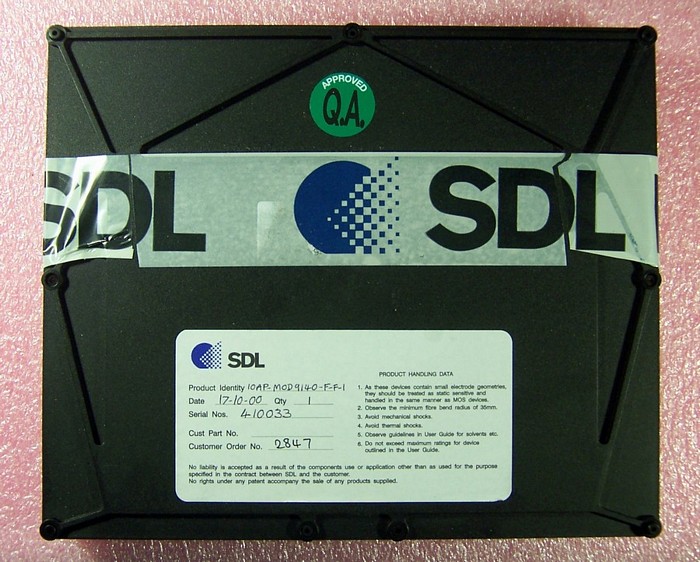

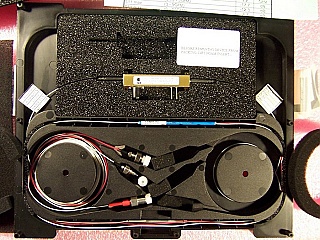

new in original product packing, with actual manufacture test data, see last 5 pdf links above(last pdf link is actually for 3 samples with 3 pages).

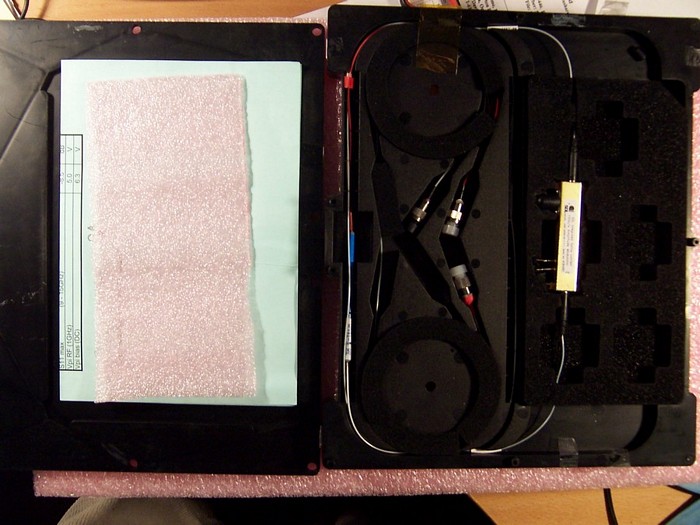

Exceptions: One sample is with soldered pins and with different packing, rest cosmetic condition is excellent, see last 2 photos (manufacture test data is listed at "Manufacturer test data of sample 4" link above). Another sample is unused but with slightly different packing(manufacture test data is listed at "Manufacturer test data of sample 3" link above). Both these two samples are verified that red light can pass all fiber ports.

DIM Weight

0.8300 kg

Store Part No.

OSC-MOD-10Gb-061C1

Choose sample
Sample 4: With soldered pins and with different packing, Sample 3: Unused but with slightly different packing, New in original product packing
Manufacturers
- Manufacturer
  jds
