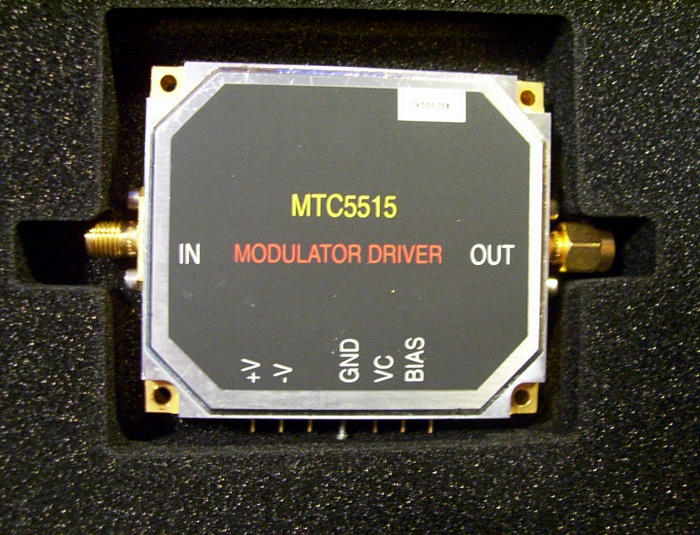

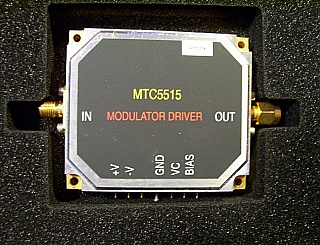

Combo of JDS 10Gb modulator and wideband Multilink modulator driver, JDS P/N: 10020416 and Multilink P/N: MTC5515. Modulator bandwidth: 11.1-13.9GHz, modulator body is obviously oxidized
Next image
Zoom image

Combo of JDS 10Gb modulator and wideband Multilink modulator driver, JDS P/N: 10020416 and Multilink P/N: MTC5515. Modulator bandwidth: 11.1-13.9GHz, modulator body is obviously oxidized


Not rated yet

Combined order of JDS 10Gb modulator module and Multilink modulator driver module. Here you will buy both JDS P/N: 10020416 and Multilink P/N: MTC5515 at much lower retail price.

1. JDS P/N: 10020416 10Gb modulator (OSC-MOD-10Gb-200E4)
Low insertion loss. With two FC/PC fiber connectors. Input fiber connector (with blue boot) is 1550nm panda PMF, PM connector key is aligned to standard slow axis by default, output fiber connector is SMF. The modulator test example in at its pdf datasheet link below applies MTC5510 modulator driver. We have model MTC5515, which is almost same as MTC5510, but offers improved performance. Modulator sample is verified working well with our 10Gb modulator driver (Multilink P/N: MTC5515 ) up to 1.3GHz (1.3GHz is our highest signal source frequency) at our lab. Here you can buy this modulator and also MTC5515 10Gb modulator driver together from our online store, then the modulator is ready to use with power supplies. The 10 Gb/s “Bias Ready” Intensity Modulator is designed for TDM and WDM 10 Gb/s transmission. It features excellent stability in a biased circuit and operates within the 1530 to 1565 nm range. According to general principle, X-cut LiNbO3 modulator has almost zero chirp due to its sysmmetric structure (chirp parameter of Z-cut structure is 0.7). One of our local customer has verified a sample is chirp-free.

Features
• Excellent stability in a biased circuit
• 1530 nm to 1565 nm operation
• Proven JDS Uniphase reliability
• Low insertion loss provides maximum transmission power Applications
• TDM and WDM 10 Gb/s transmission

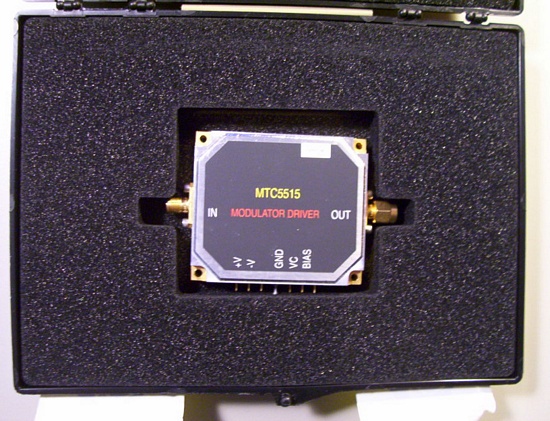

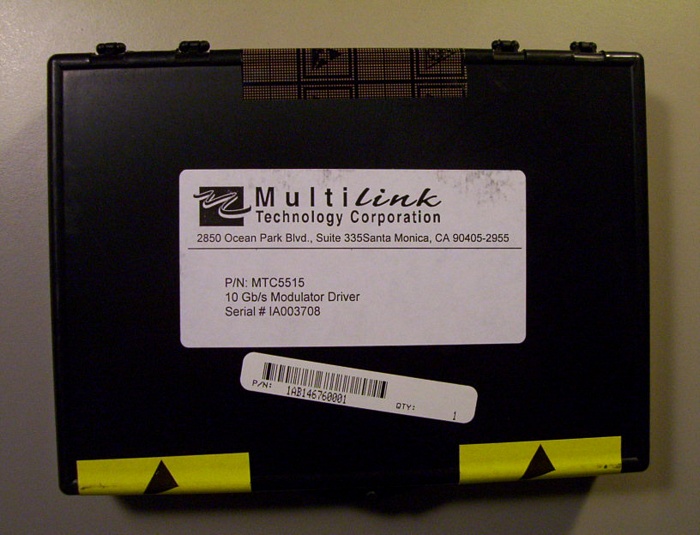

2. Multilink 10Gb Modulator Driver module MTC5515 (OSC-MOD-DRIVER-002D )
We will email customer the full pdf datasheet including application information and application circuit after we receive the online order. It offers built-in bias-tee function. It is said that it works well with JDS modulator 21014017, see evaluation report from these two links: https://www.oequest.com/getDatasheet/id/3026-324bfe5d1a928cd.pdf  , https://www.oequest.com/getproduct/19306/cat/0/page/1

Applications
• Driver for LiNbO3 modulator in high bit-rate SONET/SDH transmission systems
• Medium power linear gain block for broadband applications Features
• 23 dB typical gain
• Output voltage up to 8VPP
• Low gain ripple, 1.5 dBPP typical
• 30 KHz to 11 GHz bandwidth

Description
The MTC5515 is a precision GaAs medium power amplifier. It operates from 30 KHz to 11 GHz and exhibits a flat linear gain response. The MTC5515 has low internal jitter making it useful for digital applications. The self-contained module operates from a +8V and a -5V power supply. It is fully hermetic, consumes 5 W of power and operates over a case temperature range from 0 C to +70 C. With an input voltage of 0.8VPP , the typical output is 7.5 VP-P. Low jitter and large amplitude output makes the MTC5515 an attractive component for driving LiNb03 in applications where a high extinction ratio is required. For convenience, the output voltage can be varied from 5V to 7.5 VPP by adjusting the voltage on the +V pin. By applying a DC voltage to the BIAS pin, an offset voltage can be added to the output signal via a 1 KOHM internal resistance.

In stock (13 items available)
  • US$399.00
Qty:
Add a different product to compare
    CONDITION:

    1. Modulator:Modulator bandwidth: 11.1-13.9GHz, modulator body is obviously oxidized, see details at https://www.lightwavestore.com/1-55um-c-band-10gb-s-bias-ready-optical-digital-intensity-modulator-we-have-modulator-driver-for-this-modulator-sample-verified-chirp-free-jds-p-n-10020416-price-depends-on-bandwidth-and-oxidation-condition.html
    New in original product pack. With actual test sheet. We have tested 10 samples of this JDS 10Gb modulator at our lab, with our new arrived modulator drivers MTC5515 and MTC5515-751. They work quite well up to 1.3GHz, checked by 1.3GHz digital scope. The DC bias and insertion loss might slightly drift from manufacture test data, but they still meet specification (at least very close to specification). Our local university customer with more professional RF instruments just tested one sample of this 10Gb modulator. He has verified a sample can work well at >10GHz, bandwidth is about 13GHz, insertion loss is 4.8dB, and chirp-free. DC bias voltage, insertion loss match manufacture test data. When it is operated at the carrier suppression mode, the suppress ratio is about 32 dB (large enough). Overall test result of this 10G modulator sample is nicer than other type of regular 10G modulators.

    2. Modulator driver: (OSC-MOD-DRIVER-002D )

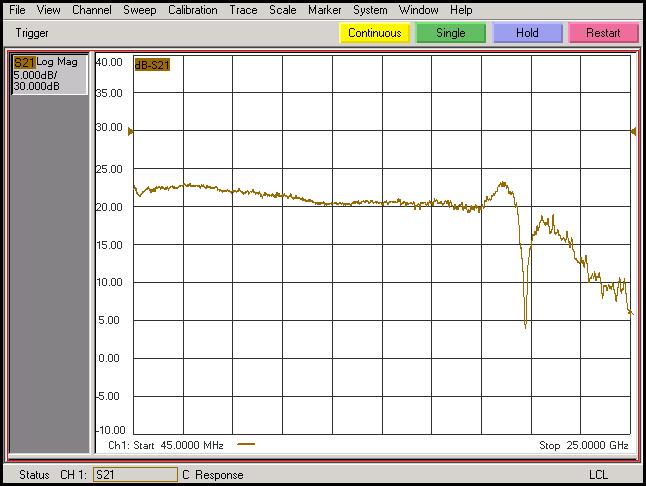

    New in original product pack. Two samples are tested well by our local customer, tested bandwidth on two samples is about 18GHz, see one sample test result at last photo below.


  • DIM Weight
    1.7000 kg
  • Store Part No.
    OSC-MOD-10Gb-202C
  • Manufacturers
    • Manufacturer
      jds
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
