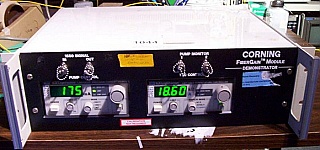

Corning fiber amplifier demonstrator, >14dBm flat over C-band at 4dBm input. With ILX 200mA laser driver ($650) and 2A Temperature controller ($630) instruments, and EDFA module ($450).

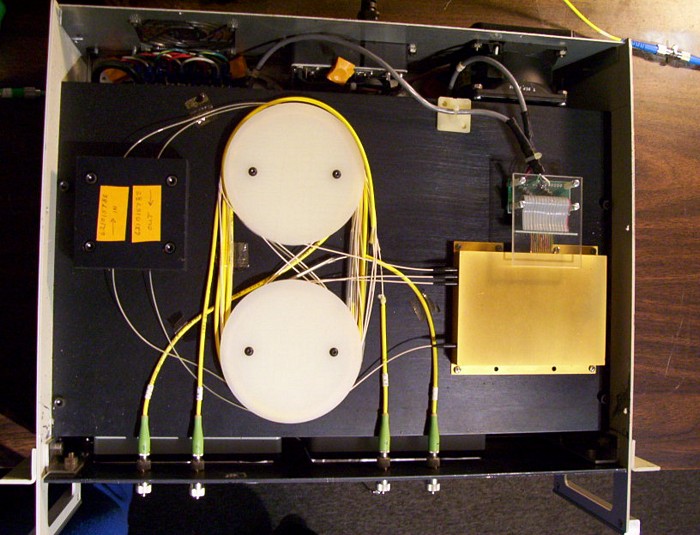

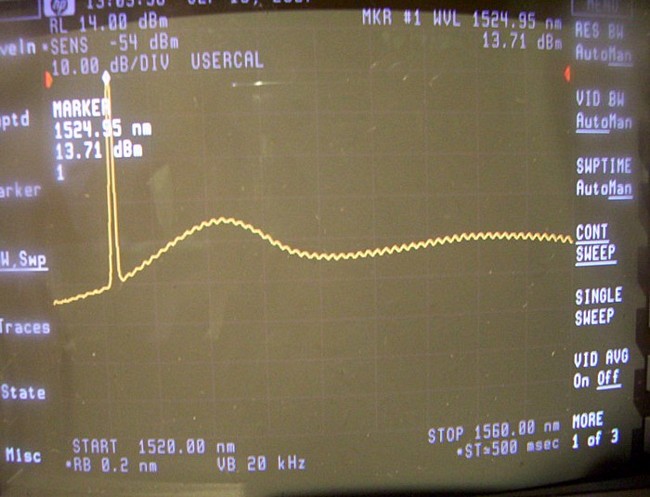

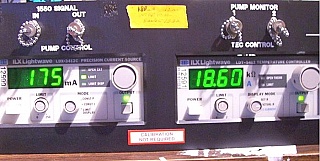

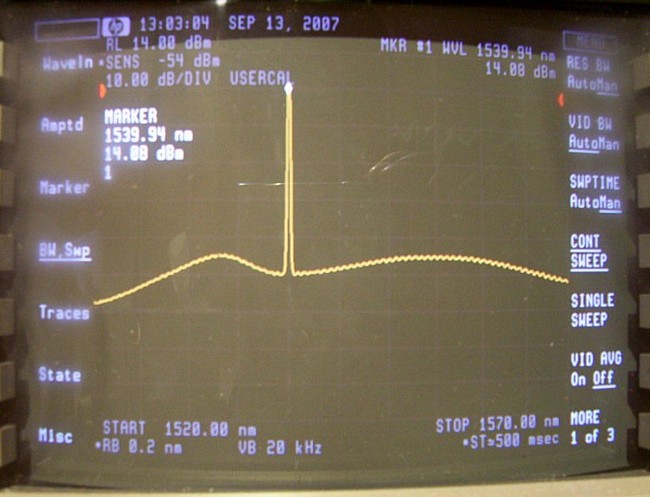

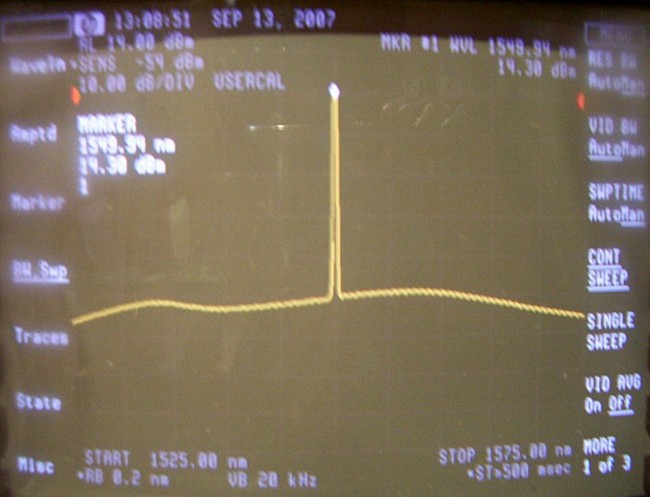

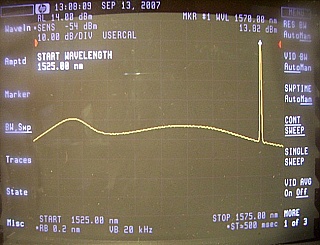

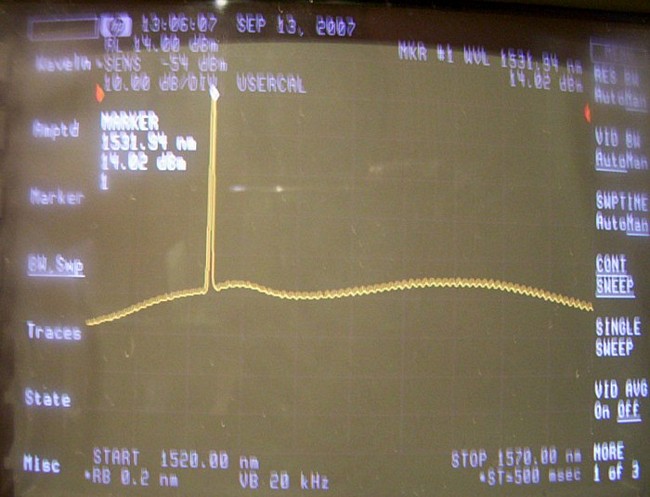

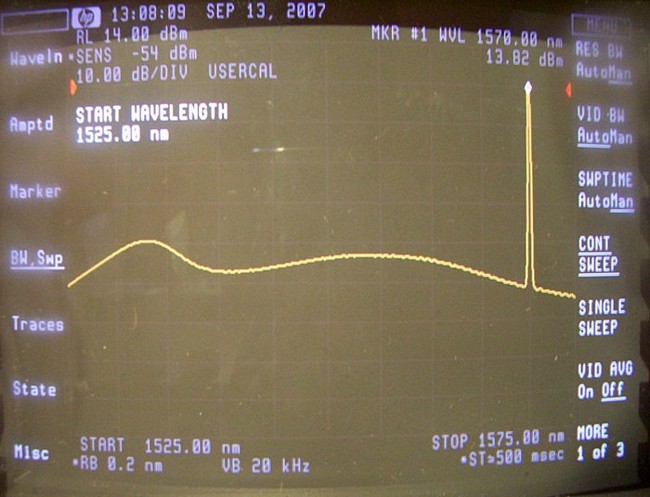

Corning fiber amplifier demonstrator based on Corning fiber gain module (EDFA module). It includes two ILX instruments: 200mA laser precision current source LDX-3412C and 2A, 4W, 0.01C temperature controller LDT-5412, so you can easily replace with different EDFA module. FC/APC fiber interface. >14dBm saturated output over C-band at 4dBm input. If increasing input power to 8dBm, the out put power will only increase slightly and still less than 15dBm. See test result by OSA and tunable laser with 4dBm input, at 1525, 1532, 1540, 1550, 1560, 1570nm respectively. The laser precision current source is at constant current 175mA (constant power mode is available, but we did not try it). Output result looks quite flat over C-band.

See datasheet and user manual for LDT-5412 temperature controller in the 1st two pdf links below. See user manual for LDX-3412 current source in last pdf link below.

We can sell parts separately. Please choose item below.

Store Part No.	Select item	Qty	Price	Buy
OTI-EDFA-007CA	ILX LDT-5412 2A temperature controller	1	US$630.00	+ -
OTI-EDFA-007C0	ILX- LDX-3412C 200mA laser current source	1	US$650.00	+ -
OTI-EDFA-007C1	14dBm Corning fiber gain module (EDFA module)	1	US$450.00	+ -
OTI-EDFA-007C2	Whole system including Laser driver, temperature controller, and EDFA module	1	US$1660.00	+ -

Select item
Whole system including Laser driver, temperature controller, and EDFA module, 14dBm Corning fiber gain module (EDFA module), ILX- LDX-3412C 200mA laser current source, ILX LDT-5412 2A temperature controller
