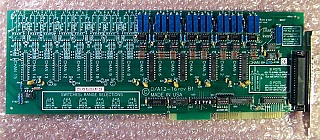

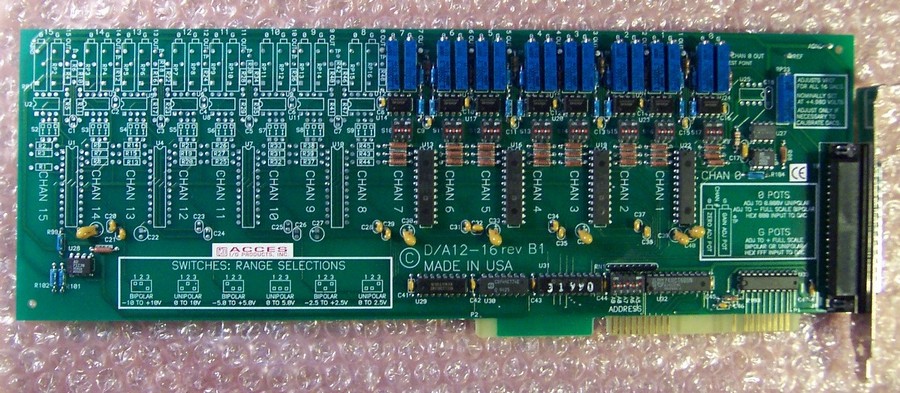

12-bit 8-channel-output DA module. Manufacturer retail price US$470. Models D/A12-08 and D/A12-16 are full-size cards that can be installed in any long I/O slot of PC-AT class computers. The cards provide eight and sixteen 12-bit- resolution analog outputs respectively at a 37-pin male Sub-D connector. Analog output channels can be individually switch configured for any of the following voltage ranges: • 0 to +2.5V • 0 to +5V • 0 to +10V • ±2.5V • ±5V • ±10V Type AD7237 double-buffered dual DAC chips are used. Data are transferred from the computer into outer registers a byte at a time and transferred into inner registers a word at a time. The analog outputs can be updated either independently or simultaneously. In order to prevent inadvertent outputs at system power-on, the reference voltage to all DAC's is set to zero volts. Then, after all DAC's have been loaded with the desired initial values, a software command can be used to switch this reference voltage to its nominal value. Similarly, a software command can be used at any time to set the reference voltage to zero causing all DAC outputs to be zero volts.
