High-power EELED broadband source, around 1545nm. EXFO P/N: M2103BS-110-58 (M2100)

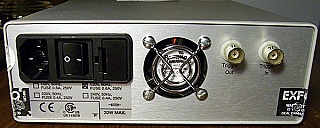

Broadband EELED light source(much wider and more stable than EDF ASE source). Variable power output. With modulation option. With FC/APC adapter interface. EXFO P/N: M2103BS-110-58 (M2100) light source 1550nm LED. Power rating: 120 VAC +/-10% Fuse: 0.6A

General description
Broad Spectral Range and Impressive Power

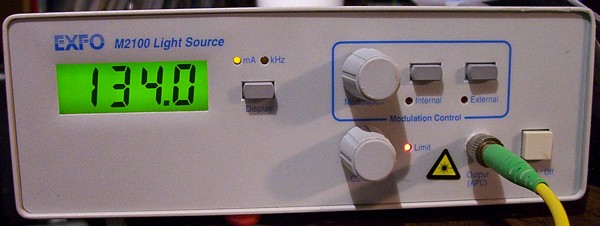

The M2100 Broadband Light Source is a high-power EELED-based light source with variable power output. It provides broad spectral range and more power density in a singlemode fiber than a white light source. Use this stable fiber-optic light source for a variety of applications, including WDM component manufacturing and testing, fiber-optic sensing and spectroscopy.

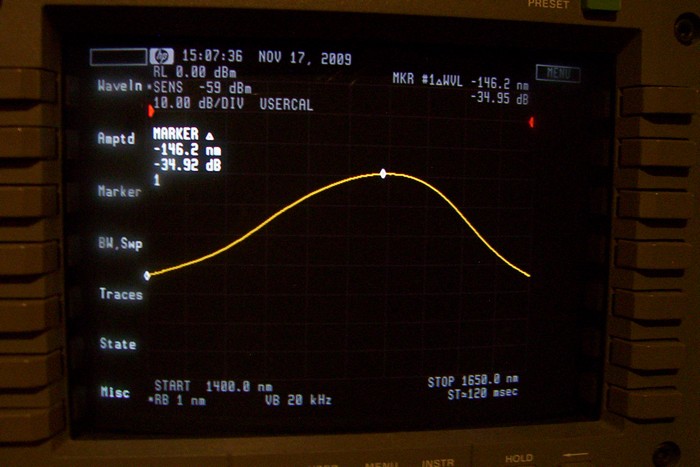

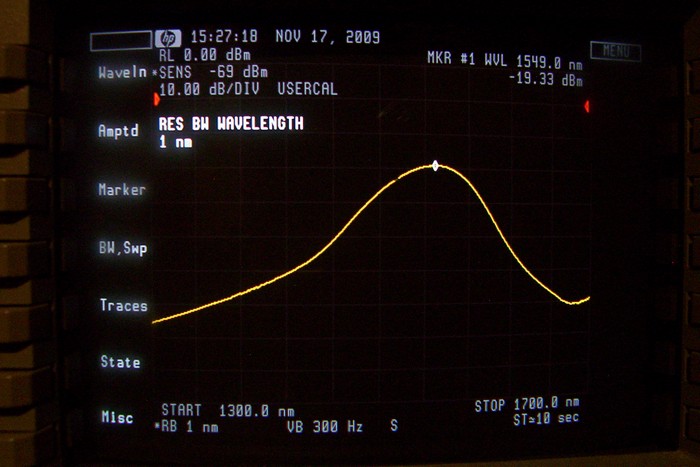

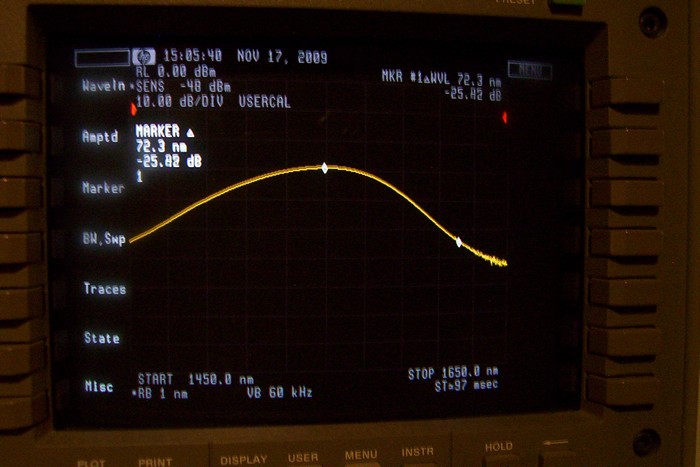

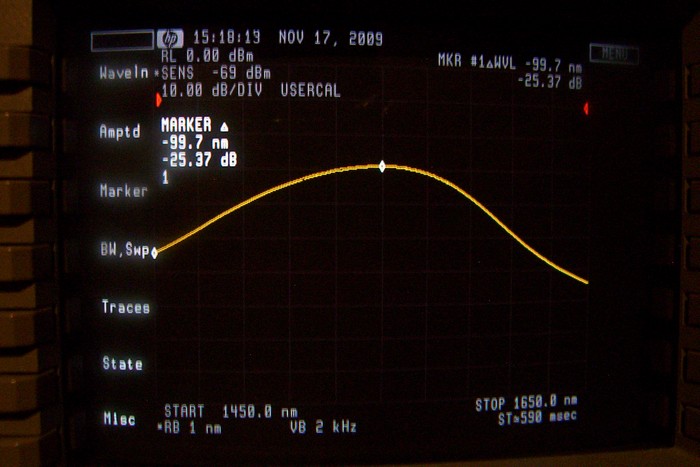

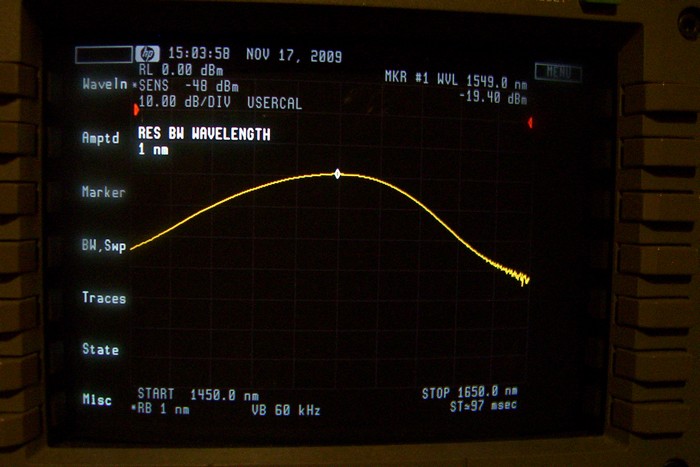

Test result in our lab(using a fiber jumper. We may get higher power if re-clean the output connector): At max 134mA from front panel, total output -1.45dBm tested by HP 81525A head(calibrated), peak wavelength is 1546nm tested by OSA at RBW=10nm. Usable spectral is between 1400-1650nm (within 35dB bandwidth), see tested spectrum at photos below (Our HP OSA instrument is not full calibrated, especially the absolute power value is not very accurate).

PDF datasheet 18.6 kB

Manufacturers
- Manufacturer
  EXFO
