HP 81531A power sensor module (Works with HP 8153A Lightwave multimeter mainframe) . +3 to -90 dBm. Not include Agilent connector
Next image
Zoom image

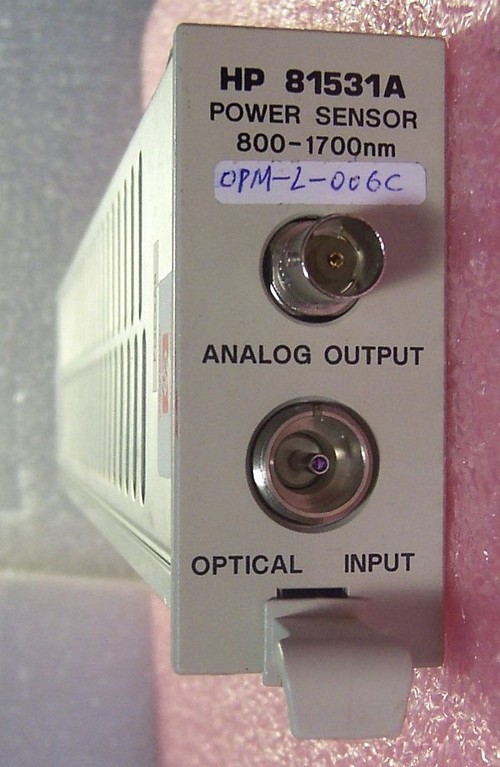

HP 81531A power sensor module (Works with HP 8153A Lightwave multimeter mainframe) . +3 to -90 dBm. Not include Agilent connector


Not rated yet
Power range: +3 to -90 dBm. Wavelength range: 800 - 1700nm. You can buy HP 8153A Lightwave multimeter mainframe in our online store. You need buy Agilent fiber connector 81000FI for FC/PC interface or 81000VI for ST interface or 81000KI for SC/PC interface, or 81000NI for FC/APC interface from our online store seperately.
In stock (Only 2 left in stock)
  • US$600.00
Qty:
Add a different product to compare
    CONDITION:

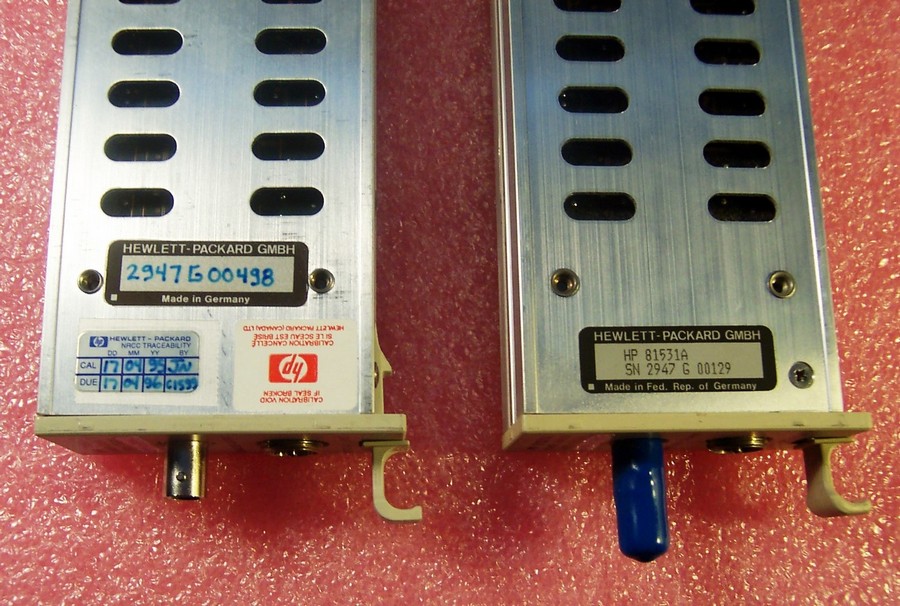

    Good cosmetic condition. 4 samples were tested good at our lab and theire tested optical power are very close to each other, at -2dBm 1550nm FC/PC input, the difference between any one of four 81531A modules and calibrated 81515A optical head is less than 0.2dB, it is within the accuracy specification. GPIB is working .

  • DIM Weight
    2.0000 kg
  • Store Part No.
    OTI-OPM-L-006C
  • Manufacturers
    • Manufacturer
      Agilent
