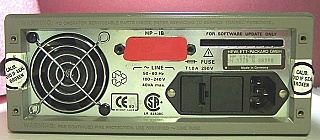

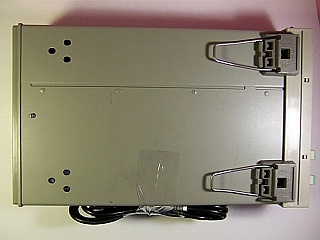

HP 8156A Optical Attenuator, 1200 to 1650nm .With 2 SC/APC connectors


Not rated yet

With 2 Agilent 81000KI SC/APC fiber connectors. Max setting loss 60dB. 1.3/1.55um SMF. Connector type: angled contact, so it is option #201, as shown at 1st pdf link below. We haverified Agilent FC/APC 81000NI connectors can also work with this equipment. We can deduct $120 if you do not need two 81000KI SC/APC connectors. See specification and user manual at pdf links below.

Out of stock
  • US$1350.00
Add a different product to compare
    CONDITION:

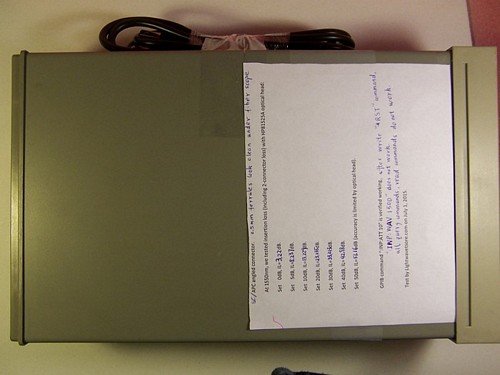

    Very good cosmetic condition. Variable attenuator is verified working at our lab.  See our loss test result at last photo. Min insertion loss at 1550nm is 3.22dB including 2-connector loss.

    After write GPIB command “*RST”,  GPIB commands “ATT 10 dB” and “WVL 1550NM” are verified working. GPIB read commands “ATT? ” and “WVL?” and some query commands are not working (GPIB "Query" commands return double repeated digits).  This equipment is still good for your application if you only use GPIB "write" commands.


  • DIM Weight
    7.2000 kg
  • Store Part No.
    OTI-VOA-SM-002K
