ADC 1x2 coupler, you need choose coupling ratio from 10% to 45% options. For both 1.3/1.55um, with SC/APC interfaces, ADC model: VSM-N7A7A2x0A0003
Next image
Zoom image

ADC 1x2 coupler, you need choose coupling ratio from 10% to 45% options. For both 1.3/1.55um, with SC/APC interfaces, ADC model: VSM-N7A7A2x0A0003


Not rated yet

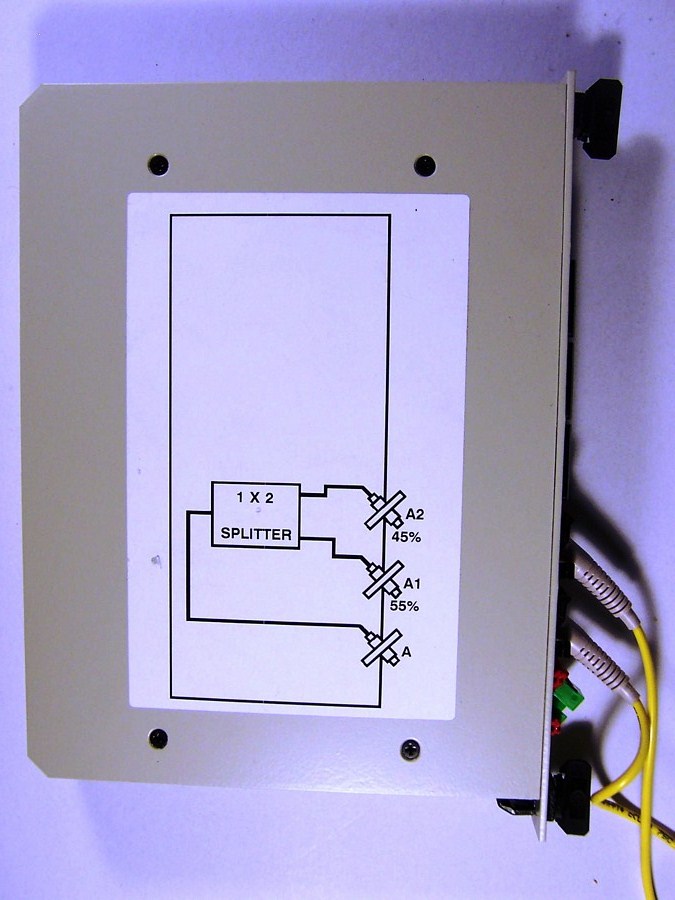

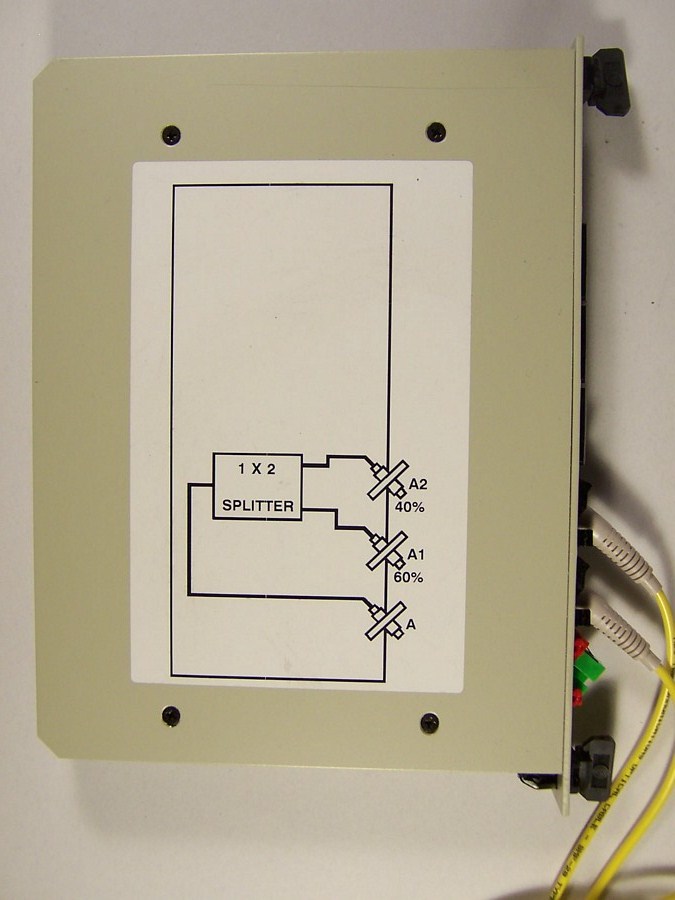

1×2 tap couplers in small enclosure. There is one SC/APC female adapter interface at common port (very easy to pull out adapter and clean internal connector), and two SC/APC male connector interfaces (at the end of 3mm-cable fiber pigtails, there are no internal connectors) at two splitting ports. See 1st and last pdf link below for specification and user manual. The 2nd pdf link is for new model only (page 7, 38, and 39).

Some samples come with manufacture test data, see 2nd and 3rd photos. Only one sample comes with instruction manual in hard copy, as shown in last two photos.

Model: VSM-N7A7A290A0003, VSM-N7A7A270A0003, VSM-N7A7A260A0003, VSM-N7A7A250A0003, VSM-N7A7A240A0003, VSM-N7A7A230A0003, VSM-N7A7A220A0003, VSM-N7A7A210A0003.

Store Part No. Choose coupling ratio and model number Qty Price Buy
OFC-CPM1x2-003CA 5%/95%, Model: VSM-N7A7A290A0003. 0 US$34.00 Out of stock
OFC-CPM1x2-003C0 10%/90%, Model: VSM-N7A7A280A0003. 0 US$34.00 Out of stock
OFC-CPM1x2-003C1 15%/85%, Model: VSM-N7A7A270A0003. 2 US$34.00 + -
OFC-CPM1x2-003C2 20%/80%, Model: VSM-N7A7A260A0003. 4 US$34.00 + -
OFC-CPM1x2-003C3 25%/75%, Model: VSM-N7A7A250A0003. 2 US$34.00 + -
OFC-CPM1x2-003C4 30%/70%, Model: VSM-N7A7A240A0003. 1 US$34.00 + -
OFC-CPM1x2-003C5 35%/65%, Model: VSM-N7A7A230A0003. 1 US$34.00 + -
OFC-CPM1x2-003C6 40%/60%, Model: VSM-N7A7A220A0003. 9 US$29.00 + -
OFC-CPM1x2-003C7 45%/55%, Model: VSM-N7A7A210A0003. 14 US$26.00 + -
Add a different product to compare
    CONDITION:

    A little used but still in good cosmetic condition. We have verified all the samples that red light can pass from any one of SC/APC connectors (splitting port) to SC/APC adapter (common port). Since optical splitter is simple passive component, so we very believe that they are still in good working condition. Connector endface of samples look good after cleaning under fiber connector scope (we have no time to clean all the connectros). Some samples come with manufacture test data, see 2nd and 3rd photos.


  • DIM Weight
    0.8000 kg
  • Store Part No.
    OFC-CPM1x2-003C7
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Choose coupling ratio and model number
    45%/55%, Model: VSM-N7A7A210A0003., 40%/60%, Model: VSM-N7A7A220A0003., 35%/65%, Model: VSM-N7A7A230A0003., 30%/70%, Model: VSM-N7A7A240A0003., 25%/75%, Model: VSM-N7A7A250A0003., 20%/80%, Model: VSM-N7A7A260A0003., 15%/85%, Model: VSM-N7A7A270A0003., 10%/90%, Model: VSM-N7A7A280A0003., 5%/95%, Model: VSM-N7A7A290A0003.
  • Manufacturers
    • Manufacturer
      ADC
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)
