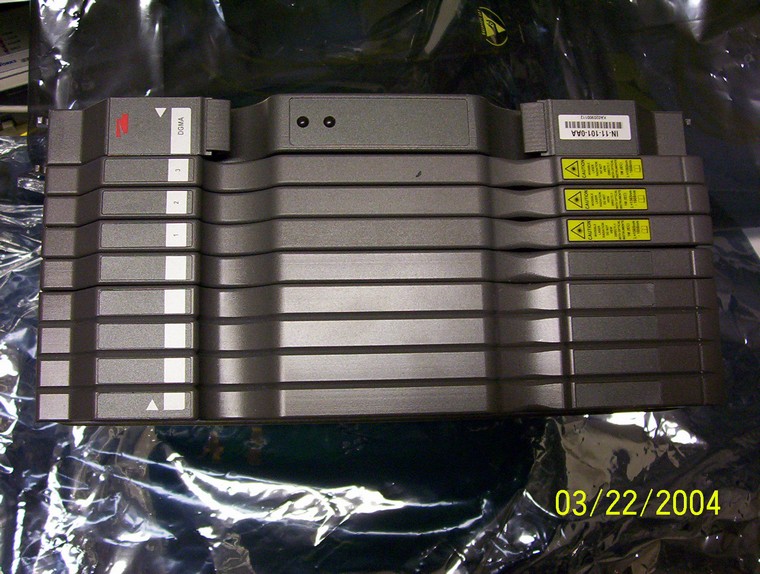

DGMA card at L-band, with dynamic gain equalizer module

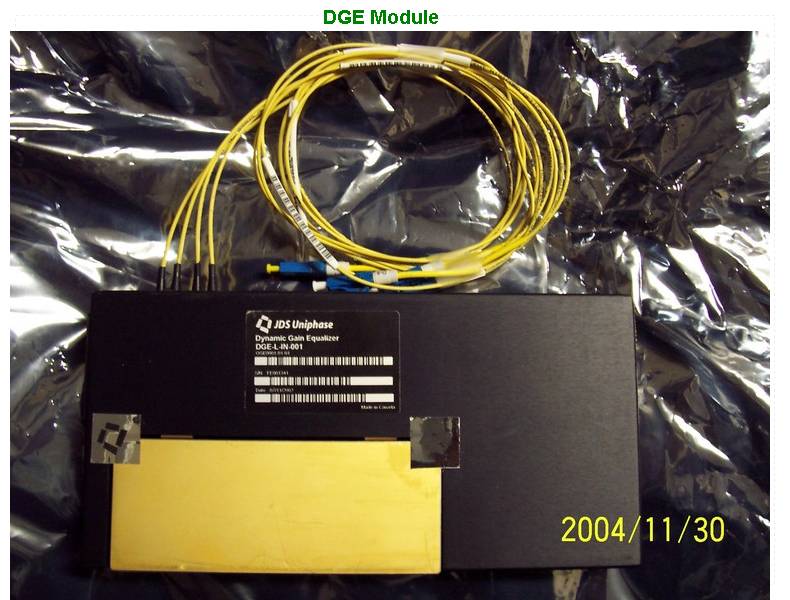

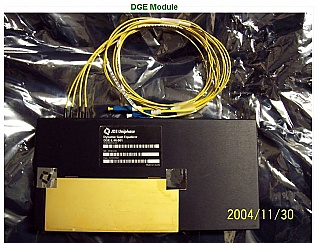

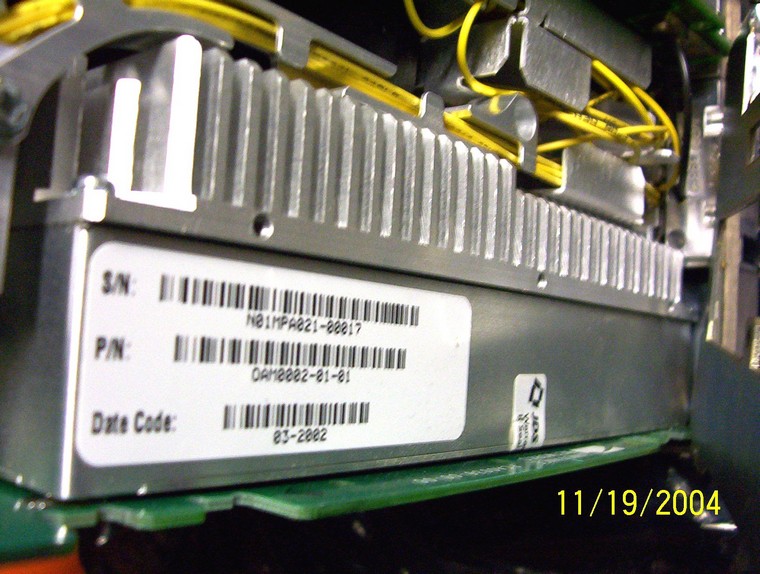

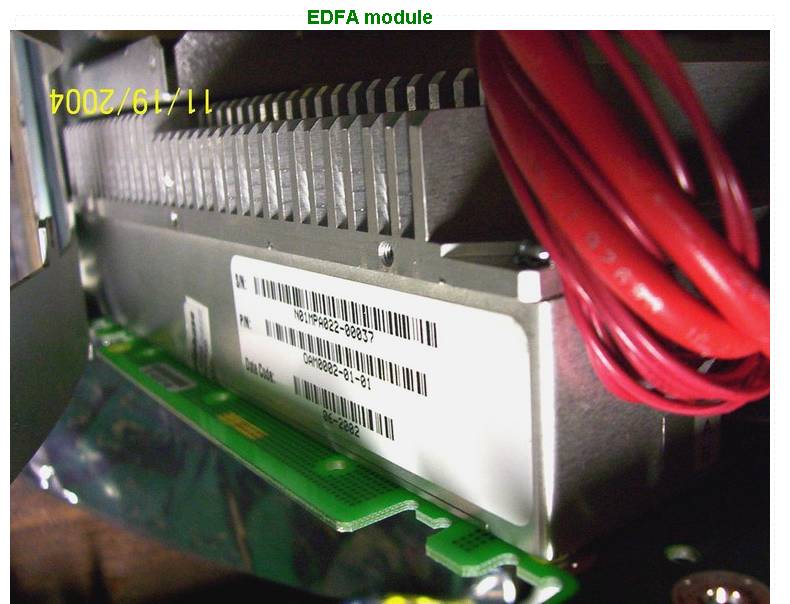

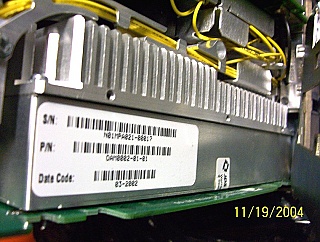

Card Name: Dynamical Gain control, Mid-satge Amplifier (DGMA)OC-192 10Gb/s DGE amplifier card for ultra long-haul DWDM transmission systems at L-band around 1585nm window. It is a mid-stage fiber amplifier with built-in DGE, including one DGE module, one mid-stage EDFA modules(2 EDFA modules) inside DGE card. Card fiber interface: LC/PC connectors. JDS Dynamic Gain Equalizer module model: DGE-L-IN-001, PN:OGE0001-01-01Actual DGE module would be customized and may be a little different from the standard one.EDFA mid-stage amplifier is made by two high power EDFA modules made by JDSU. DGE module is optically inserted between these two EDFA modules. (Alternatively, You can insert Dispersion compensation module or OADM module instead, if you like to reuse Mid-stage EDFA amplifier)New. Acquired from closed start-up company.

PDF datasheet 15.8 kB
PDF user guide 15.8 kB
ZIP file 15.8 kB

Manufacturers
- Manufacturer
  Innovance
