ADC 1x3 coupler, you need choose coupling ratios from 20% to 33% options. For both 1.3/1.55um, with SC/APC interfaces, ADC model: VSM-N7A7A3x0A0003

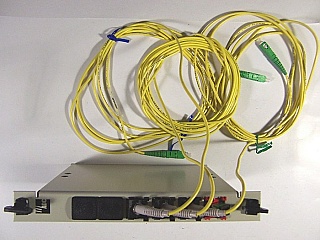

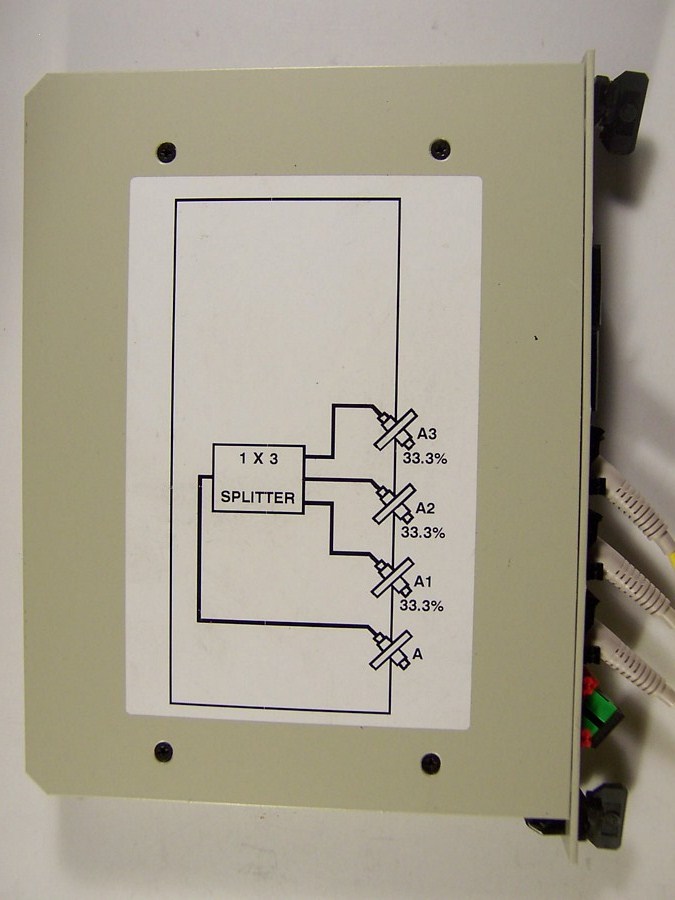

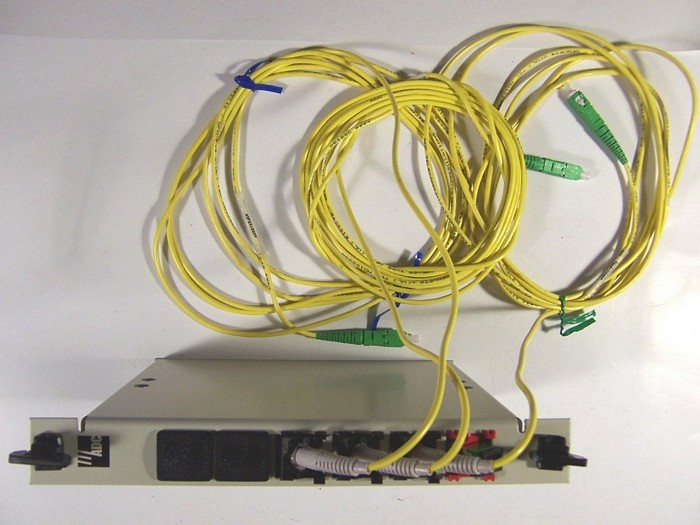

1×3 couplers in small enclosure. There is one SC/APC female adapter interface at common port (very easy to pull out adapter and clean internal connector), and three SC/APC male connector interfaces (at the end of 3mm-cable fiber pigtails, there are no internal connectors) at three splitting ports. See 1st and last pdf link below for specification and user manual. The 2nd pdf link is for new model only (page 7, 38, and 39).

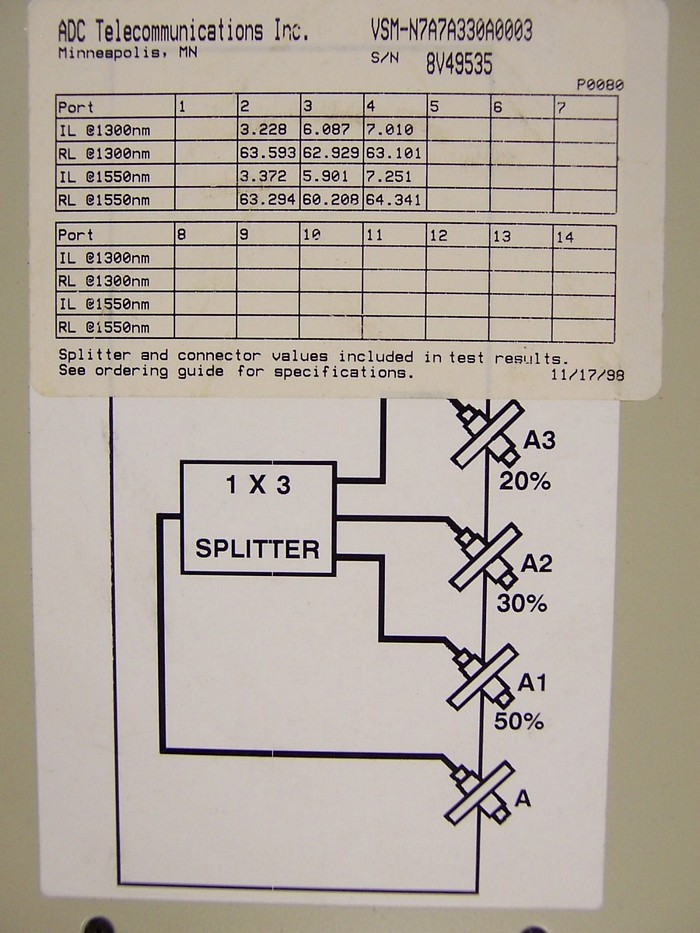

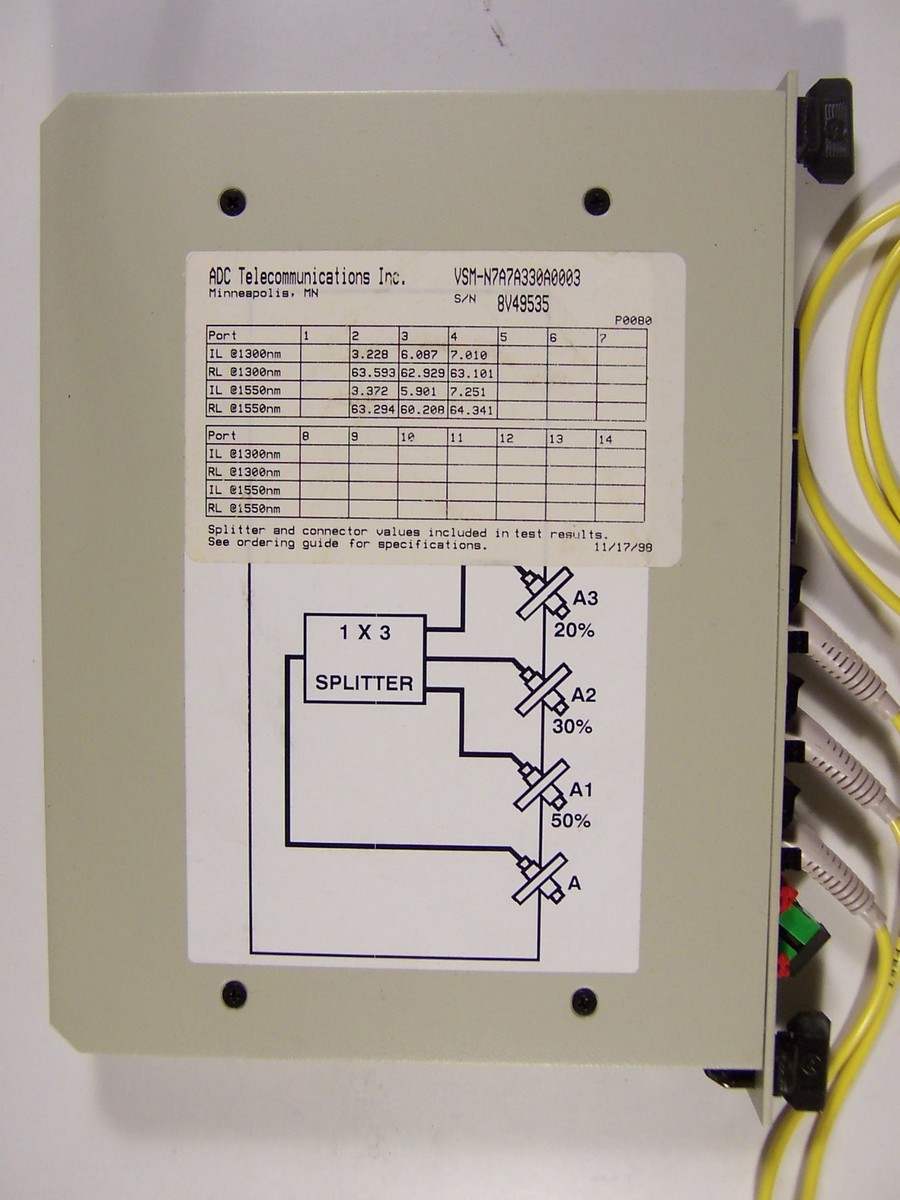

Many samples come with manufacture test data, see 3rd and 4th photos.

Model: VSM-N7A7A310A0003. , VSM-N7A7A320A0003, VSM-N7A7A330A0003. , VSM-N7A7A350A0003., VSM-N7A7A338A03. VSM-N7A7A340A0003., VSM-N7A7A349A03. , VSM-N7A7A360A0003. , VSM-N7A7A390A0003.

Store Part No.	Choose coupling raio and model number	Qty	Price	Buy
OFC-CP1xN-002DA	20%/20%/60%, Model: VSM-N7A7A310A0003.	2	US$52.00	+ -
OFC-CP1xN-002D0	20%/25%/55%, Model: VSM-N7A7A320A0003.	2	US$52.00	+ -
OFC-CP1xN-002D1	20%/30%/50%, Model: VSM-N7A7A330A0003.	6	US$52.00	+ -
OFC-CP1xN-002D2	20%/40%/40%, Model: VSM-N7A7A350A0003.	2	US$52.00	+ -
OFC-CP1xN-002D3	22%/33%/45%, Model: VSM-N7A7A338A03.	1	US$52.00	+ -
OFC-CP1xN-002D4	25%/25%/50%, Model: VSM-N7A7A340A0003.	2	US$52.00	+ -
OFC-CP1xN-002D5	25%/34%/41%, Model: VSM-N7A7A349A03.	1	US$52.00	+ -
OFC-CP1xN-002D6	25%/35%/40%, Model: VSM-N7A7A360A0003.	2	US$52.00	+ -
OFC-CP1xN-002D10	33%/33%/33%, Model: VSM-N7A7A390A0003.	0	US$52.00	Out of stock

CONDITION:

A little used but still in good cosmetic condition. We tried 15 samples with red light, red light can pass from any one of SC/APC connectors (splitting port) to SC/APC adapter (common port), so we are very confident that all other untested samples are also without problem. Since optical splitter is simple passive component, so we very believe that they are still in good working condition. Connector endface of samples look good after cleaning under fiber connector scope (we have no time to clean all the connectros). Many samples come with manufacture test data, see 3rd and 4th photos.

DIM Weight

0.8000 kg

Store Part No.

OFC-CP1xN-002DA

Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal	Discount
From $500	2 %
From $750	3 %
From $1000	4 %
From $1250	5 %
From $1500	6 %
From $1750	7 %
From $2000	8 %
From $2500	9 %
From $3000	10 %

Choose coupling raio and model number
33%/33%/33%, Model: VSM-N7A7A390A0003., 30%/35%/35%, Model: VSM-N7A7A380A0003., 30%/30%/40%, Model: VSM-N7A7A370A0003., 25%/37.5%/37.5%, Model: VSM-N7A7A377A03., 25%/35%/40%, Model: VSM-N7A7A360A0003., 25%/34%/41%, Model: VSM-N7A7A349A03., 25%/25%/50%, Model: VSM-N7A7A340A0003., 22%/33%/45%, Model: VSM-N7A7A338A03., 20%/40%/40%, Model: VSM-N7A7A350A0003., 20%/30%/50%, Model: VSM-N7A7A330A0003., 20%/25%/55%, Model: VSM-N7A7A320A0003., 20%/20%/60%, Model: VSM-N7A7A310A0003.
