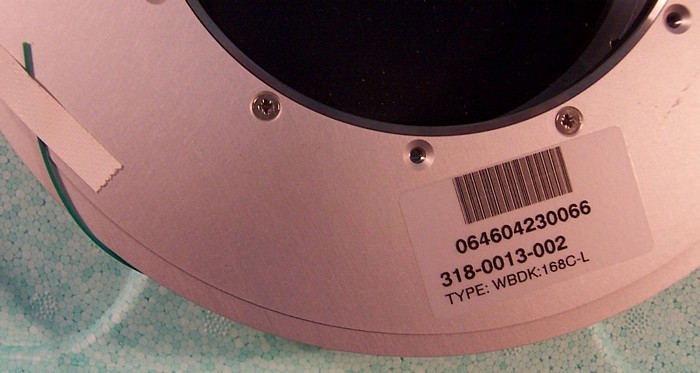

Lucent(OFS) DCM for both C and L-band. Designed as Raman amplifier, but can also use as regular DCM. About -168 ps/nm, 100% compensation. OFS type: WBDK:168C-L. Without test data.
Next image
Zoom image

Lucent(OFS) DCM for both C and L-band. Designed as Raman amplifier, but can also use as regular DCM. About -168 ps/nm, 100% compensation. OFS type: WBDK:168C-L. Without test data.


Not rated yet

We believe the dispersion compensation ratio is 100%, according to the datasheet in the 1st link below. Dispersion: -168 ps/nm, we guess this value is around 1620nm or 1570nm, based on other similar mode EWBDKl test data  at last 4 pdf links below.

DCF has much higher Raman gain coefficient than regular SMF. This DCM is designed to use as Raman amplifier, showing from manufacture test data of similar-model DCM. It can be also used as regular DCM.

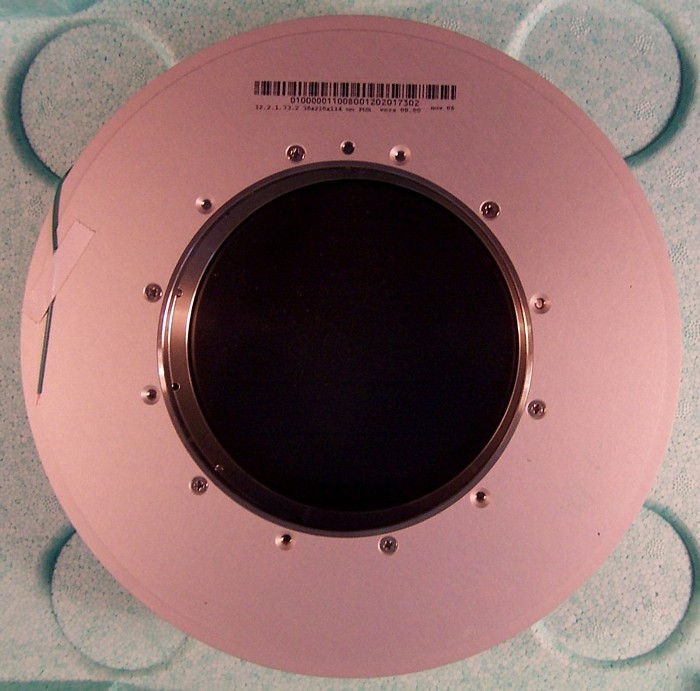

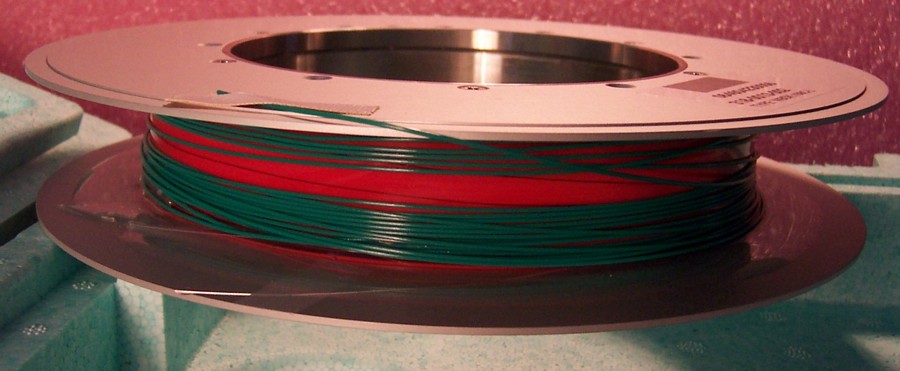

Without fiber connectors.  There is 900um buffer fiber pigtail in green jacket on each end of fiber spool, and there is sleeve-protected fusion splice between 900um buffer fiber pigtail and internal dispersion-compensating fiber (250um-coating bare fiber in red color) on each end of fiber spool. The internal dispersion-compensating fiber roll (with 250um-coating in red) is covered with soft glue. Based on our experience, this glue layer can be easily removed by hand, in case you need use shorter fiber length. As shown at manufacture test data of similar-model in last 4 pdf links below, the green fiber pigtail is SMF, so you can easily fusion-splice this DCM with regular SMF or add fiber connector by standard fusion-splice.

In stock (17 items available)
  • US$230.00
Qty:
Add a different product to compare
    CONDITION:

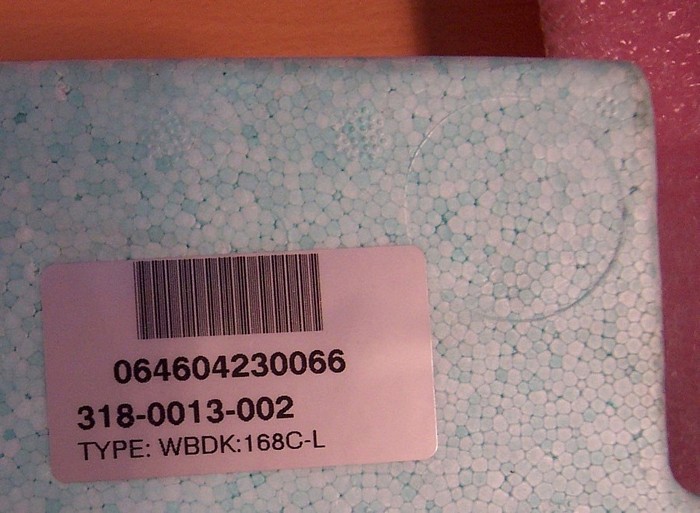

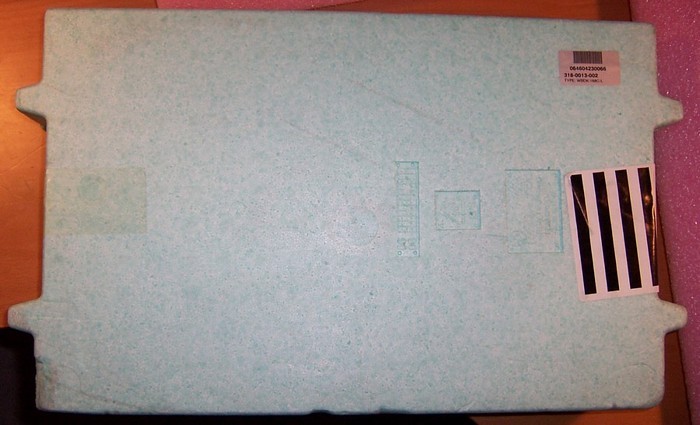

    New or seems new in original product pack. Without manufacture test data, last 4 pdf links above are from similar-model samples. If you like to reduce shipping cost, tell us, we can remove original packing.


  • DIM Weight
    4.5000 kg
  • Store Part No.
    FSC-DCM-001F
  • Manufacturers
    • Manufacturer
      OFS
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
