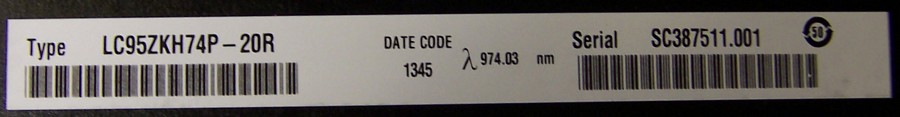

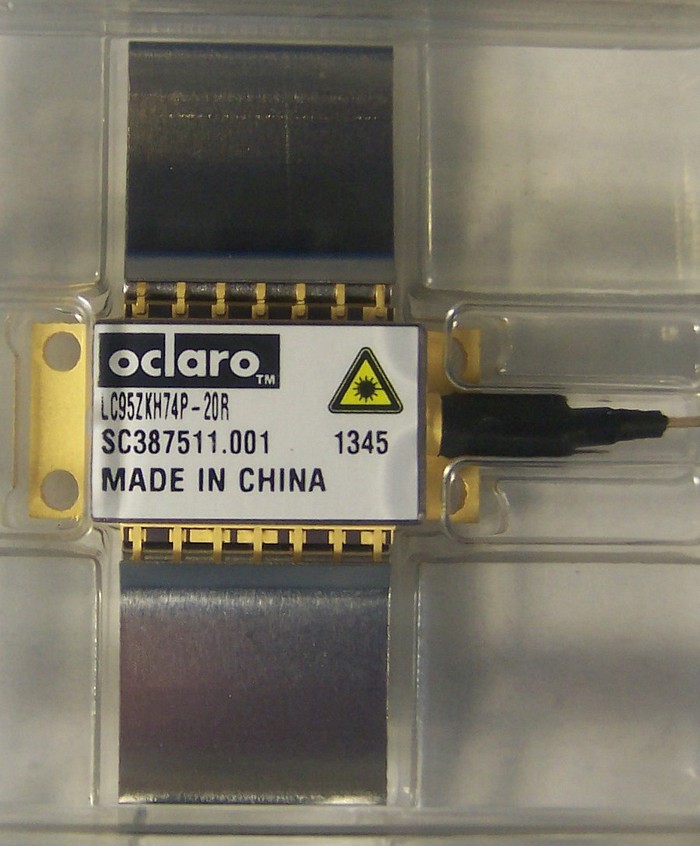

May be reserved for a buyer, pls contact us before you order. $345 each if buy 8pc. 974nm pump laser with FBG stabilizer.  >270mW kink-free output power. >245mW operating power. Oclaro model: LC95ZKH74P-20R. Brand new products directly from manufacturer
Next image
Zoom image

May be reserved for a buyer, pls contact us before you order. $345 each if buy 8pc. 974nm pump laser with FBG stabilizer. >270mW kink-free output power. >245mW operating power. Oclaro model: LC95ZKH74P-20R. Brand new products directly from manufacturer


Not rated yet
They may be reserved for a buyer, please contact us before you order. See manufacture test data at the last tho pdf links bellow. See datasheet at 1st pdf link below. 250um-coating bare fiber pigtail without connector. Fiber looks very long. For this Oclaro model: LC95ZKH74P-20R, kink-free output power would be much larger than 270mW in most cases. The 2nd page of 1st attached pdf specification shows: "Operating power assumes a 10% ageing margin", so you can use at operating power = kink free power / 1.1 For this Oclaro model: LC95ZKH74P-20R, kink-free output power of actual test data would be much larger than 270mW mostly, so customers can use them at much higher than 245mW in their actual system products. This thumb of rule is quite accepted by EDFA makers, especially for Oclaro pump lasers. Kink-free power test data are at 746mA, so max operating power could be chosen around 700mA(also about 10% margin for current). These lasers are designed as pump sources for erbium doped fiber amplifier (EDFA) applications. Processes and techniques of coupling the fiber to the laser allow high output powers that are very stable with both time and temperature. The grating is located in the pigtail to stabilize the wavelength. The LC95 series pump module utilizes a fiber Bragg grating design for enhanced wavelength and power stability performance. This product has been designed to ensure superior wavelength locking over drive current, temperature and optical feedback changes.
Out of stock
  • US$365.00
Buy more for less:
1 items US$365.00 / each
2-3 items US$358.00 / each save 2%
4-7 items US$352.00 / each save 4%
8 or more items US$345.00 / each save 5%
Add a different product to compare
    CONDITION:
    new in original product case, with actual manufacture test sheet (see last two pdf links above). Brand new products directly from manufacturer.

  • DIM Weight
    0.3900 kg
  • Store Part No.
    OSC-PUMP-980-033D
  • Manufacturers
    • Manufacturer
      Oclaro
