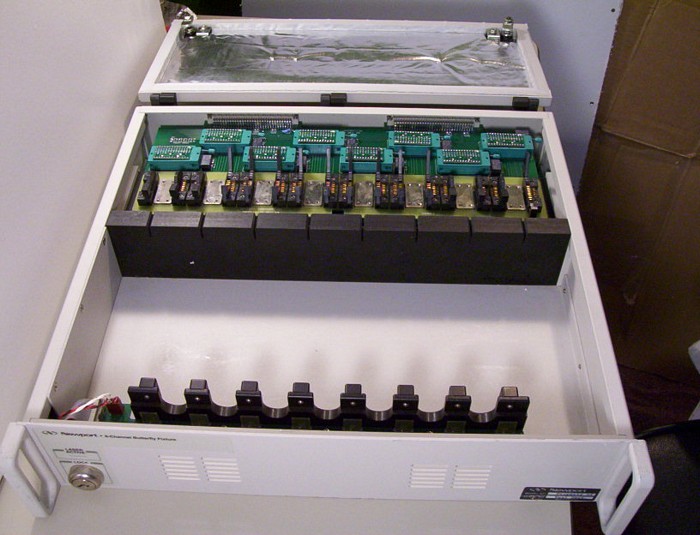

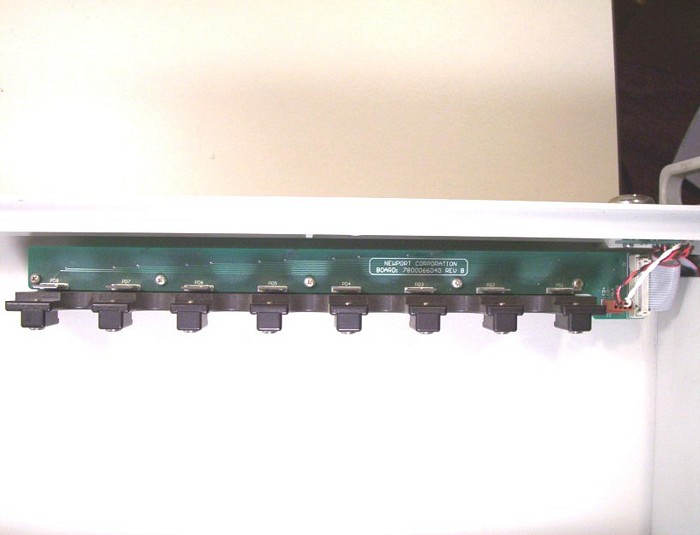

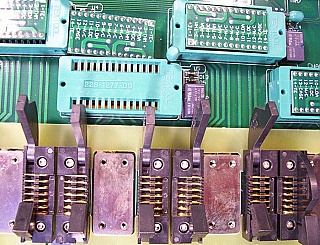

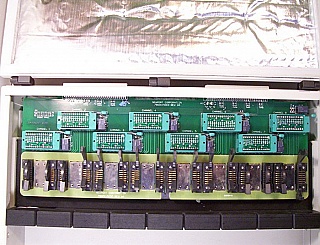

It can test 8 of 14-pin butterfly lasers at same time.It allows you to connect directly to your 8016 , 9016 , 9008 controller with the proper cables.This Newport 8-Channel Butterfly Fixture, Laser Diode Drawer, Water Jacketed with TEC with Rackmount. This drawer is unique in that it has built in 2.5mm-ferrule universal adapter at the detector to connect your butterfly packages to fiber with 2.5mm-ferrule connector. There are 8 large-area photodiodes to monitor 8 lasers. 8-photodiode array comes with a ribbon cable, but its operating wavelength is unknown.Designed For:• Testing (8) 14-pin Butterfly, Pigtail Laser Diode Packages Simultaneously• (8) User Configured Jumper Blocks for communications with system (Only two of the 8 Jumper Blocks for type-1 laser at the top of the 6th photo below are included in this sale ! ). It comes with one configuration board 708-CONF-1 (for type-1 laser) and one configuration board 708-CONF-2 (for type-2 laser), as shown at last photo below, so you can test one type-1 laser and one type-2 laser at the same time. If you need test more lasers at the same time, you can follow these two configuration boards example, easily use prototype board to make more configuration boards.It includes Newport laser sub chassis (store product code:OTI-LDC-106C), see last the 7th, 8th, 9th photos below. Pin-out is same as Newport 8-channel butterfly fixture, model 708, see 1st pdf link below.
