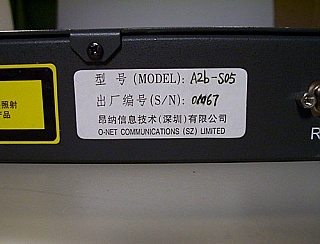

O-Net 14.5dBm flat wide-band booster over C-band. Model: A26-S05.
Next image
Zoom image

O-Net 14.5dBm flat wide-band booster over C-band. Model: A26-S05.


Not rated yet

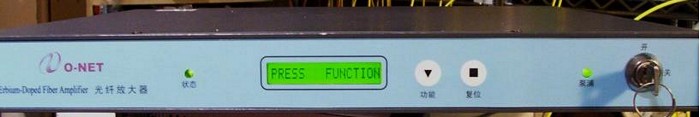

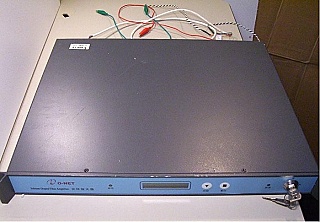

O-net systems erbium doped booster amplifier in rack mount. To use the instrument, you do not need press any button on instrument front panel (the button is only used to show the instrument infomation). FC/PC fiber interface. It requires 48V DC power supply, then it will be ready to use. See test info in condition section and photos below.
Out of stock
  • US$1100.00
Add a different product to compare
    CONDITION:

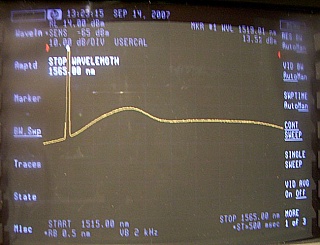

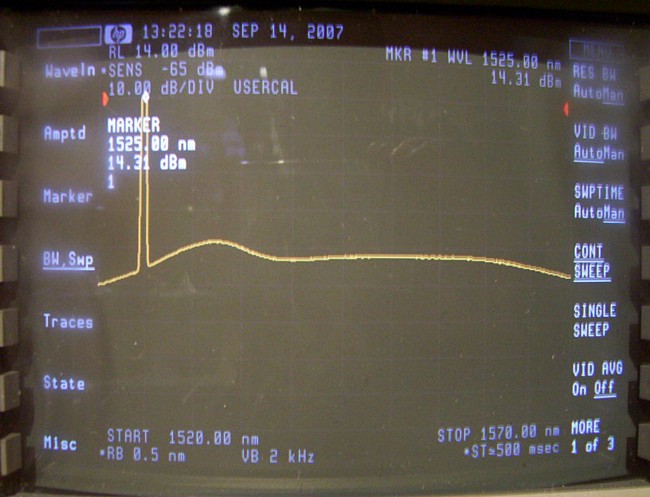

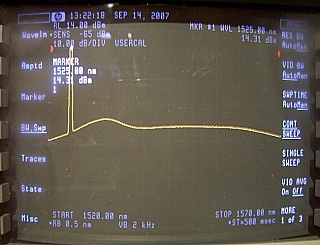

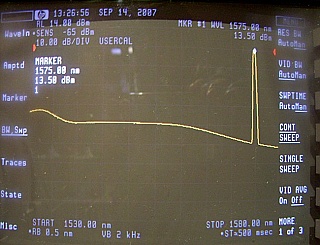

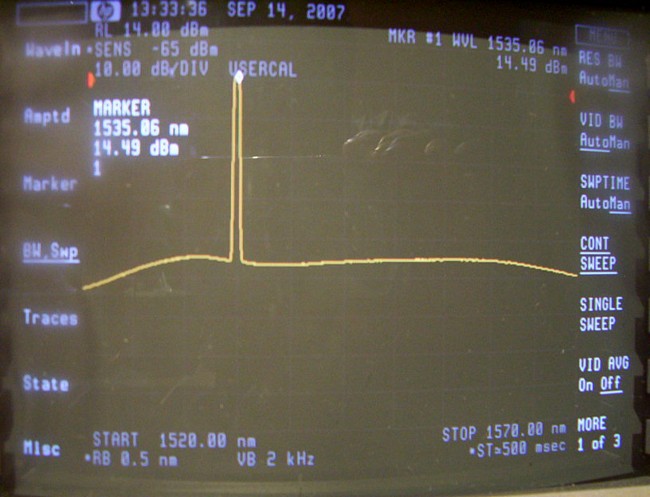

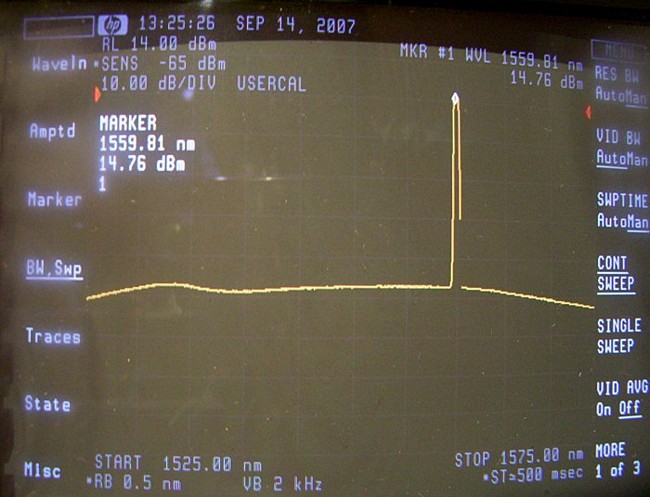

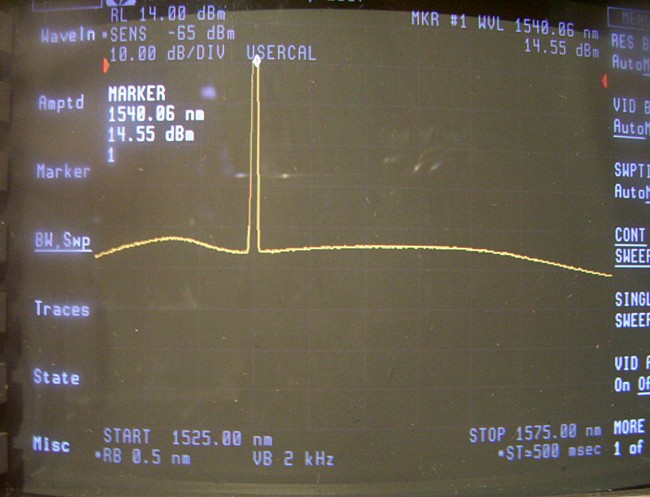

    Cosmetic condition is OK. Tested very good. Output is flat and stable around 14.5dBm over 1525-1570nm, typical flatness seems +/-0.3dB. The output power is directly tested at the optical adapter of instrument front panel. Tested by OSA and verified by two power meters in our lab. CW signal source in the test: tunable laser with internal coherence control, with external isolator, slightly higher than 5dBm output is input to the EDFA. If signal power increase, EDFA output only slightly increases.

  • DIM Weight
    5.5000 kg
  • Store Part No.
    OTI-EDFA-009C
  • Manufacturers
    • Manufacturer
      O-Net
