R195A 10 Gb/s Small Form-Factor Co-Planar APD-TIA Receiver module, product code: R195ACA2, Comcode: 0010298000. MSA Compliant. 'Sell As Is', 'No return', 'No refund'
Next image
Zoom image

R195A 10 Gb/s Small Form-Factor Co-Planar APD-TIA Receiver module, product code: R195ACA2, Comcode: 0010298000. MSA Compliant. 'Sell As Is', 'No return', 'No refund'


Not rated yet

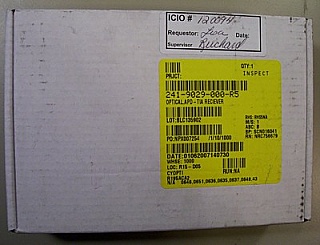

–26 dBm typical sensitivity. The R195A receiver integrates a 10 Gb/s APD and TIA into a small form-factor co-planar MSA package. It is with SM fiber. Features High data-rate capability, up to 10.7 Gb/s –26 dBm typical sensitivity –2 dBm overload typical 2000 ? typical differential gain Flat group delay Excellent linearity –5.2 volt single power supply Very small form factor The test sheet of sample 1 is on the product label, without fiber connector (we can fusion-splice for free upon your request), as shown in photos 1, 2. The test sheets of sample 2 and 3 are on the separate A4 sheets, and with SC/PC fiber connectors, as shown in photos 3 to 7 below.
Out of stock
  • US$60.00
Add a different product to compare
    CONDITION:
    It is believed they are unused in product pack. With test sheet. We have no facility or have no time to verify working condition on such RF devices. 'Sell As Is', 'No return', 'No refund'. Note: One buyer bought different sample before but he cannot use either because the device has problem or buyer did not know how to use it, so we reduced price and state this item is not refundable.

  • DIM Weight
    0.2500 kg
  • Store Part No.
    ODC-Rx-10Gb-006C
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Manufacturers
    • Manufacturer
      Cyoptics
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
