S/L band WDM coupler with Integrated isolator, WDIH749500ALR01


Not rated yet

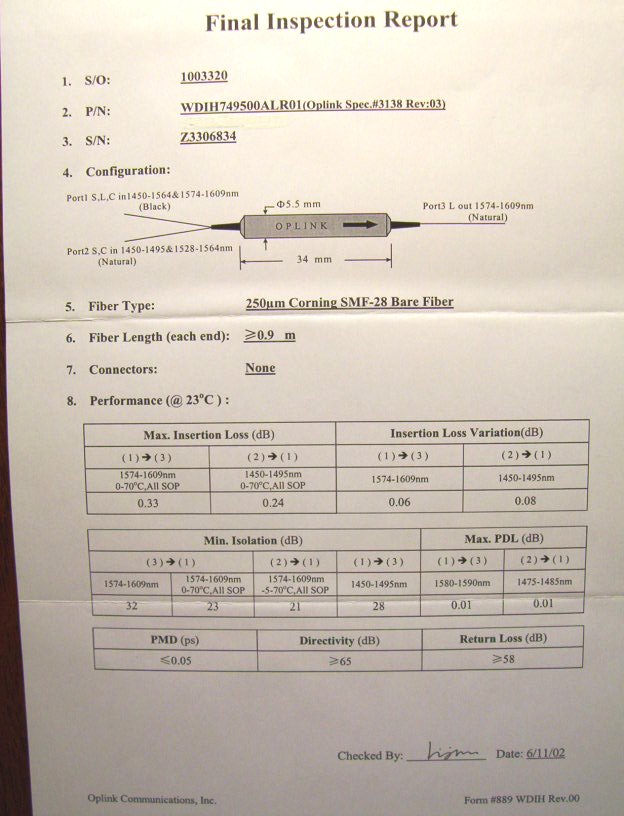

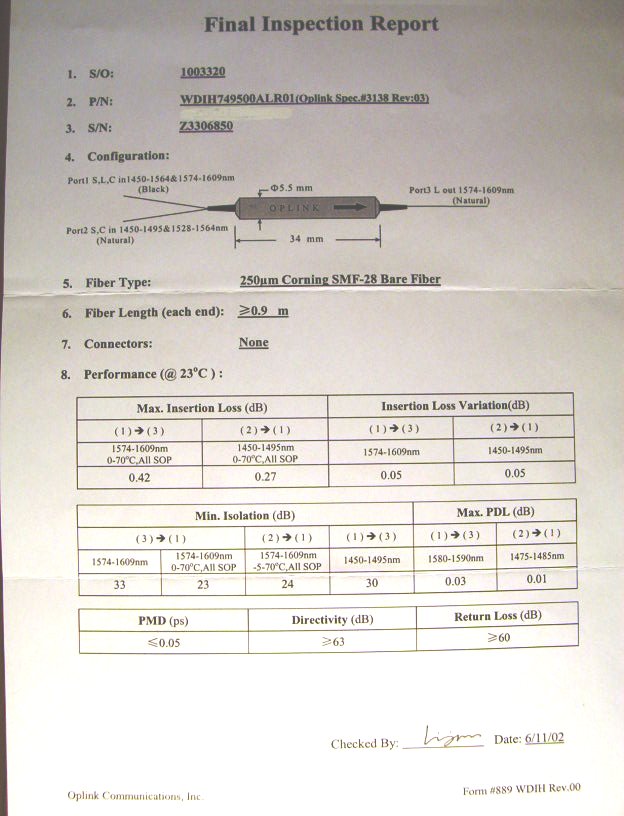

Common port 1: S+L band. Input port 2: S band, Output port 3: L band. See last photo of test sheet for detailed wavelength range. With integrated isolator from input port 1 to output port 3. Oplink P/N: WDIH749500ALR01. SMF-28 bare fiber without connectors. with original test sheet. With configuration similiar to type-B in pdf link below (for similiar model).
In stock (Only 3 left in stock)
  • US$88.00
Qty:
Add a different product to compare
    CONDITION:

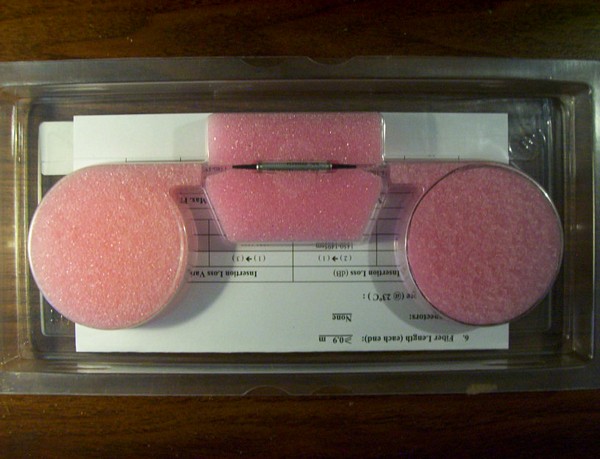

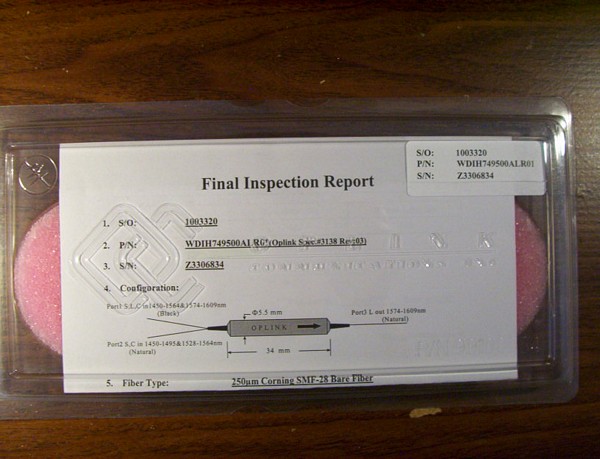

    new in original product case, with manufacture test sheet

  • DIM Weight
    0.3200 kg
  • Store Part No.
    OFC-HYBRID-006E
