Up-to-12.5Gb APD/Preamp receiver. With MU fiber connector. Fujitsu model: FRM5N141GW. Removed or to be removed from unused systems. of 1.55um 8-50GHz-channel tunable 10Gb 60km DWDM transponder (Hitachi model: HTR8806J-3-Bx).
Next image
Zoom image

Up-to-12.5Gb APD/Preamp receiver. With MU fiber connector. Fujitsu model: FRM5N141GW. Removed or to be removed from unused systems. of 1.55um 8-50GHz-channel tunable 10Gb 60km DWDM transponder (Hitachi model: HTR8806J-3-Bx).


Not rated yet

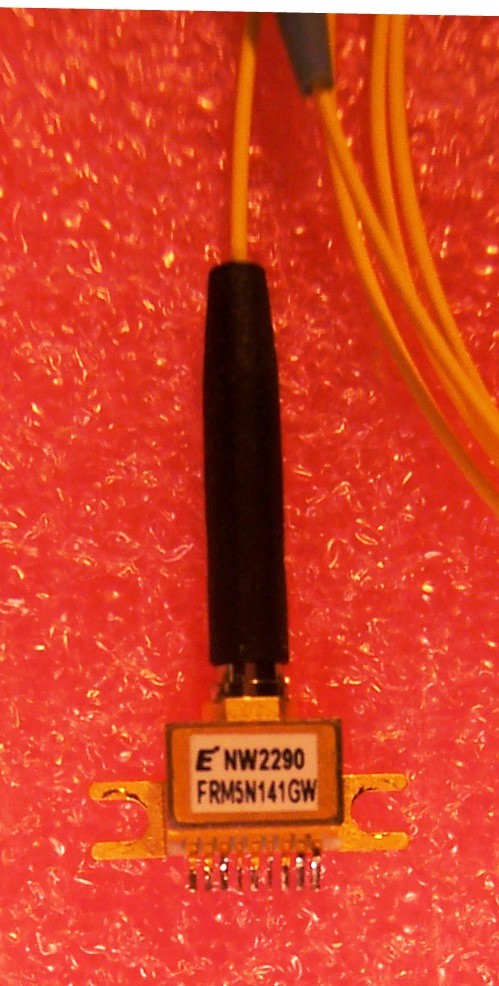

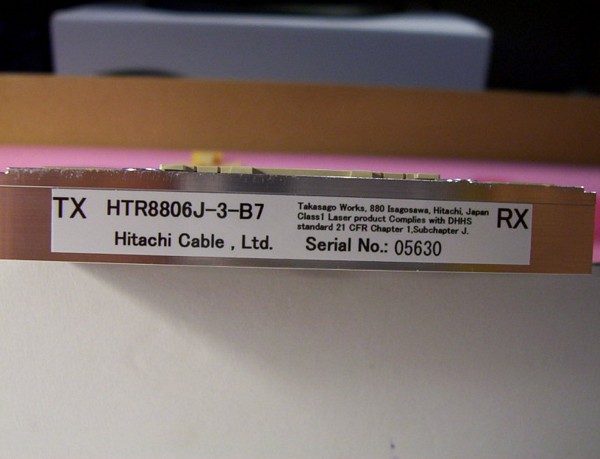

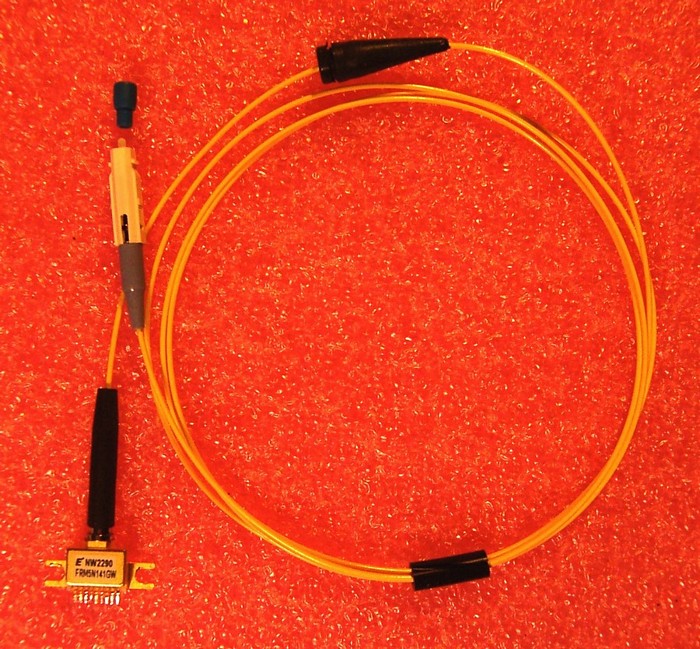

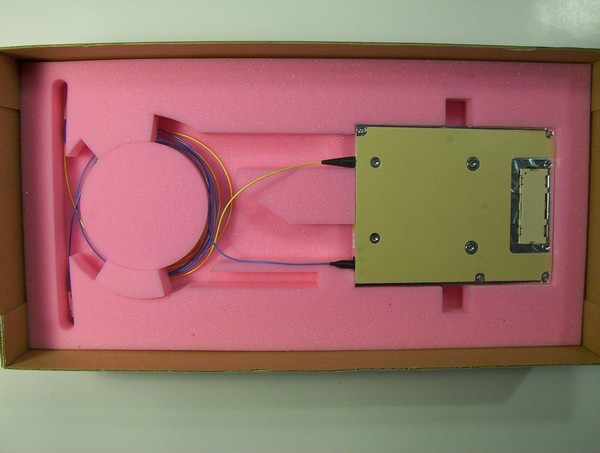

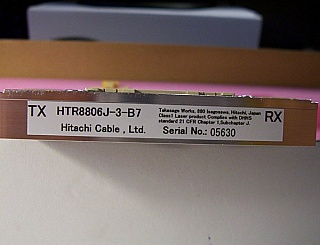

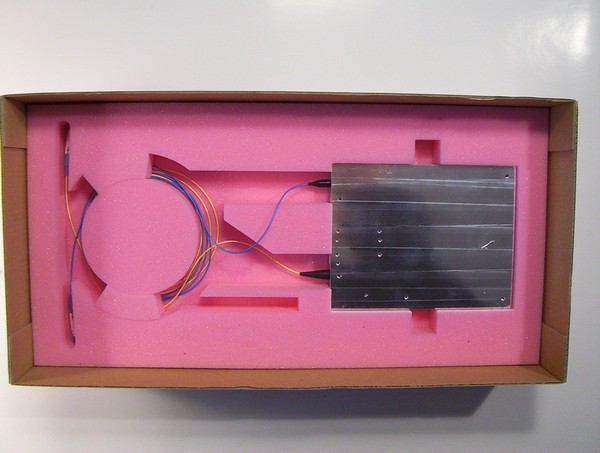

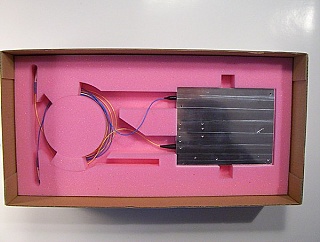

Fiber is in 900um yellow buffer with MU connector(with boot, the boot is not shown in the photo), one meter long. We will remove it from PCB of unused transponder system (Store Product Code: OMS-TRx-1550-023K). See a removed sample at 1st two photos, the electrical pins still look good. Last 3 photos are for whole transponder system.

FEATURES
• Small Form Factor Package(GW): 9 pins coplanar
• Integrated Design Optimizes Performance at Bit Rates up to 12.5Gb/s
• High Sensitivity: -27dBm (typ.)
• Electrical Differential Output
• Wide Bandwidth: 10.5GHz (typ.)
• Operates in both C and L wavelength bands

APPLICATIONS
This APD with HBT preamplifier is intended to function as an optical receiver at 1,310nm or 1,530-1,610nm in SONET, SDH, DWDM or other optical fiber systems operating up to 12.5Gb/s. The typical transimpedance (Zt) value of 1,300 OHM optimizes the total bandwidth for 10Gb/s application. The detector preamplifier is DC coupled and has an electrical differential output.

Store Part No. Choose product Qty Price Buy
ODC-Rx-10Gb-030PA Desoldered with good lead shape or still soldered on mini PCB 83 US$65.00 + -
ODC-Rx-10Gb-030P1 Desoldered with a little bent leads, you could adjust by yourself 0 US$45.00 Out of stock
Add a different product to compare
    CONDITION:

    removed or to be removed from unused transponder systems.


  • DIM Weight
    0.3200 kg
  • Store Part No.
    ODC-Rx-10Gb-030PA
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Choose product
    Desoldered with a little bent leads, you could adjust by yourself, Desoldered with good lead shape or still soldered on mini PCB
  • Manufacturers
    • Manufacturer
      Fujitsu
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
