1.55um 14-pin butterfly DFB laser module, 5mW-average 10mW-peak. SEI  model: SLT5410-QAX/GM2-Fxxx
Next image
Zoom image

1.55um 14-pin butterfly DFB laser module, 5mW-average 10mW-peak. SEI model: SLT5410-QAX/GM2-Fxxx


Not rated yet

5mW-average, 10mW-peak ( at "1 " in digital signal). With SC/APC single-mode fiber connector, 900um-buffered fiber. 14-pin butterfly package. 2.5Gb direct modulation. SLT5410, SLT5412, SLT5414, SLT5416 are designed for direct modulation with SMF. The output power of SLT5410-xA is 10mW at “1” code of signal (Ppeak) and 5mW of average of “1” code and “0” code (Pave). If you use it for CW mode(continuous wave), it would support 10mW (continuous “1” code) at worst case, but the manufacturer test sheet normally only gives data at average power 5mW. The life time may change if you use as 10mW at CW mode, see reliability report at last pdf link below.SLT5411, SLT5413 are designed for external modulation with PMF, so normal lasing condition is CW mode (continuous wave).

Wavelengths: SLT5410-QAX-GM2-F580: 1531.12nm; SLT5410-QAX-GM2-F570: 1531.90nm; SLT5410-QAX-GM2-F560: 1532.68nm; SLT5410-QAX-GM2-F540: 1534.25nm; SLT5410-QAX-GM2-F520: 1535.82nm; SLT5410-QAX-GM2-F490: 1538.19nm; SLT5410-QAX-GM2-F410: 1544.53nm; SLT5410-QAX-GM2-F390: 1546.12nm.

Store Part No. Choose center wavelength and P/N Qty Price Buy
OSC-LDS-C-200CA SLT5410-QAX-GM2-F580: 1531.12nm 3 US$230.00 + -
OSC-LDS-C-200C0 SLT5410-QAX-GM2-F570: 1531.90nm 8 US$230.00 + -
OSC-LDS-C-200C1 SLT5410-QAX-GM2-F560: 1532.68nm 2 US$230.00 + -
OSC-LDS-C-200C2 SLT5410-QAX-GM2-F540: 1534.25nm 9 US$230.00 + -
OSC-LDS-C-200C3 SLT5410-QAX-GM2-F520: 1535.82nm 6 US$230.00 + -
OSC-LDS-C-200C4 SLT5410-QAX-GM2-F490: 1538.19nm 1 US$230.00 + -
OSC-LDS-C-200C5 SLT5410-QAX-GM2-F410: 1544.53nm 5 US$240.00 + -
OSC-LDS-C-200C6 SLT5410-QAX-GM2-F390: 1546.12nm 2 US$250.00 + -
Add a different product to compare
    CONDITION:

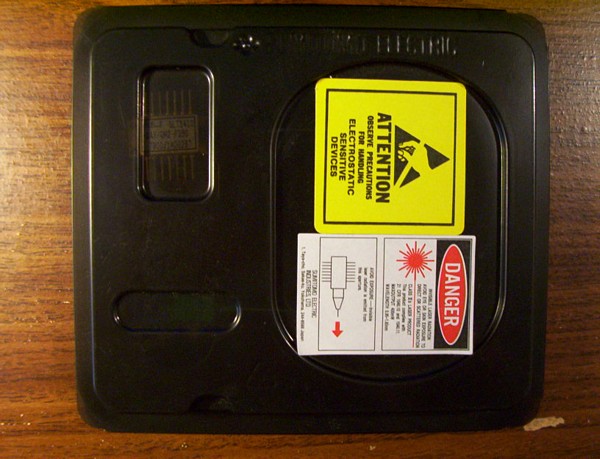

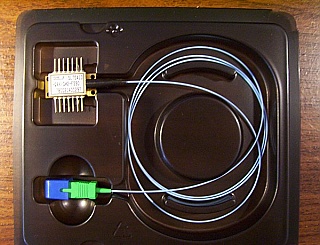

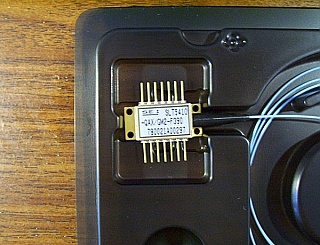

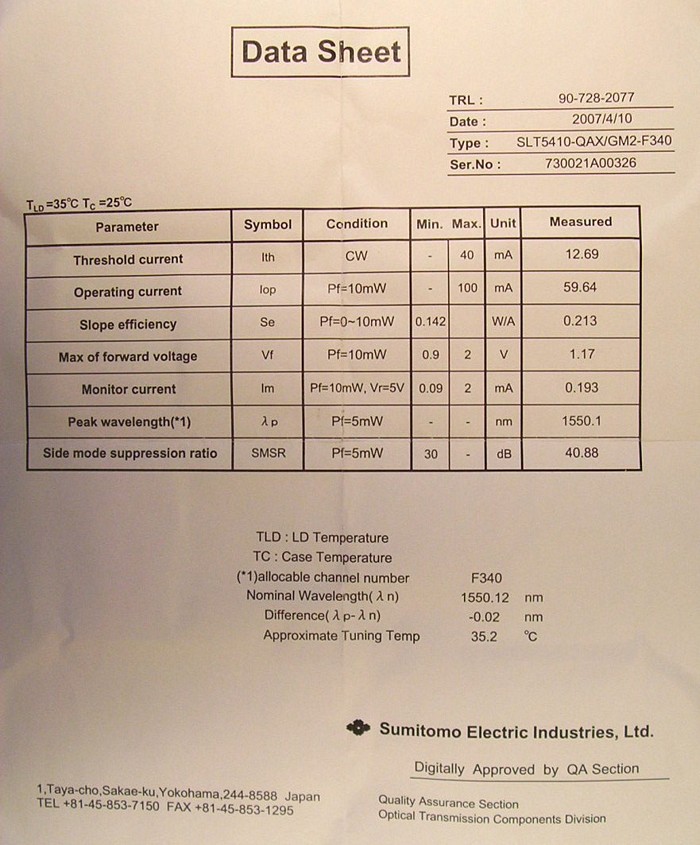

    new in original case , with actual manufacture test sheet. Two sample tested good at our lab, see our test reports at last two photos


  • DIM Weight
    0.2000 kg
  • Store Part No.
    OSC-LDS-C-200CA
  • Choose center wavelength and P/N
    SLT5410-QAX-GM2-F290: 1554.13nm (no test sheet), SLT5410-QAX-GM2-F350: 1549.32nm ($35 more), SLT5410-QAX-GM2-F340: 1550.12nm ($50 more), SLT5410-QAX-GM2-F390: 1546.12nm, SLT5410-QAX-GM2-F410: 1544.53nm, SLT5410-QAX-GM2-F490: 1538.19nm, SLT5410-QAX-GM2-F520: 1535.82nm, SLT5410-QAX-GM2-F540: 1534.25nm, SLT5410-QAX-GM2-F560: 1532.68nm, SLT5410-QAX-GM2-F570: 1531.90nm, SLT5410-QAX-GM2-F580: 1531.12nm
  • Manufacturers
    • Manufacturer
      Sumitomo
