1.55um (1547-1560nm) 63mW 14-pin butterfly DFB laser modules. JDS model: CQF938/600.
Next image
Zoom image

1.55um (1547-1560nm) 63mW 14-pin butterfly DFB laser modules. JDS model: CQF938/600.


Not rated yet

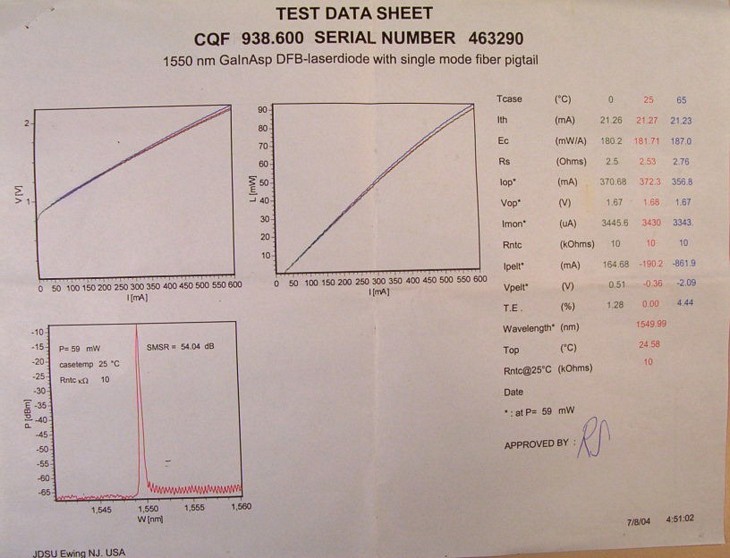

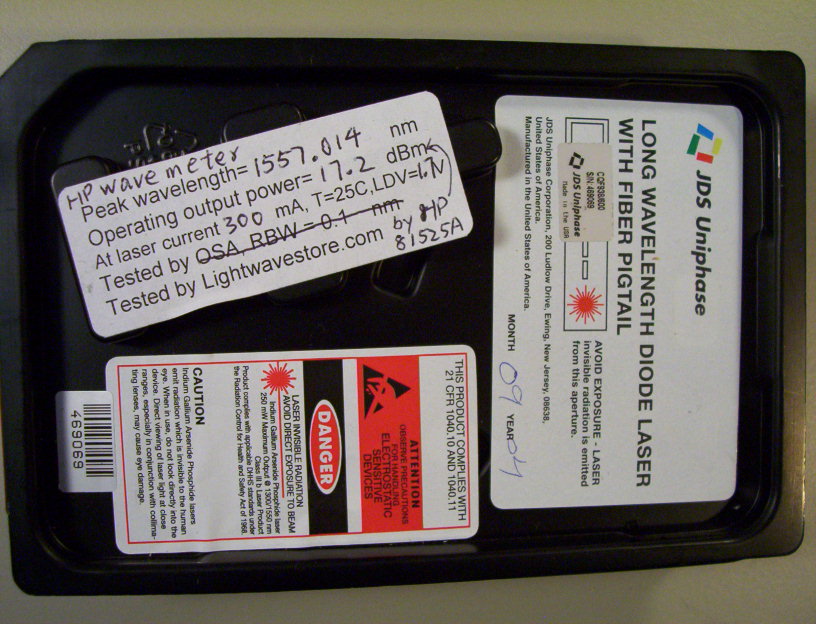

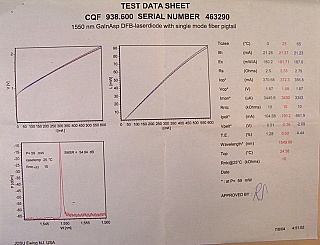

Warning: The test sheet of last photo below is from sold samples only. No actual test sheet for this item.Lasing wavelength in specification: min: 1547nm, typical: 1555nm, max: 1560nm. 63mW operating output power.Tested wavelength is 1557 or 1558nm at our lab. 63mW is vrified at our lab. Unused in original packing without test sheet. With 2.5mm ferrule. Tested good in our lab. See pdf datasheet link below for more info.900um-buffered fiber near laser body. 400um-coating PMF near fiber ferule(400um-coating is verified in our lab), terminated with 2.5mm PMF ferule (PMF is sample verified by fiber scope in our lab).
Out of stock
  • US$780.00
Add a different product to compare
    CONDITION:
    new in original pack, without test sheet.

  • DIM Weight
    0.2500 kg
  • Store Part No.
    OSC-LDPM-C-420C
  • Manufacturers
    • Manufacturer
      jds
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
